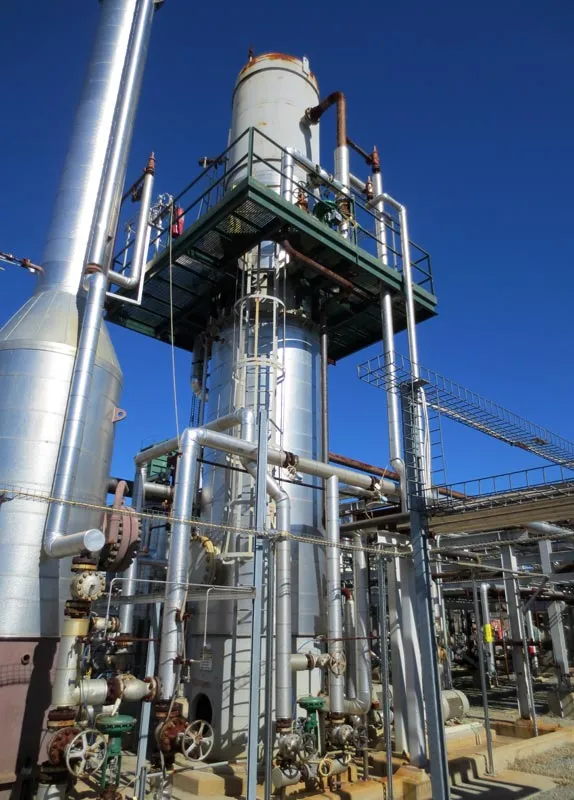

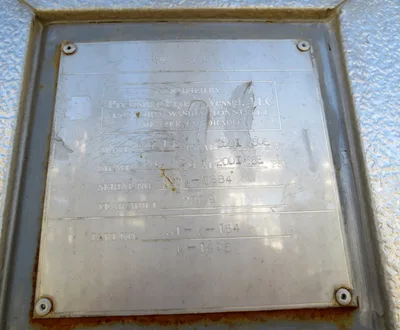

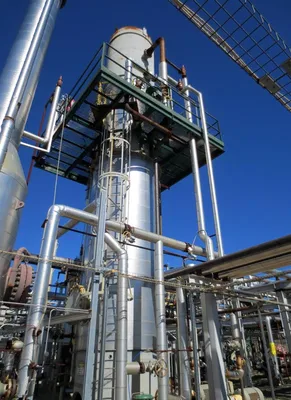

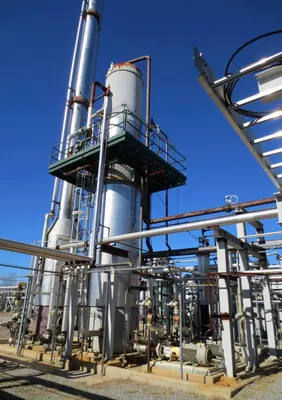

Flash drum, Manufactured by Precision Pipe & Vessel in 2009 - ran 42 days only - like new. Physical size 72\" dia x 11\'-6\" . Has demister pad at top of vessel. Has a 5\'-6\" skirt on bottom and a 4 ft top skirt for OAH of20\'-8\" tall. Inlet 4\", vapor outlet 1-1/2\", liquid outlet 4\". ASME rated MAWP 200/FV at 250F. Nat\'l Bd# 879, s/n CV-0884. Material: carbon steel SA-516-70 with 2\" insulation and ss covering. Note: Photos show both the flash drums stacked on top of each other. Part of module fp311. Used as Flash Drum, High Pressure
Quantity: 1
Capacity: 3,075 Gallons
Width/Dia: 6 Feet
Height: 11.5 Feet
Weight: 15,500
Size: 6 ft dia x 20'-8" OAH
Material: carbon steel
