Heat Exchanger 5700 sf

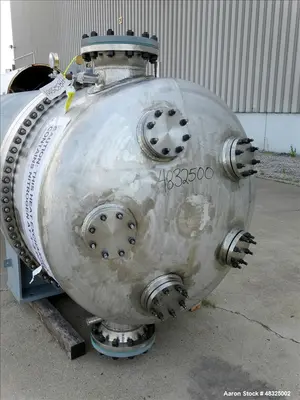

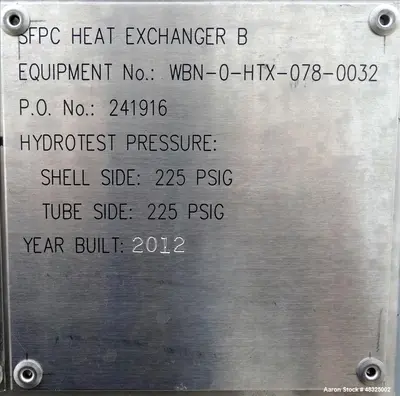

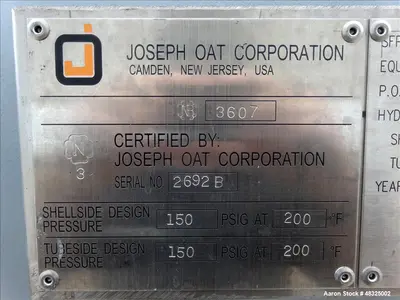

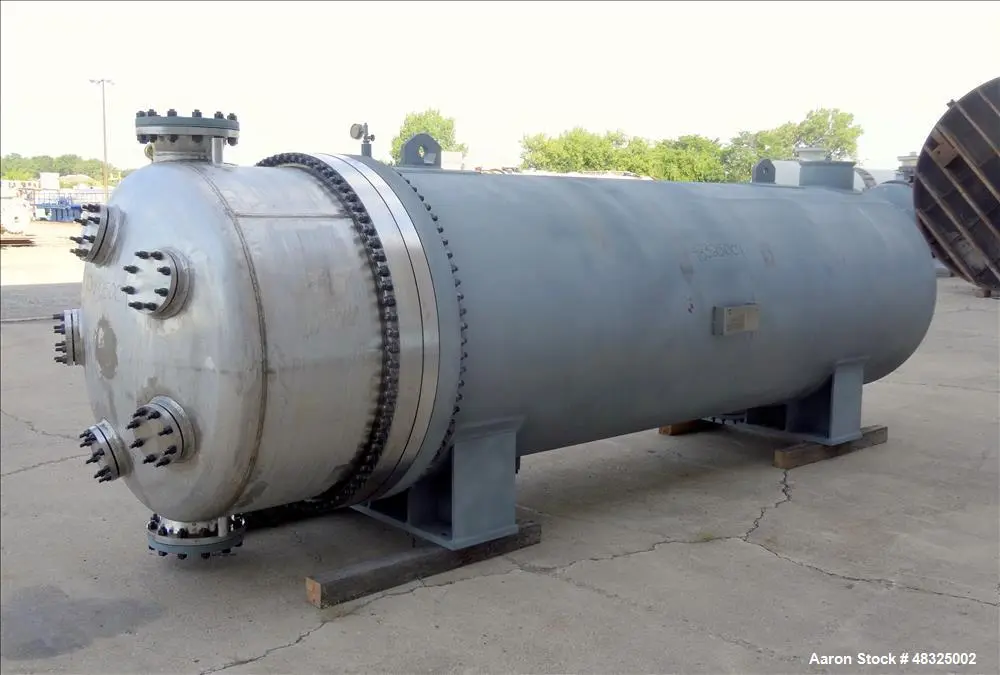

Unused- Joseph Oat Corporation 8 Pass U Tube Shell & Tube Heat Exchanger, 5700 Square Feet, 8 Pass U Tube. ASME \"N\" Stamp NB # 3607. Horizontal. Carbon steel shell rated MAWP 150 psi at 200 degrees F, diameter 55.5\" OD. Tubes: (1194) 3/4\" Diameter x 11\' long; 304L stainless steel tubes rated MAWP 150 psi at 200 degrees F. 304L Stainless steel head and tubesheets. Openings for shell (2) 14\", for tubes (2) 10\". Mounted on saddles. Serial # 2692B, Built 2012.

Quantity: 1
Capacity: 5,700 Sq Ft
Width/Dia: 64 Inches
Length: 224 Inches
Height: 80 Inches
Weight: 26,900 Pounds
Material: ss304L
Heat Exchanger: Shell & Tube
