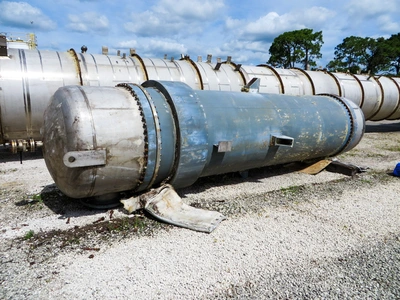

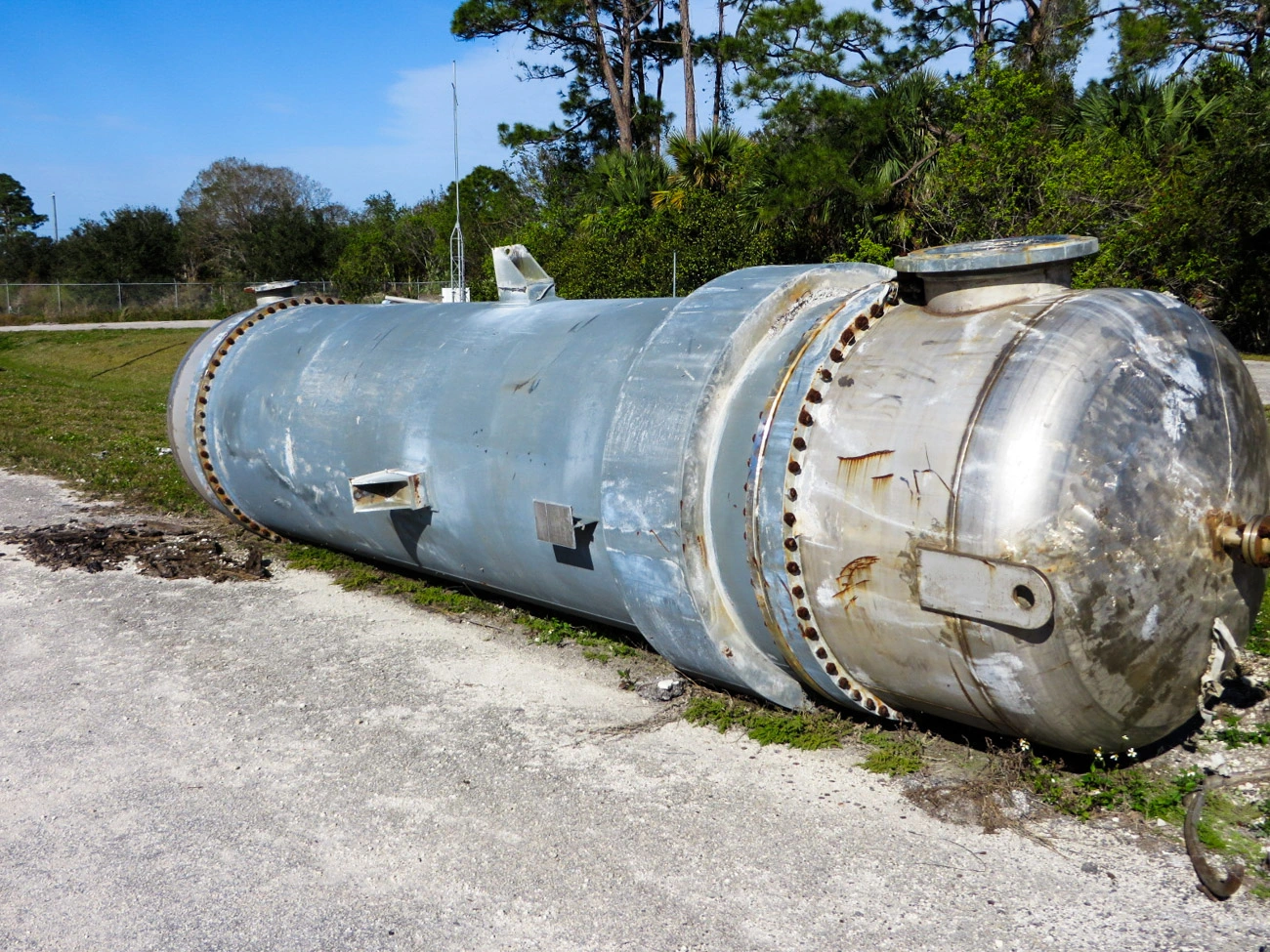

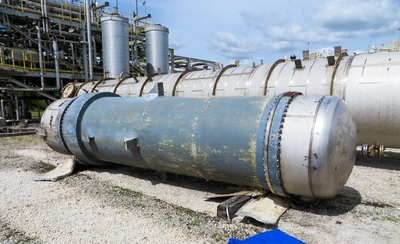

Reboiler Heat Exchanger 7062 sf

### Rectifier Reboiler Heat Exchanger 7062 sf ###

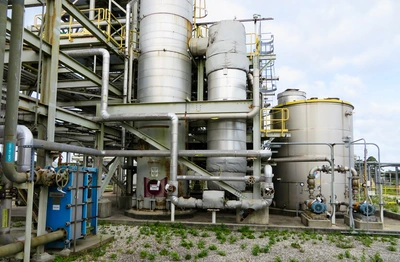

Like new. Reboiler is from an cellulosic ethanol distillation pilot plant project. Total production of ethanol was 20,000 gallons, so very little time in operation.
**Specifications**

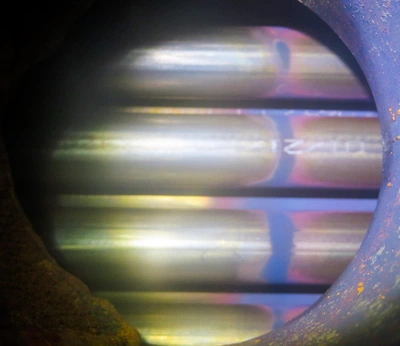

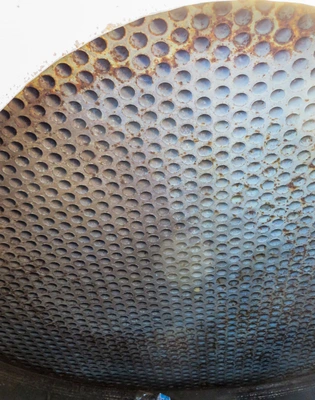

- 304L SS tubes and tube sheets, carbon steel shell jacket for steam

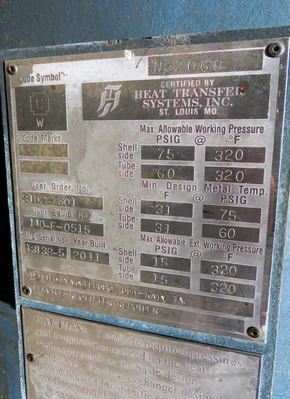

- ASME NB# 2068. Designed for Shell 75psi/FV @ 320F, Tubes 60psi/FV @ 320F
- Exchanger Configuration: BEM. Vertical Orientation but can be mounted on horizontal
- Size 57\" Diameter, 16\'-0: shell length (over all length 23\"-8\")
Removed - ready to load. Price includes rigging and loading.

Quantity: 1
Capacity: 7,062 Sq Ft
Width/Dia: 57 Inches
Length: 16 Feet
Weight: 31,000 Pounds
Material: ss304L
Heat Exchanger: Shell & Tube
Tema Class: BEM
