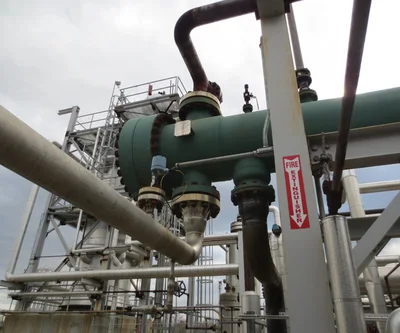

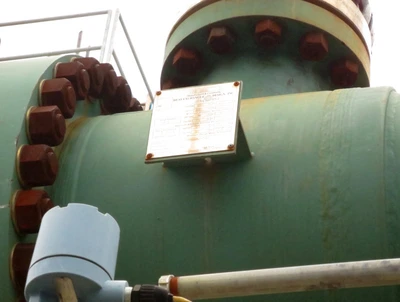

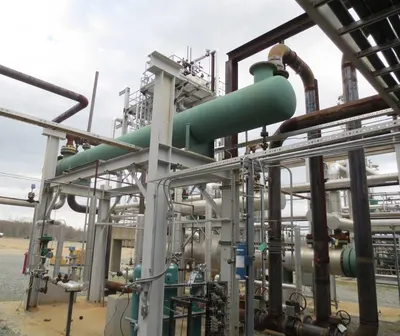

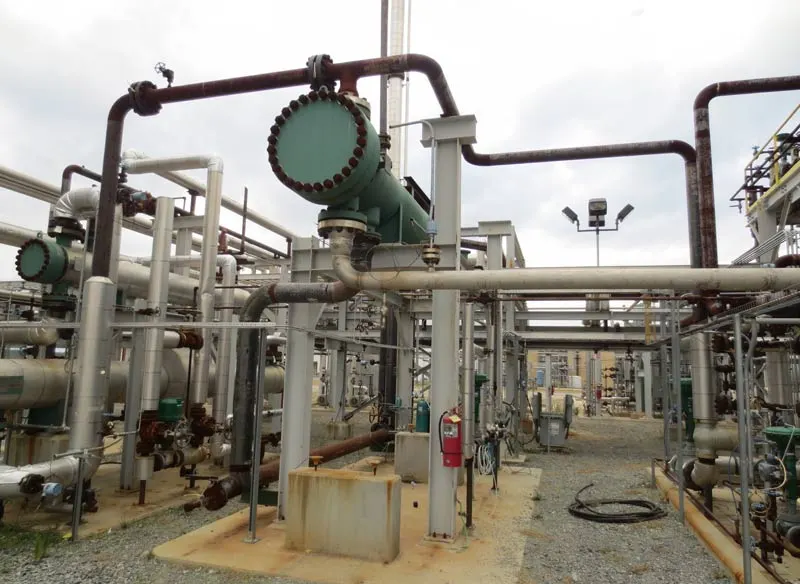

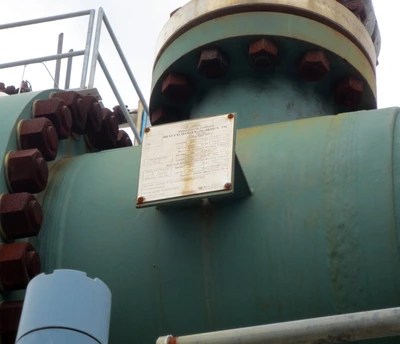

Heat exchanger shell & tube TEMA AEU design. U-tube type, Heat transfer area 2151 sq ft, ASME MAWP tubes 1650 psig/FV at 385F, shell 150 psig at 250F. Nat\'l Bd # 2932, serial# 4017C. Rated for 98 MMBTU/hr, Water 90/110F, Reactor Effluent 300/105F. Material 304L stainless steel tubes/CS shell. There are 325 tubes sized 5/8\" OD with 0.065\" wall, Physical size 25\" dia x 20 ft. Manufactured by Heat Exchanger Design (HED) in 2009. Physical weight 16,620 pounds. Ran 42 days - like new. We have U-1A - see Links. (Part of module fp413)
Quantity: 1
Capacity: 2,151 Sq Ft
Width/Dia: 2.1 Feet
Height: 20 Feet
Weight: 16,620 Pounds
Size: 25" dia x 20 ft
Material: ss304L
Heat Exchanger: Shell & Tube
Tema Class: AEU
