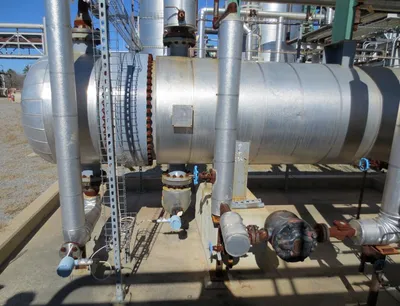

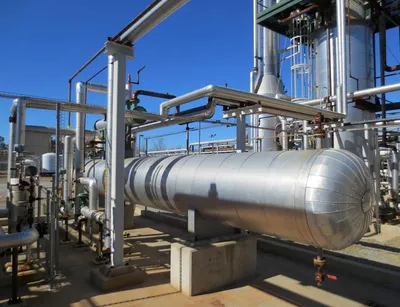

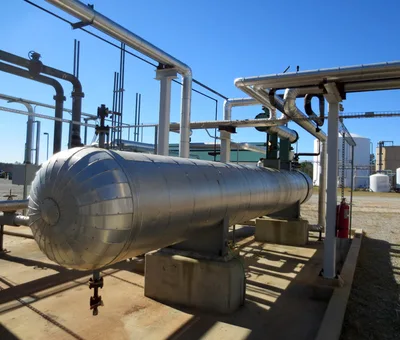

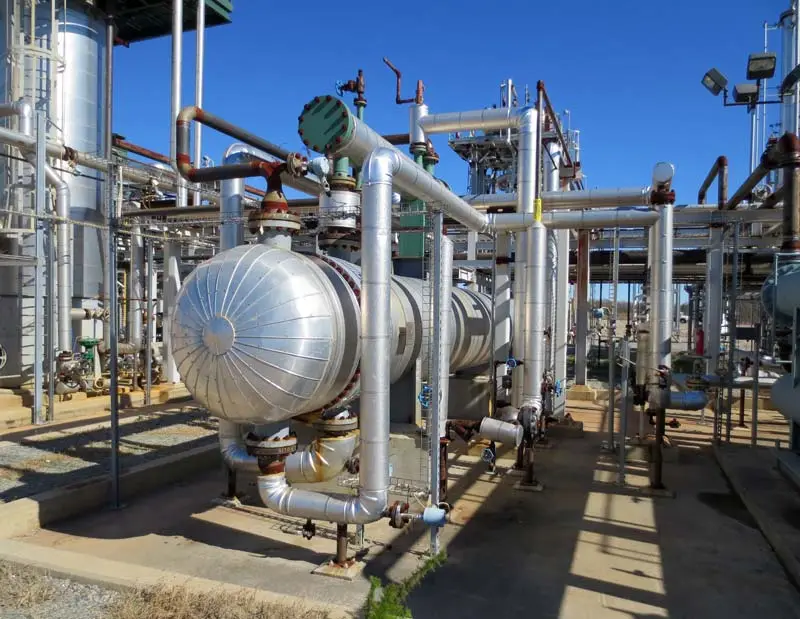

USED 2009 HEAT EXCHANGER DESIGN INC. TEMA BFU 450 PSIG

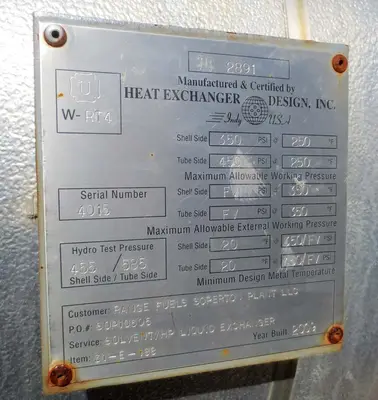

Shell & tube heat exchanger, Heat transfer area 5,861 sq ft, Physical size 38\" dia X 28 ft long. Material shell KCS (killed carbon steel)/ tubes carbon steel SA179. Rated at 450 psig 4.02 MMBTU/hr, HP Solvent 36/102, Lean Solvent 121/46F. TEMA type BFU, 2-pass shell side, 2-pass tube side. Manufactured by Heat Exchanger Design in 2009 - ran only 42 days - like new. ASME MAWP 450/FV at 350F, Nat\'l Bd# 2891, s/n 4015. Has (611) 3/4\" tubes. We have drawings and U-1A - see Links. Used as Solvent / High Pressure Liquid Exchanger on fp311.

Quantity: 1
Capacity: 5,861 Sq Ft
Width/Dia: 3.2 Feet
Height: 28 Feet
Weight: 38,250 Pounds
Size: 38" dia x 28 ft
Material: carbon steel
Heat Exchanger: Shell & Tube
Tema Class: BFU
