USED 2009 PRECISION PIPE & VESSEL NEN 800 PSIG

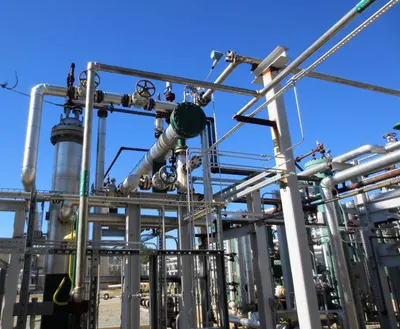

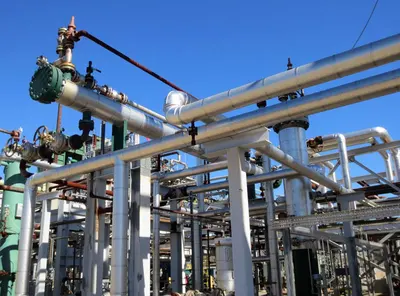

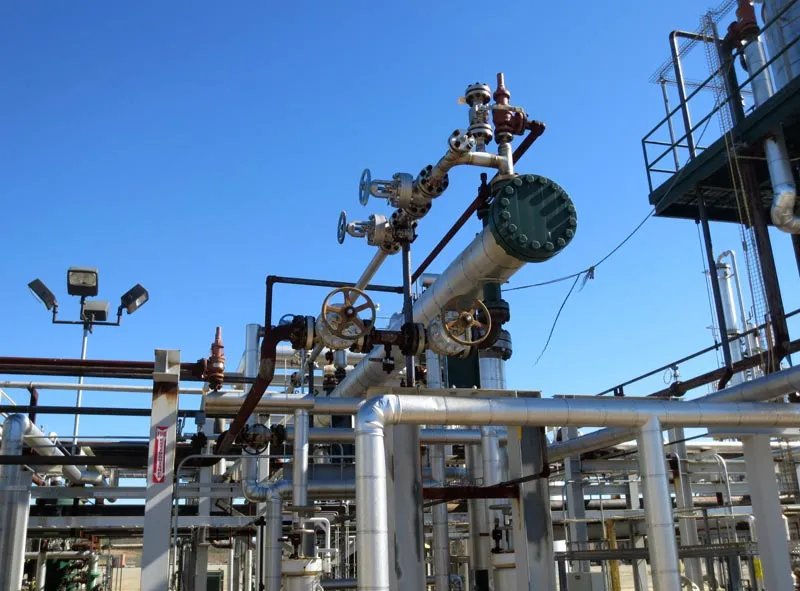

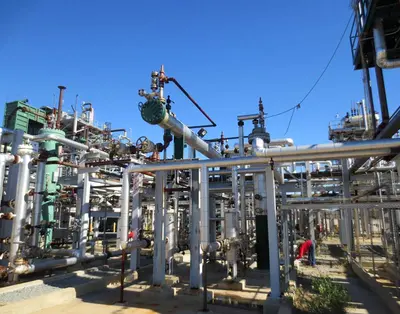

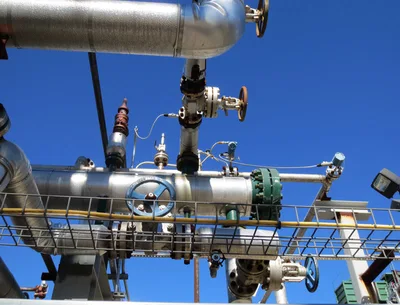

Shell & Tube heat exchanger, Rated at 800 psi 0.364 MMBTU/hr, Treated Gas 21/100F, Raw Syn Gas 110/64F. Shell & tube, TEMA design NEN, 280 sq ft, 0.75/0.065, 3237 #. Physical size 10 in dia x 23 ft 5 1/8 inch long. On channel saddles 2\'-6\". ASME MAWP 800/Fv at 350F shell, 800/fv at 250F tubes. Manufactured by Precision Pipe & Vessel (PPV) in 2009. Material tubes 304L Stainless/shell CS. Insulated calcium silicate. See drawing in Links. Used for Gas Clean-up Feed/Effluent Exchanger. Part of fp311. Still installed - will be difficult to remove.

Quantity: 1
Capacity: 280 Sq Ft
Width/Dia: 10 Inches
Height: 23.4 Feet
Weight: 3,237 Pounds
Pressure: 800 psig
Size: 10" x 23.4 ft
Material: ss304
Heat Exchanger: Shell & Tube
Tema Class: NEN
