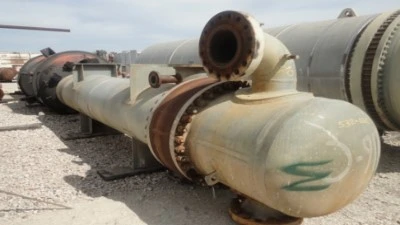

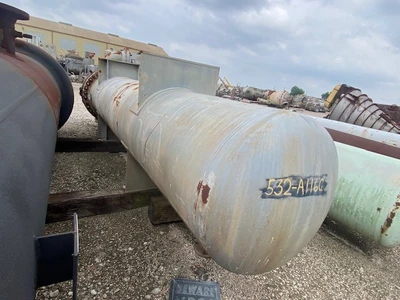

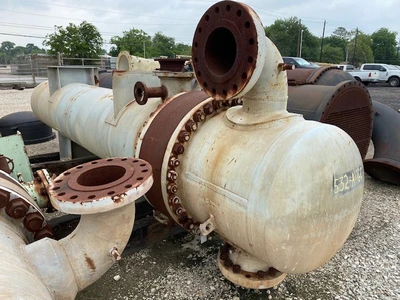

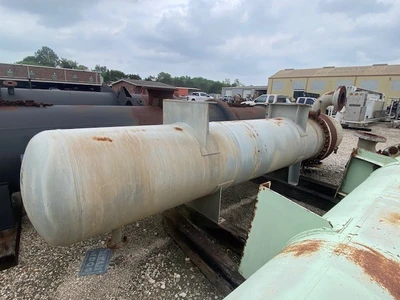

USED 1976 THERMOTRAN 33-6-156

Heat Exchanger, Mfg by Thermotran. Tube & shell material both are carbon steel. MAWP: Shell Pressure 150 psig at 150F. Tube Pressure 1040 psig at 355F. Arrangement is 2-pass shell and 2-pass tubes. Has 340 tubes 0.75\" dia x13 feet. Heat exchanger overall length 18.75 feet. Shell 2 ft-10\" dia x 1/2 inch thick. ASME NB# 139, S/N H-1441. Inlet/outlet 10\". Designed for 306,500 #/hr water shell side at 630 gpm. Designed for syngas tubeside 107,813 #/hr. Heat exchanged 9.2 MMBTU/hr. See link for U-1 and heat exchanger drawing.

Quantity: 1
Capacity: 1,819 Sq Ft
Width/Dia: 34 Inches
Length: 18.75 Feet
Weight: 15,900 Pounds
Pressure: 1,040 psig
Size: 33-6-156
Material: carbon steel
Heat Exchanger: Shell & Tube
Tema Class: BFU
