USED CHAMPION PROCESS CPHF19-3612

### Cartridge Filter Vessel ###

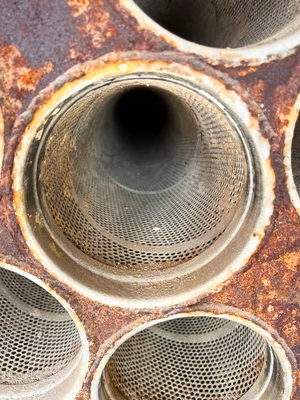

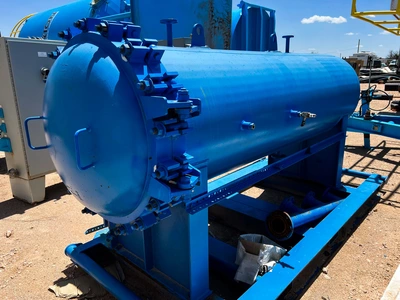

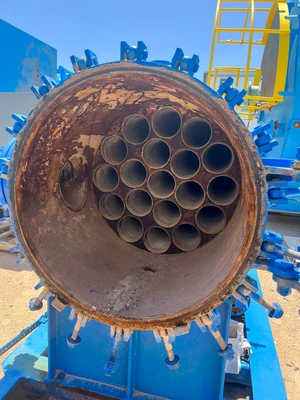

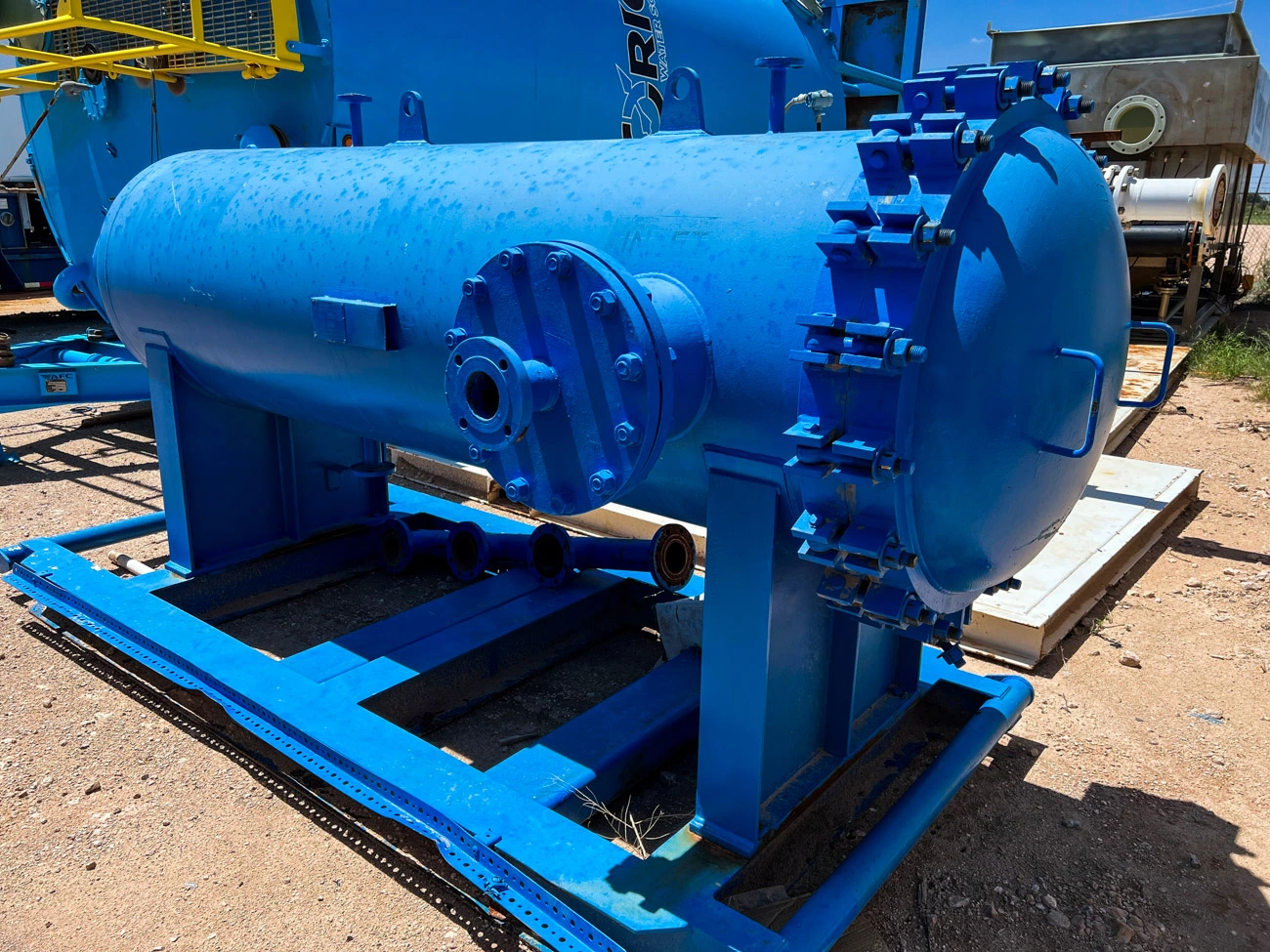

Horizontal filter vessel with 19 elements for coalescing or particle cartridges. Max flow 7,000 gpm gasoline and 5,000 gpm water. ASME MAWP 200 psig at 100F.. Size 36\" dia with 12\" Inlet. For 6\" dia cartridge filters of 40\", 60\" & 80\" long. Particle filter cartridges are normally 6\" dia x 80\" long. Coalescing cartridges are normally 6\" dia x 40\" long. On saddles and steel skid. Used but in good condition.

Quantity: 1
Capacity: 5,000 gpm
Width/Dia: 60 Inches
Length: 142 Inches
Height: 76 Inches
Weight: 3,500 Pounds
