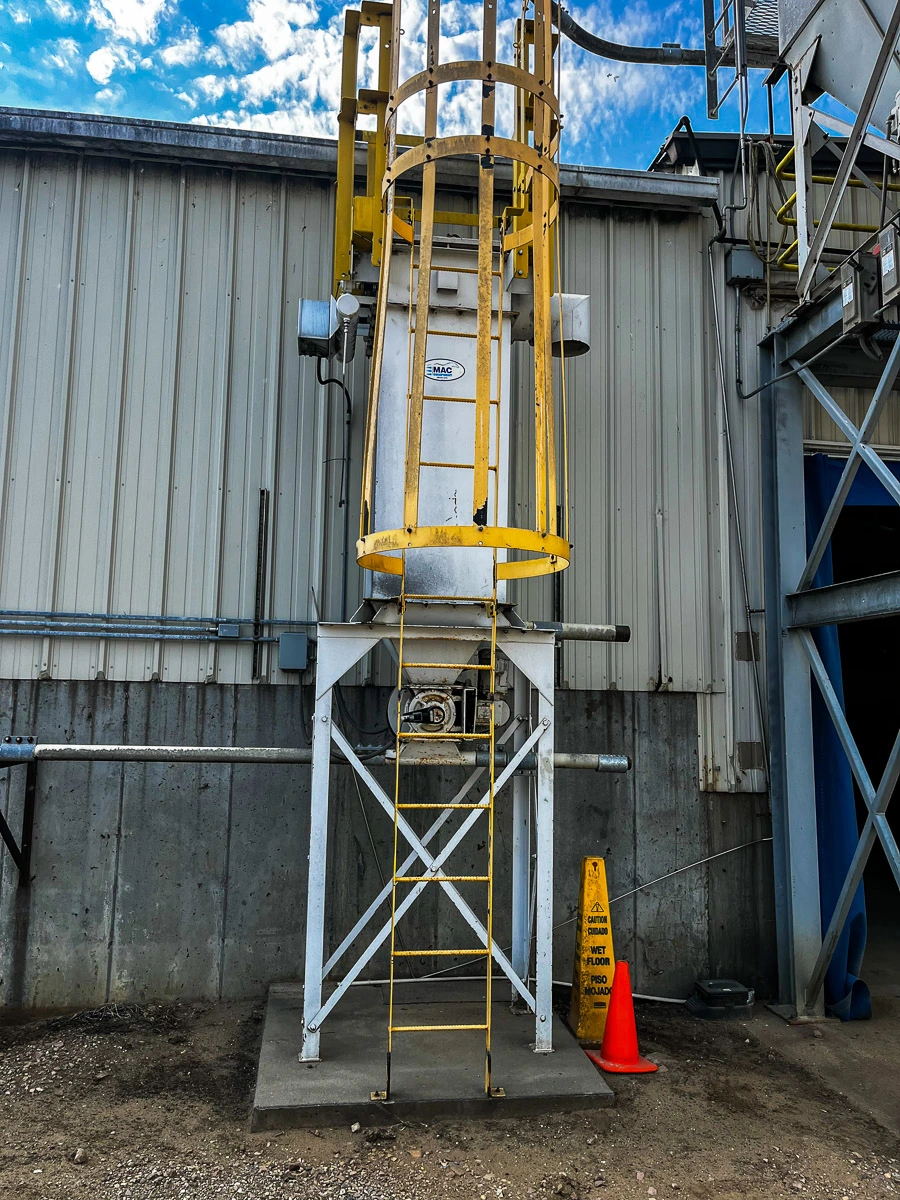

### MAC Baghouse Dust Collector - very low hours ###

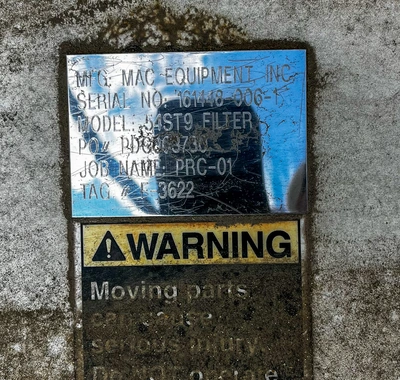

MAC Baghouse dust collector. Model 54ST9. Serial # 161448-006-1. Used only for about a week for a research project - idled outside.

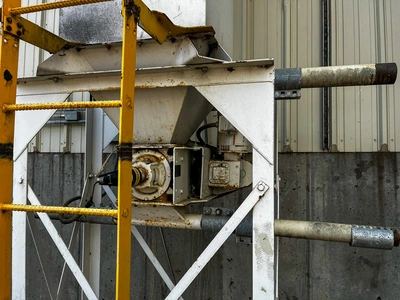

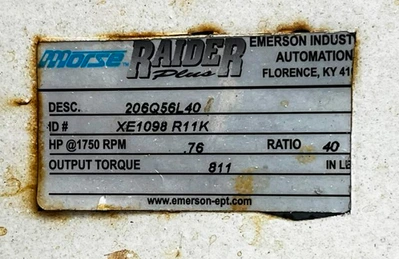

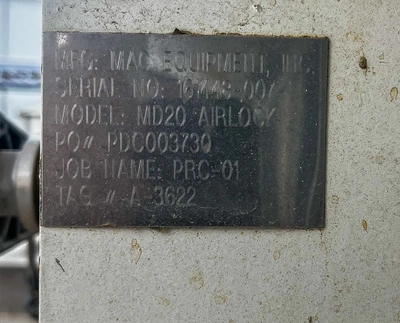

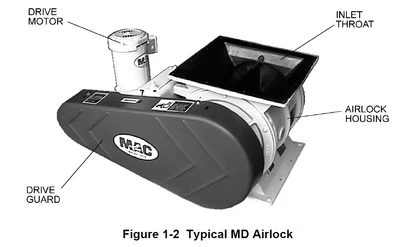

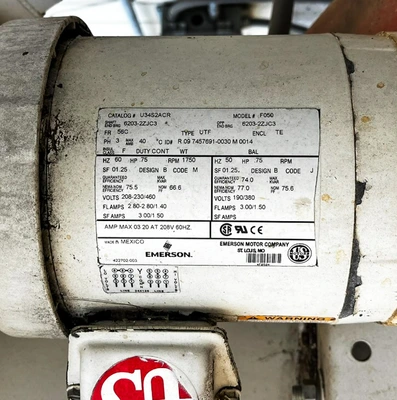

- Mounted on structural frame with MAC MD20 airlock and 0.75 HP motor.
- Filter includes (9) 16 oz polyester-dacron bags w/ ground wire and galvanized cages providing 62 sq ft surface. Bags change from clean air side.
- Air to dust ratio of 4:1 at 250 cfm.
- Baghouse dimensions 24\" x 24\" x 6 ft tall
- Interior contact areas coated with epoxy
- See drawing in Links

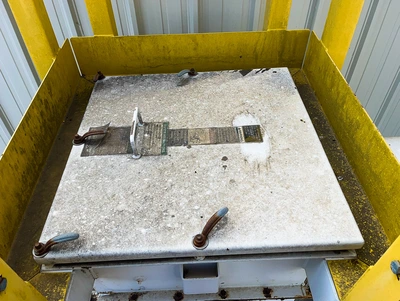

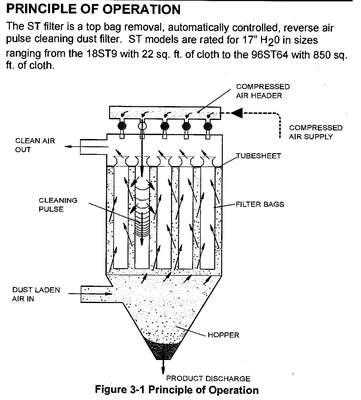

Type ST dust collectors utilize bag media. A Mac baghouse type ST is a square baghouse-type dust collector that uses fabric filters to remove dust, particulates, and pollution from the air. (Square Top-Removal) - top removal. The filter media is installed and removed through the clean air plenum of the filter. Has a hinged top door to allow clean air access to the filter media
Quantity: 1
Capacity: 250 acfm
Width/Dia: 43 Inches
Length: 24 Inches
Height: 197 Inches
Weight: 2,500 Pounds
Material: carbon steel
