### Oil Dryer - Vacuum Dehydration Unit ###
**Wintek Corporation Dehydration Unit. Like NEW - only 31 run hours!!
Evap Rate up to 23 lb/hr water**

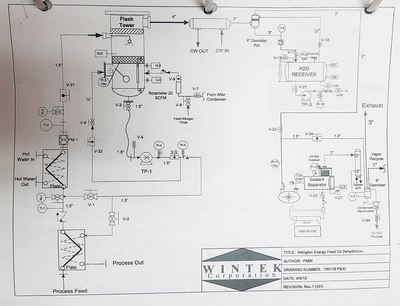

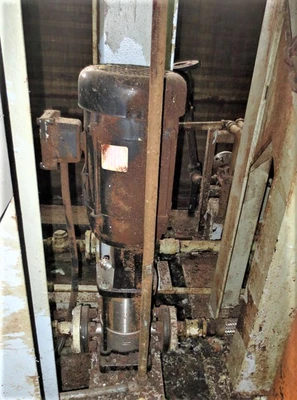

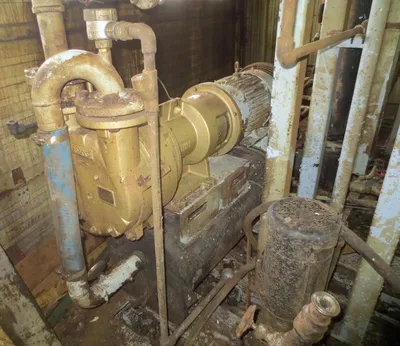

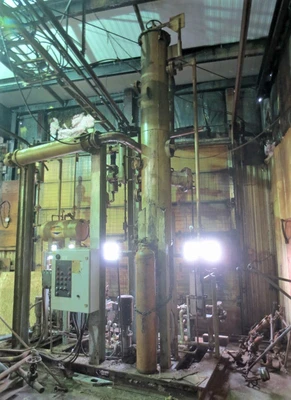

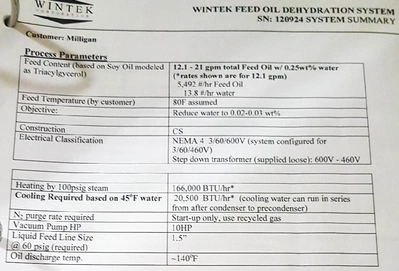

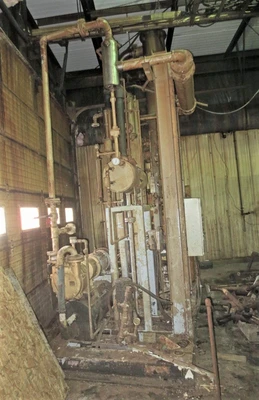

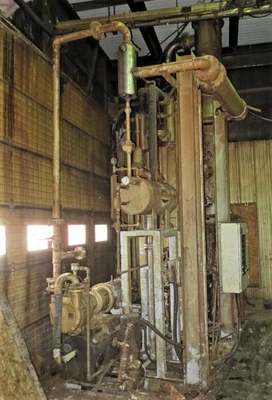

This DeHy is a flash tower with condensate/receiver and vacuum system. Capacity feed content is designed for 12 to 21 gpm feed oil (5,492 to 10,000 lbs/hr) with up to 0.25% water and will dry to 0.02% water - based on soy oil modeled as a triglyceride. System consists of feed heat exchanger, a flash tank, a transfer pump, a pre-condenser, receiver tank with transfer pump, and a 10HP liquid ring vacuum system. Flash tower is cs 16 inch dia. Dehydration Unit is used to remove the water from your feed oil. When hot feed oil is exposed to a high vacuum, the water will flash into water vapor and be removed by the vacuum system. This system is skidded - removed and ready to load. Loading fee may apply depending on customer requirements and destination. See complete dehy design specs in attached file (link).

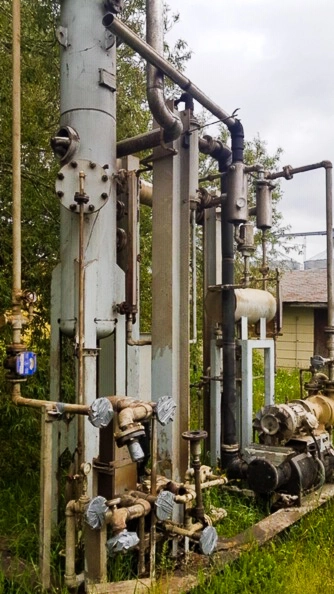

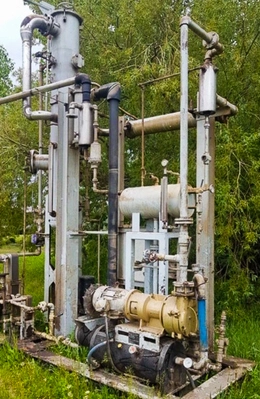

NOTE: This unit only has 31 working hours on it and was in working order in a biodiesel plant when idled in 2018. It has been moved outside to a laydown yard in 2023. Unit will need reconditioning. The manufacturer, Wintek, still supports this unit and can recondition it in their NJ factory.
Quantity: 1
Capacity: 21 gpm
