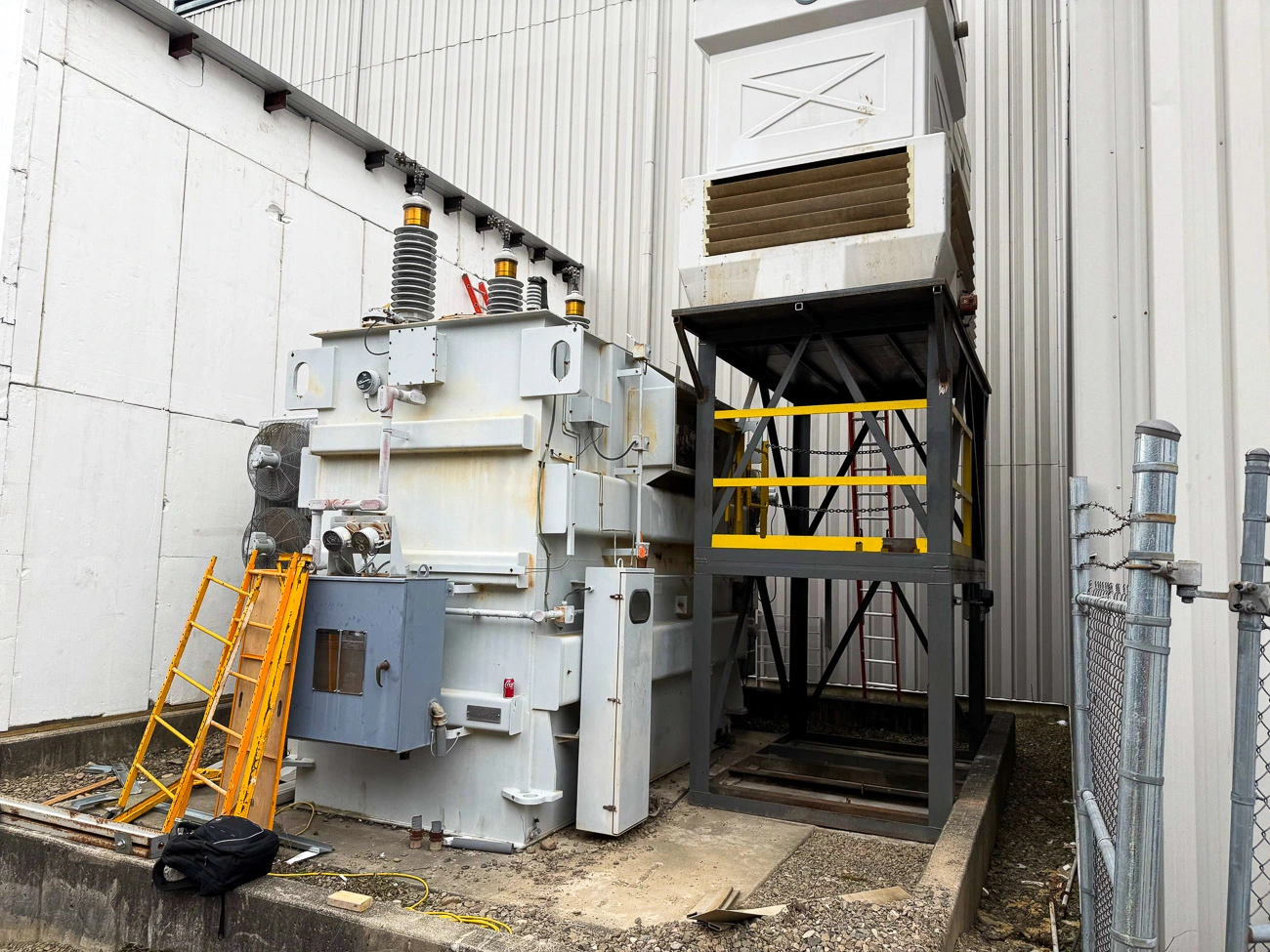

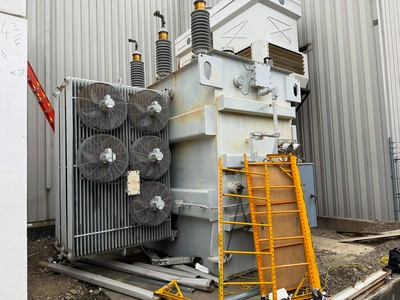

Transformer - Used 47.7 MVA by ABB (Asea Brown Boveri, Power T&D Company)
Made in: Saint Louis, MO
Type: 47.7 MVA Oil-filled transformer, Type SL, Non-PCP; Cu/Cu
Specifications:
- Three-phase, 60 Hertz
- Class: OA/FA/FA
- Windings: 11,500 GRDY/66,395 Volts, 13,800 Volts
- Capacity: 28,600/38,100/47,700 KVA
- Temperature Rise: 65°C average
- Impedance: 10.49% at 28,600 LVA, 115,000 to 13,800 Volts
- Test Levels: High Voltage: 550 KV; Low Voltage: 110 KV
- Oil Volume: 4,822 gallons
Quantity: 1
Capacity: 47,700 KVA
Weight: 148,565 Pounds
