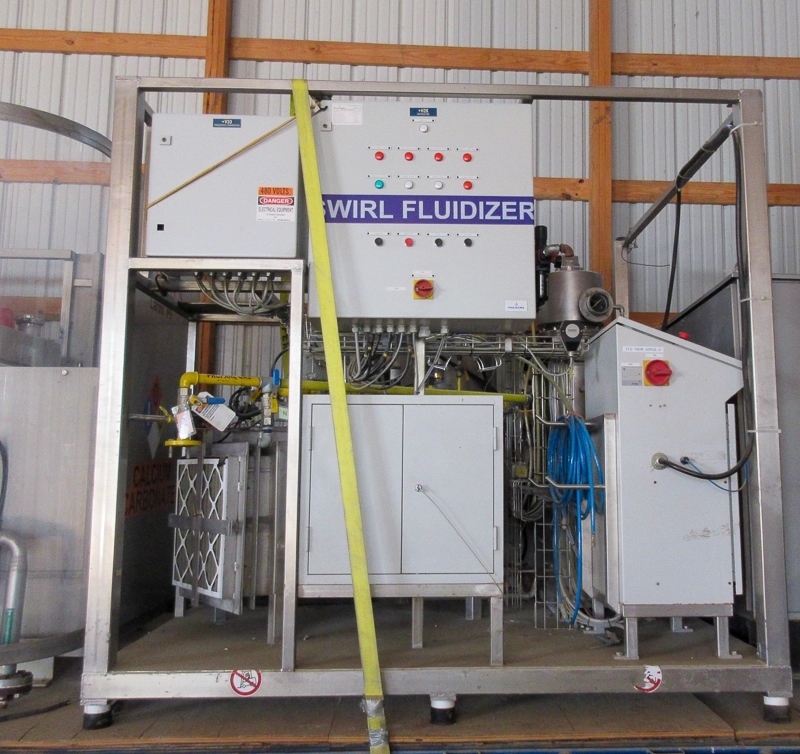

USED 2009 GEA NIRO 6.3 MOBILE UNIT

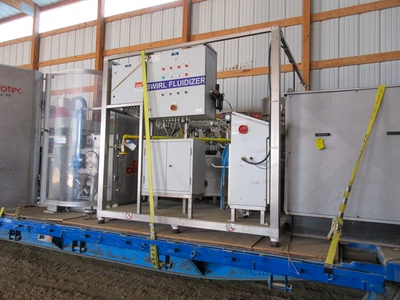

### GEA Niro Swirl Fluidizer System - Flash Dryer ###

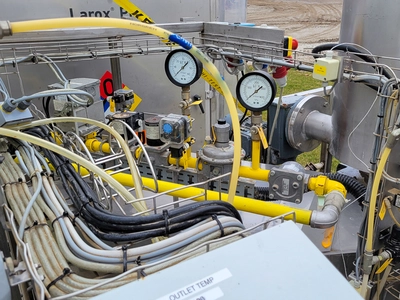

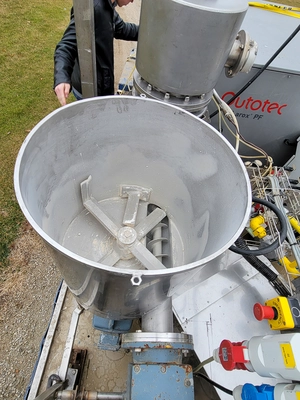

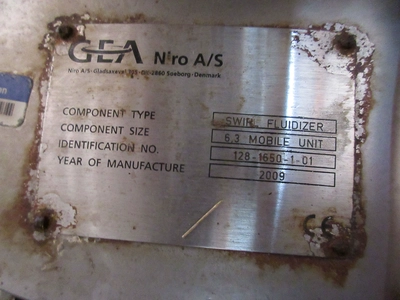

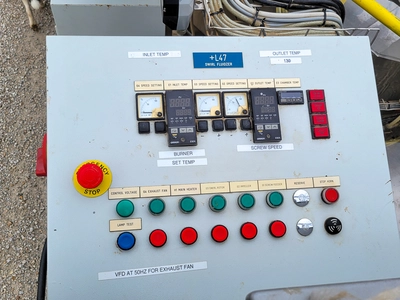

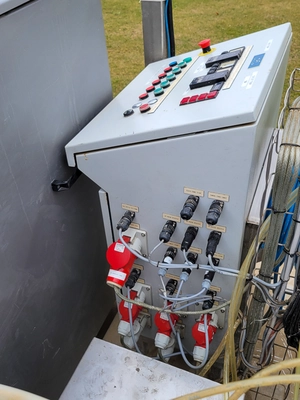

Complete skid with inlet air gas heater, fluidizing slurry tank, controls. This is an agitated flash dryer. GEA Model 6.3 Mobile Unit, ID No. 128-1650-1-01 built in 2009. Stainless steel skid size 86\" x 87\" x 82\" tall. Fluidizing slurry tank stainless is approx 3 ft dia x 3 ft tall with bottom scraped-wall blade agitator and outlet to screw conveyor.
- Air flow 450-630 kg/hr
- Inlet temp 100-350C
- Outlet temp 60-150C
- Water evaporation 0-55 kg/hr
- Max powder rate 100 kg/hr
- Max feed rate 150 kg/hr
- Gas supply natural gas or propane

Used for drying cellulose pastes prior to filtration. In feed tank, the vertical bottom driven agitator will disintegrate the viscous feed material into homogeneous feed. A specialized auger then pushes the slurry to the drying chamber. The Niro SWIRL FLUIDIZER™ offers a cost-effective solution for drying of pastes, filter cakes, and highly viscous liquids for obtaining a fine, homogeneous and non-agglomerated dry product – in one compact process step.
### See detailed presentation in the Document Links ###

Quantity: 1
Width/Dia: 86 Inches
Length: 87 Inches
Height: 82 Inches
Weight: 600 Kilograms
Size: skid 86" x 87" x 82" tall
Material: ss304
