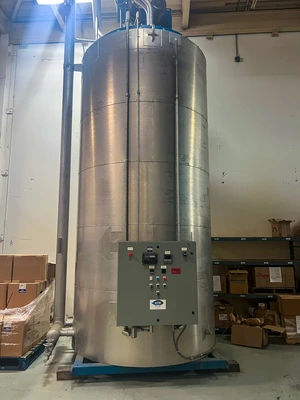

NEW 2015 GTS ENERGY NUK 1500

## High Pressure Steam Generator - to 1,380 psig NEW ##

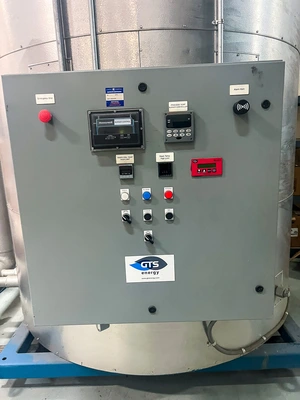

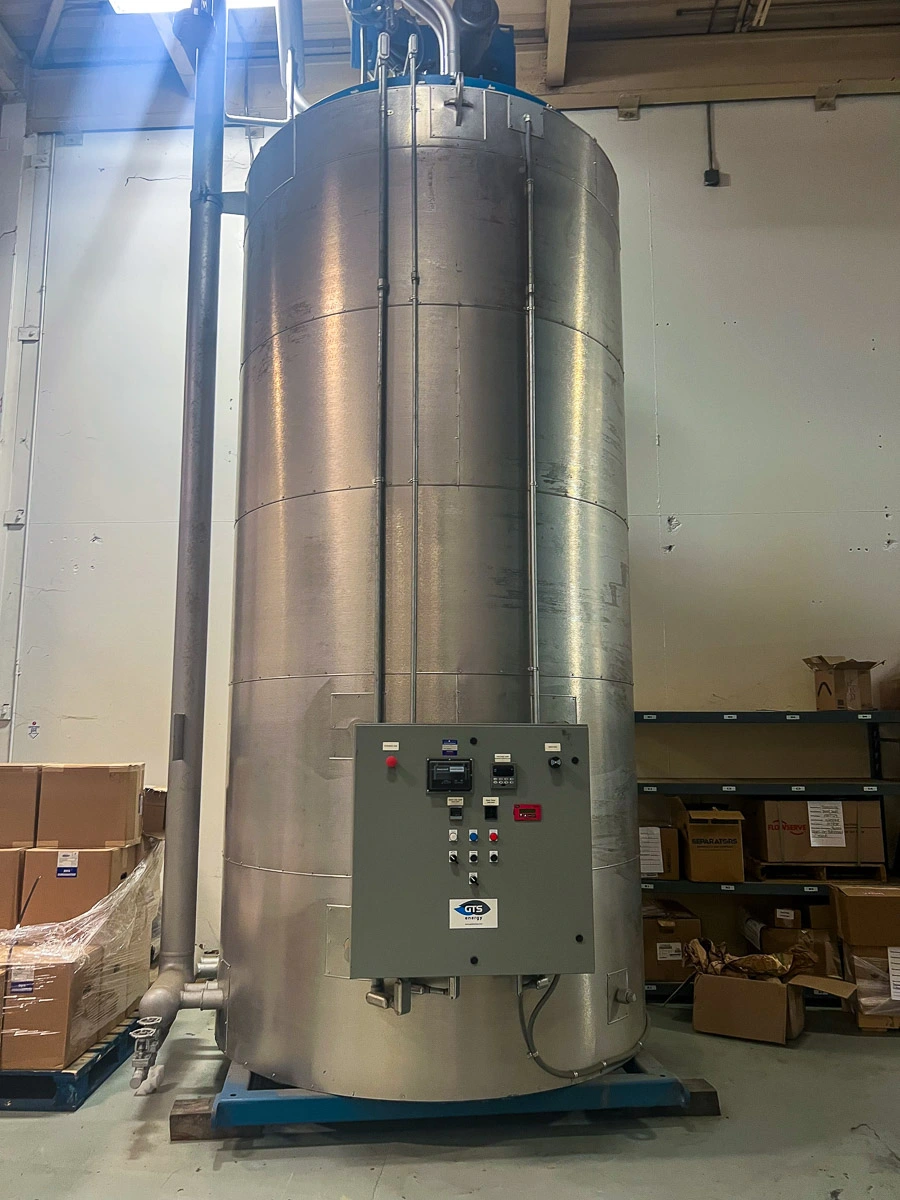

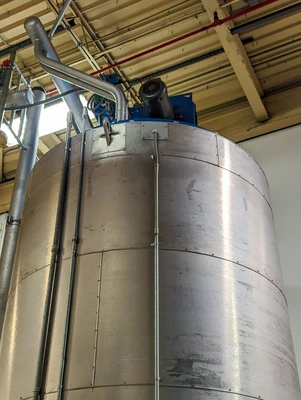

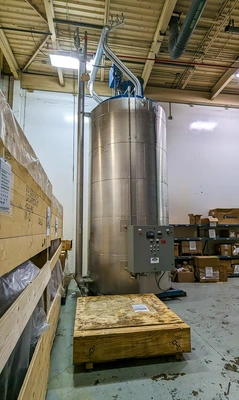

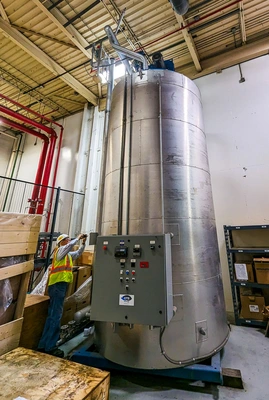

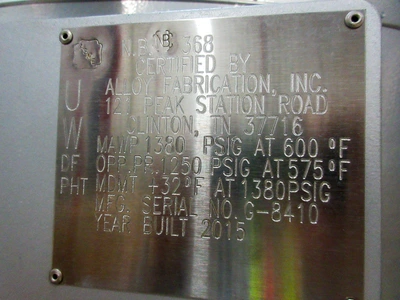

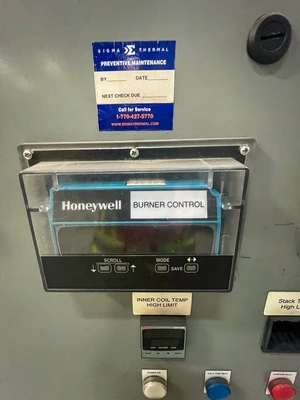

High Pressure Steam Boiler. New- never used.7200 MBTU/hr. Built in 2015, engineered by GTS Energy. Serial # G-8410. ASME Nat\'l Bd # 368 , MAWP 1380 psig at 600F, normal operating pressure is 1250 psig. Honeywell flame management control. Dual fuel Lo NOx burner fired with natural gas or oil. Industrial Combustion LNVLG-100 Lo NOx <30 ppm. Operating steam flow 12,124 lbs.hr at 1160 psig closed loop, 6 inch connections. NUK generator- top down firing. All automatic, closed loop system- requires no operator.

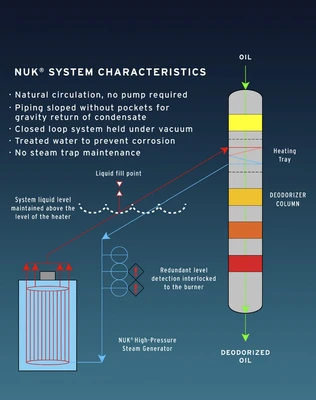

***Explanation of Operation*** - The NUK® High-Pressure Steam Generator was specifically developed for oil deodorization applications typically used in the food industry. The NUK is used as a heat source during the deodorization process to safely remove undesirable flavors and odors from edible oils; leaving the oil free from toxins. The NUK High-Pressure Steam Generator is a hermetically closed-looped heating system utilizing a water-steam mixture with maximum design pressures of 1950 psi. The system consists primarily of a vertical cylindrical combustion chamber, coil, burner, steam supply, and condensate return manifolds

See links for General Arrangement and P&ID\'s.

Quantity: 1
Capacity: 7.2 MMBTU
Width/Dia: 8.9 Feet
Length: 8.8 Feet
Height: 20.11 Feet
Weight: 17,509 Pounds
Pressure: 1,380 psig
