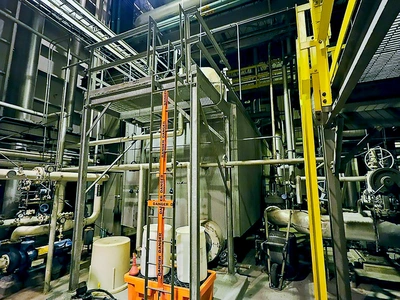

### Watertube Boiler Low Nox ###

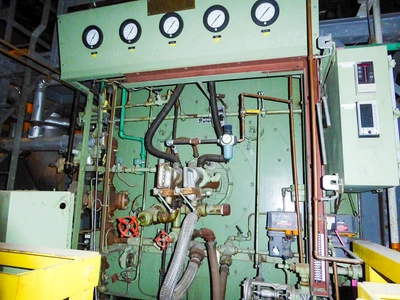

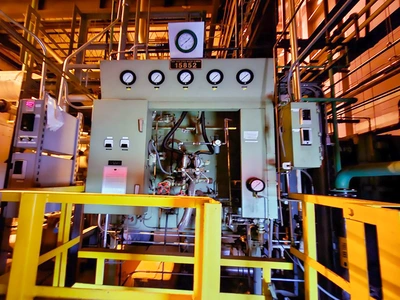

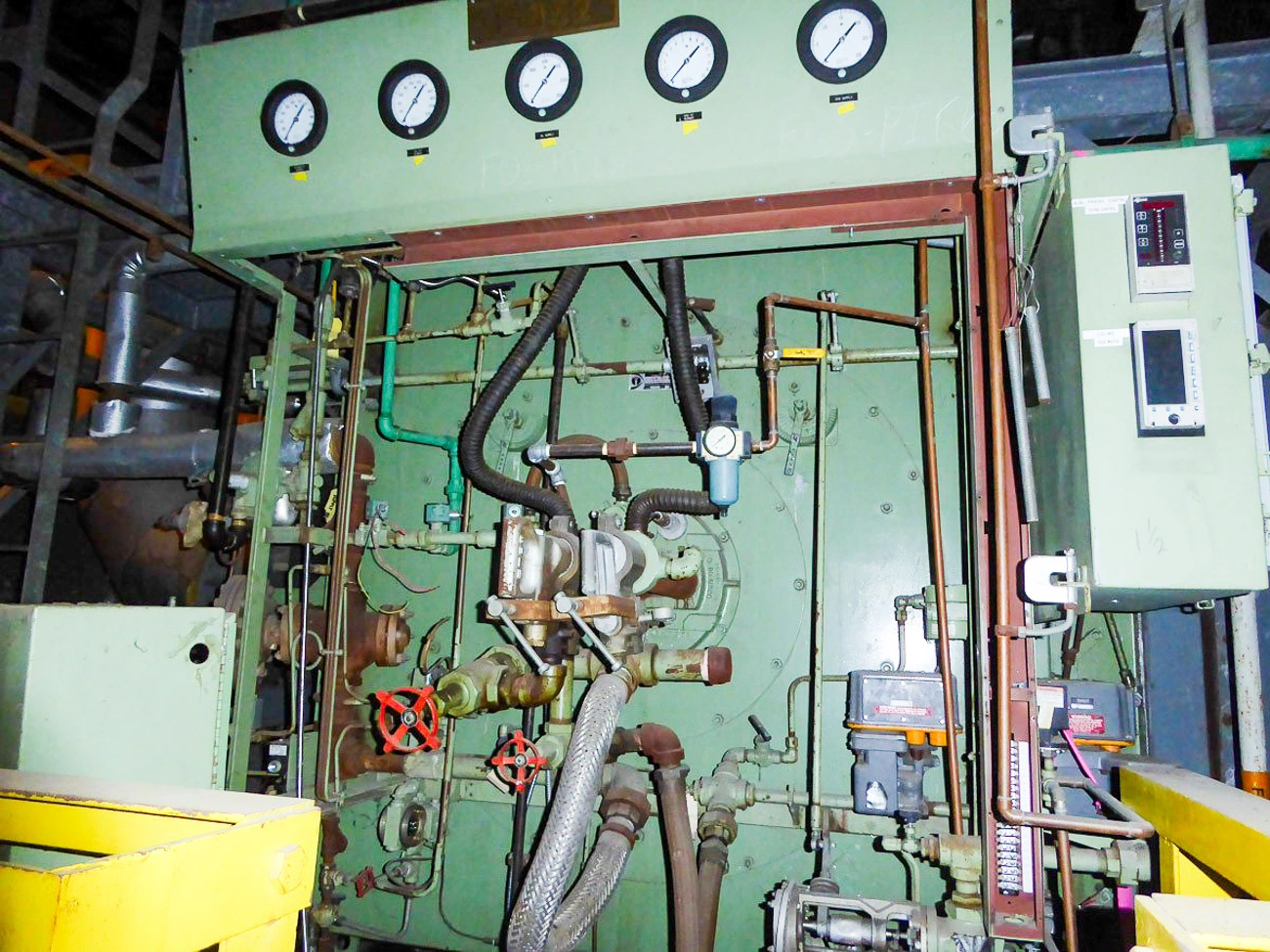

- Low Nox Burner Coen model 675 features fuel gas return (FGR). NOx emissions 30 to 60 ppm
- Dual Fuel: natural gas and #2 fuel oil
- Generates 103,500 lb/hr at 175 psig saturated steam max
- Incudes Superheater rated at 90,000 PPH at 426°F

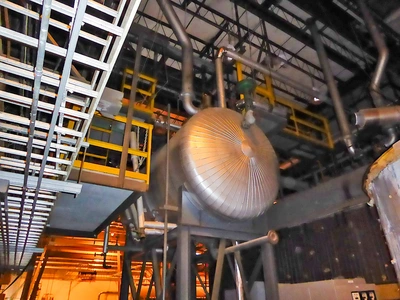

- Deaerator and feedwater pumps
- Economizer: horizontal fully drainable finned tube
- Stack: 100 ft tall, base 64\" ID with outlet 44\" ID
- Ladders and platforms, interconnection pipes, valves, safety relief valves

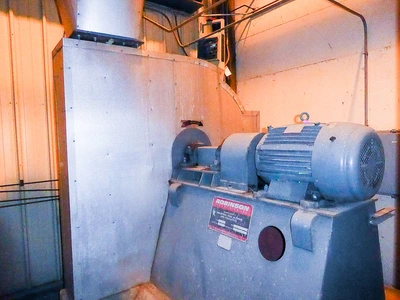

ABCO 2 pass, D-type Watertube Boiler. EIN # 467310. The boiler is designed to generate a maximum total of 103,500 lbs./hr. of saturated steam at 175 psig, while the burner heat release rate is 132 MMBtu/hr. on HHV basis with natural gas firing (90,000 lbs./hr. of the total is superheated at 426° F). The design pressure of the boiler and superheater is 200 psig, while the design pressure of the economizer is 250 psig. The boiler is furnished with a boiler outlet transition, economizer, stack, ladders and platforms, trim, associated piping and valves. Coen model 675 Low Nox burner. Dual fuel ( natural gas and # 2 fuel oil ). FD fan Robinson blower with 60 HP motor. Serial no. 90110
**Boiler has very low hours of use**
Quantity: 1
Capacity: 103,500 #/hr
Width/Dia: 11.11 Feet
Length: 40.6 Feet
Height: 16.2 Feet
Weight: 88,000 Pounds
Pressure: 200 psig
