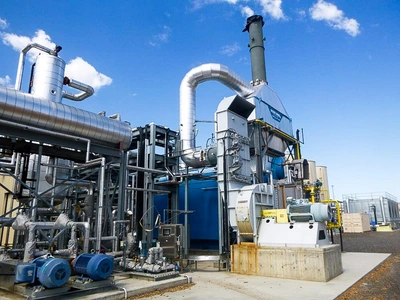

### Watertube Boiler with Economizer 90,000 #/hr Natural Gas ###

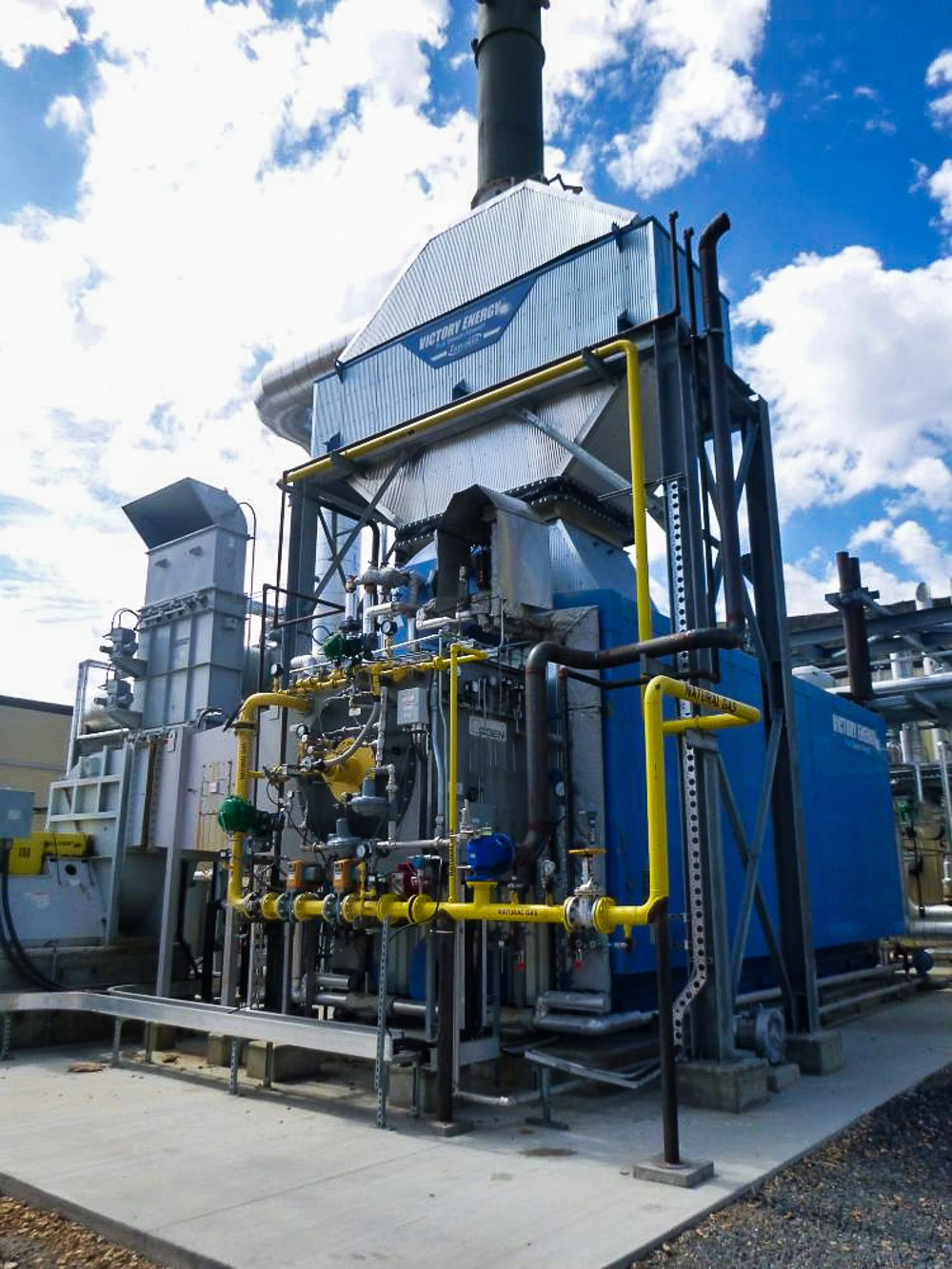

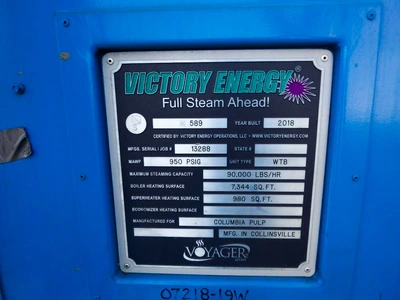

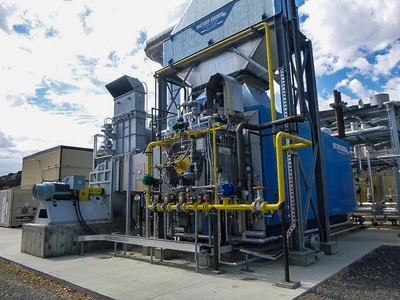

Victory Natural Gas Watertube Boiler Type O, Voyager Series VS-5-78SP SH. Capacity 90,000 lbs./hr saturated steam at 800 psig (design pressure 950 psig) ASME Nat\'l Bd # 589.
- Economizer

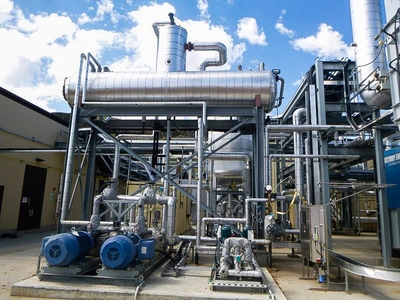

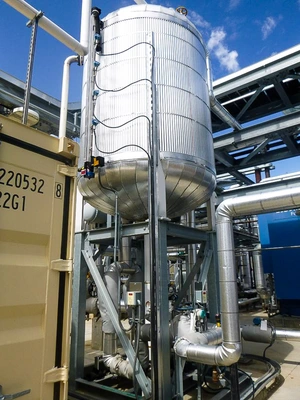

- Feedwater System
- Stack 50 feet

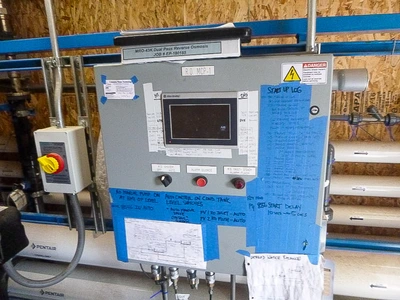

- Electrical and PLC control systems.
With feedwater temperature 227 Fahrenheit to economizer inlet. Complete economizer system. Furnace Radiant Heating Surface 889 Sq. Ft, Boiler Convective Heating Surface 6,455 Sq. Ft., Total Heating Surface 7,344 Sq. Ft. Superheater surface is 980 sq. ft. Drums Submerged arc automatic welded and stress relieved with radiographed welded seams and tubes are rolled and expanded into the drum.
Drum material is SA-516 Gr. 70. Mud Drum is provided with a 12” x 16” hinged manway access in each drum head. Steam Drum is provided with a 12” x 16” hinged manway access in each drum head. All tubes enter the drum radially with full parallel bearing through the drum plate and all tubes are full diameter with no swaging.
All tubes are full diameter tubes with no swaging.
Quantity: 1
Capacity: 90,000 #/hr
Width/Dia: 9 Feet
Height: 50 Feet
