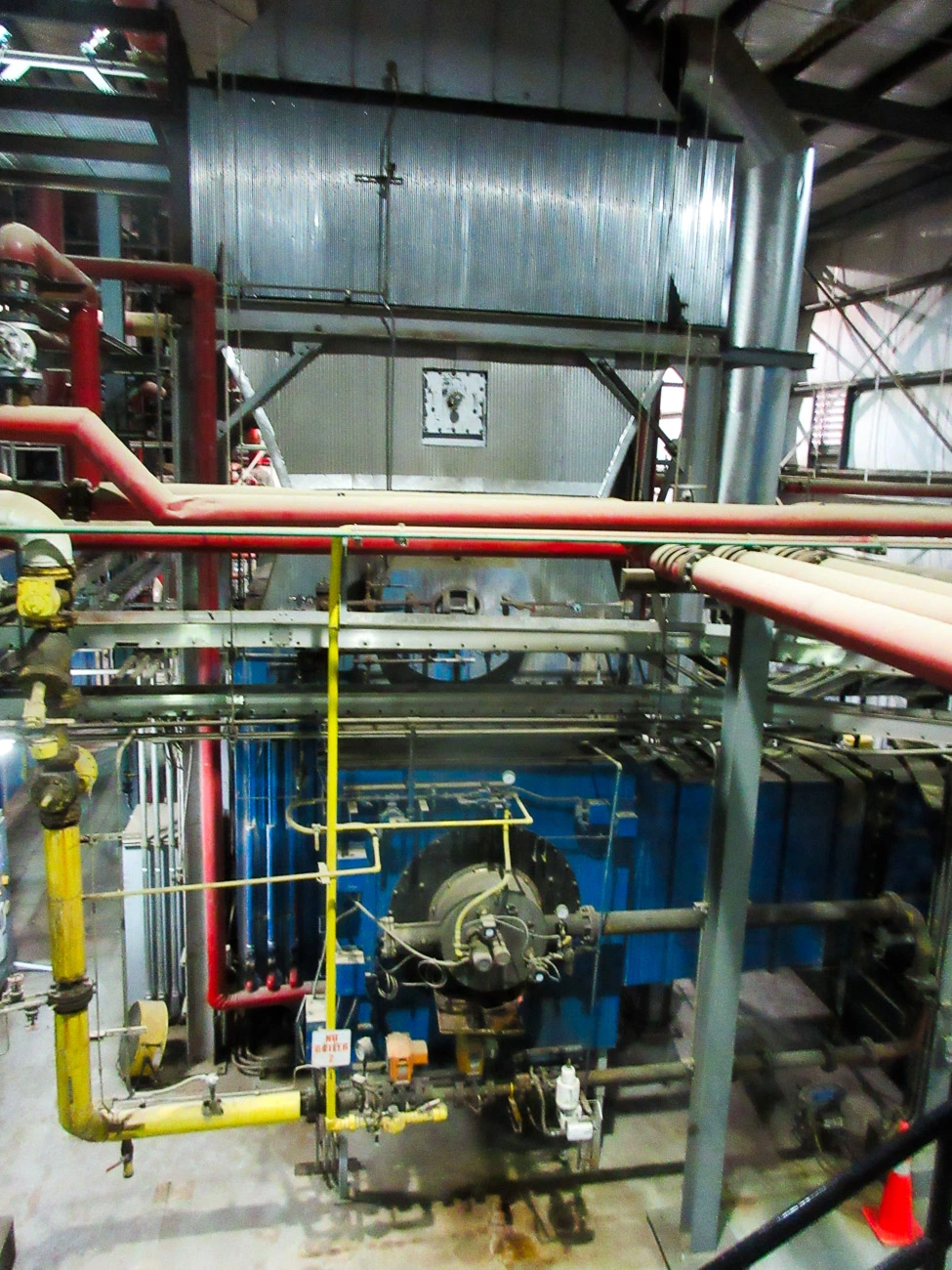

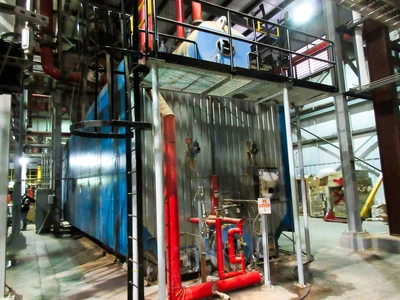

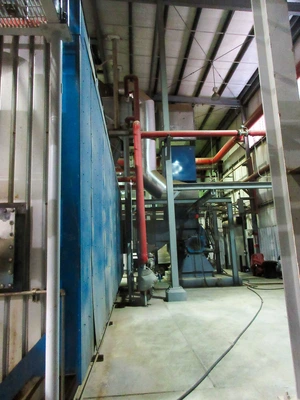

## Victory Watertube Boiler w/ Economizer rated at 205,000 lb/hr at 150 psig ##
- Model VS-7-116 \"O\" Type design
- Boiler was in operation running at 190,000 #/hr at 150 psig. ASME MAWP 250 psig

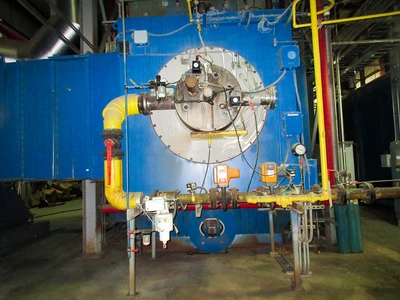

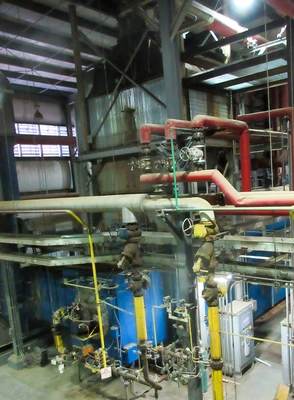

- Natural gas fired includes gas train
- **Economizer** - includes steel structure and inlet/outlet breeching. Overall height about 18 ft, structure is 15.3 ft x 8 ft. Weight of all is approx 45,400 pounds. Ecxonomizer alone is 16.3 ft long x 6.5 ft wide x 6 ft tall, weight 24,300 pounds dry. Design ASME 490 psig at 700F, 2 inch tubes.

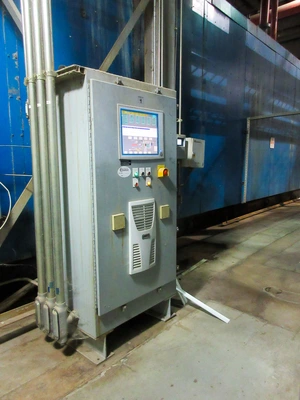

- Controls

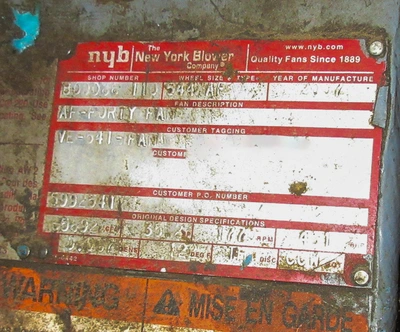

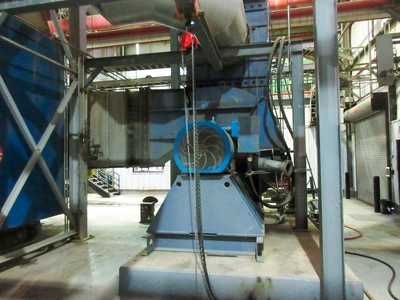

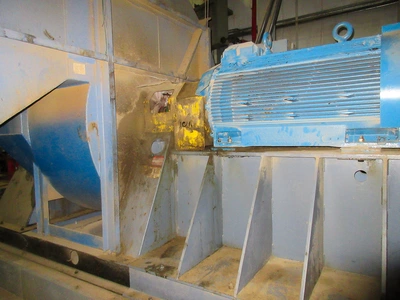

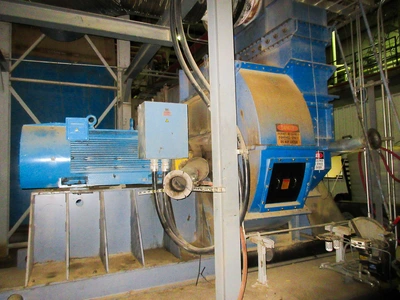

- Combustion blower is a NY Blower with 400 HP motor
- Stack 5 ft dia

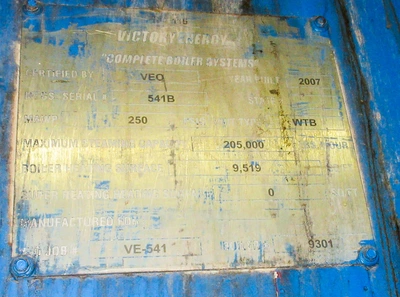

- Boiler 9301, Serial Number 541B.
- See Drawing and inspection report in Links

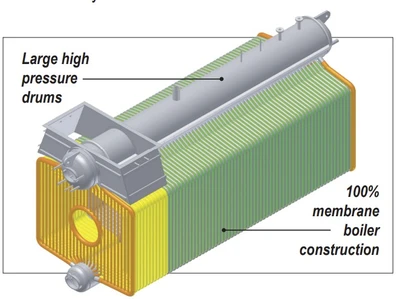

The VOYAGER® O-style Boiler is designed to provide a rapid ramp rate and is easy to ship, install, operate and maintain. These are 100% water cooled and refractory free front and rear walls.
**There are two identical boilers, other is opposite hand. See also asset 1359**
**Still installed, Idled in March 2025**
Quantity: 1
Capacity: 205,000 #/hr
Width/Dia: 13 Feet
Length: 44.3 Feet
Height: 17.3 Feet
Weight: 160,000 Pounds
Pressure: 250 psig
Motor HP: 400
