NEW 2019 CLEAVER BROOKS NB-801D-125-550-AL-LH

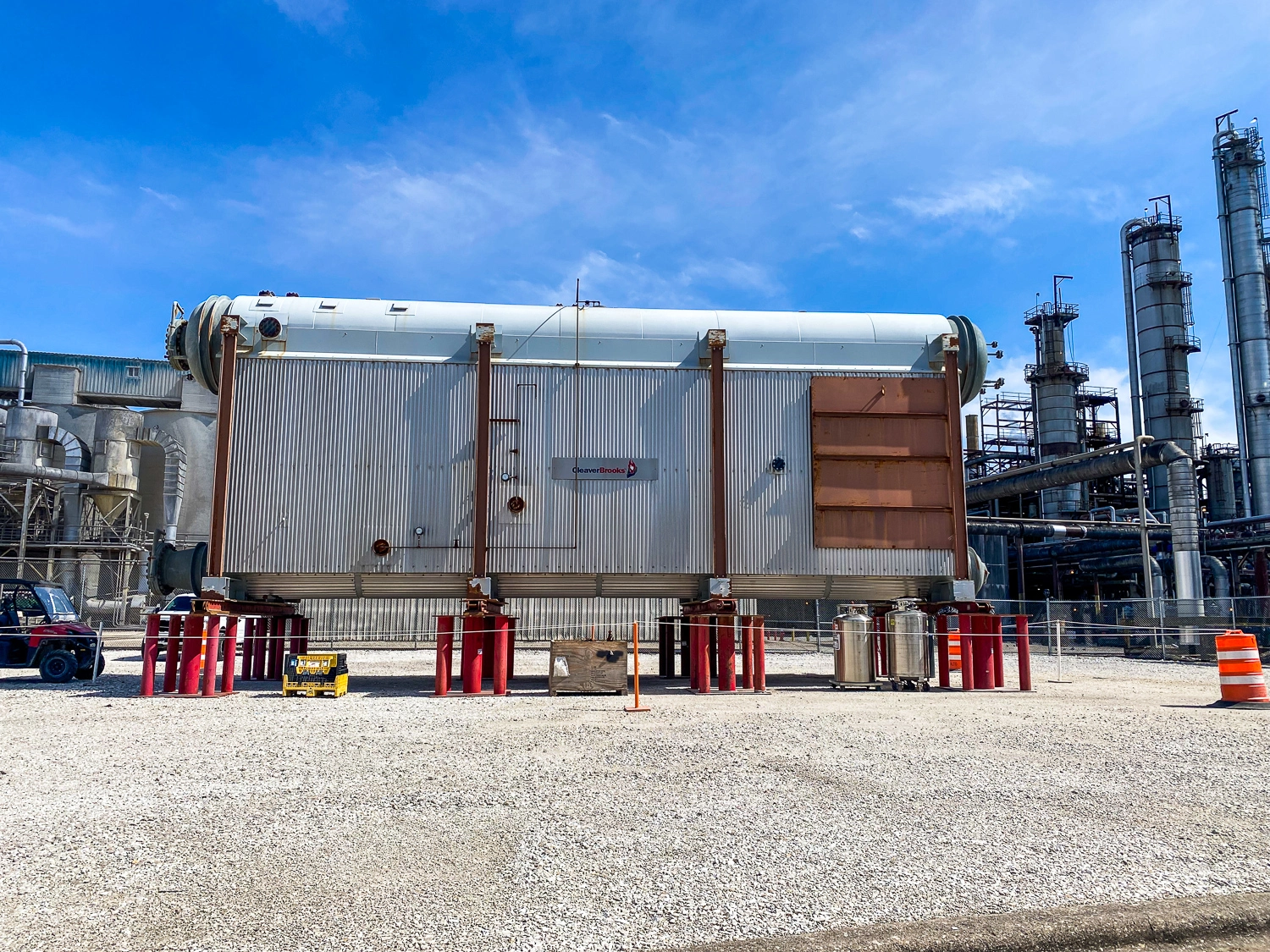

### Cleaver Brooks Industrial Watertube Boiler 250,000 lbs/hr superheated steam ###
- Boiler model NB-801D-125-550-AL-LH, serial CP-4582
- NEW, never installed
- D-type watertube style
- Pressure 420 psig operating pressure (superheated, temp 650F +/- 25). Superheated steam

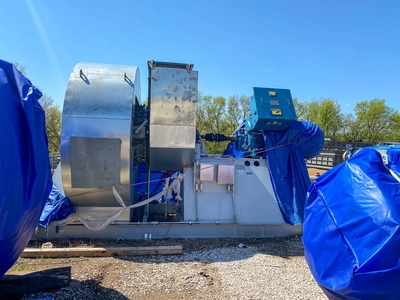

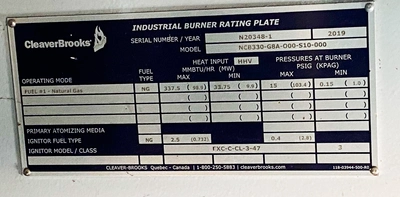

- Natcom LoNOX Burner, natural gas. Gas train included. Burner model NCB-330-68A-000-S10-000
- Stack included - 3 sections
- Economizer, ECO, Inc. vertical 7.5 ft dia x 20 ft tall
- Controls - 2 plc\'s + burner management + combustion controls
- Includes SCR for emissions reduction
- Under nitrogen purge with desiccant in furnace area

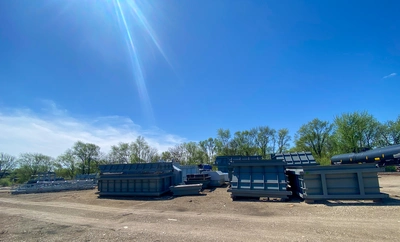

Removed and stored - ready to load. See additional information in document links

Quantity: 1
Capacity: 250,000 #/hr
Width/Dia: 79 Feet
Length: 56 Feet
Pressure: 420 psig
