Tray Type Deaerator. Was used as part of a 210,900 Lb/Hr Cogeneration Boiler.
- Horizontal deaerator with a vertical top with trays. Carbon steel SA516-70
- Overall dimensions including insulation: Horizontal bottom part size 8 ft diameter x 18’-6”, Vertical top part size 8 ft dia x 8 ft tall

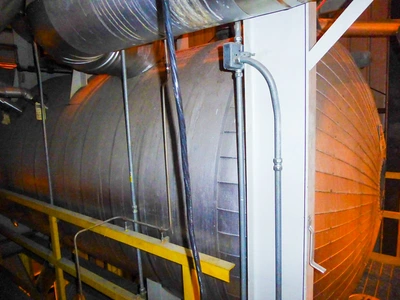

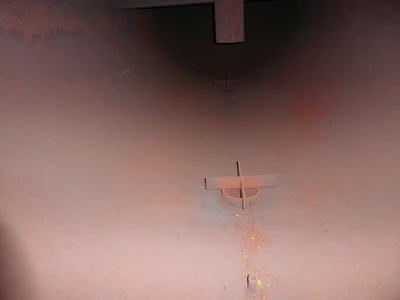

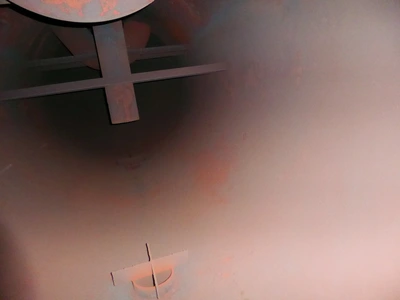

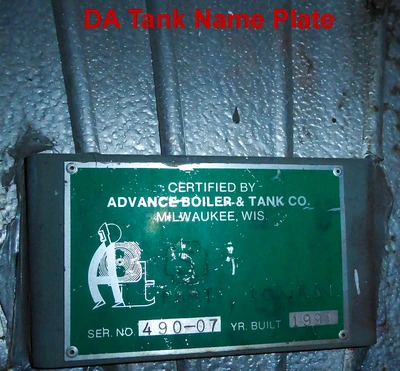

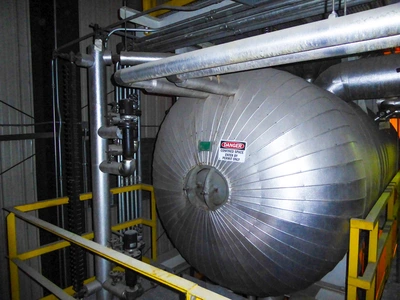

- Deaerator storage vessel is 90 inches dia x 16\'-3\" long, 0.50 \" thick steel.(ID = 44.5\" radius). ASME MAWP 100 psig. Serial number 490-07, ASME 491-007

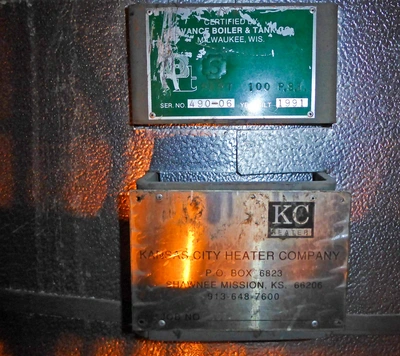

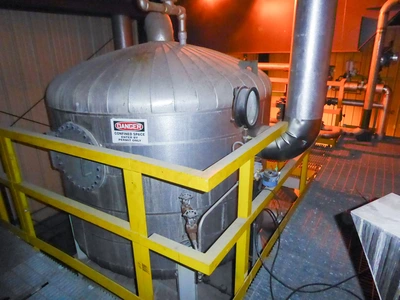

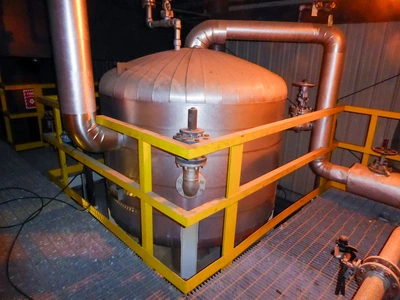

- Top Heater Tray Evaporator part is 78\" OD x 4\'-6\" length ASME MAWP 100 psig. Serial number 490-06. ASME 491-006

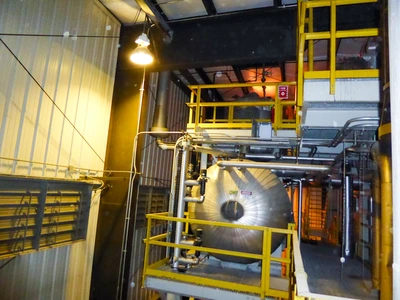

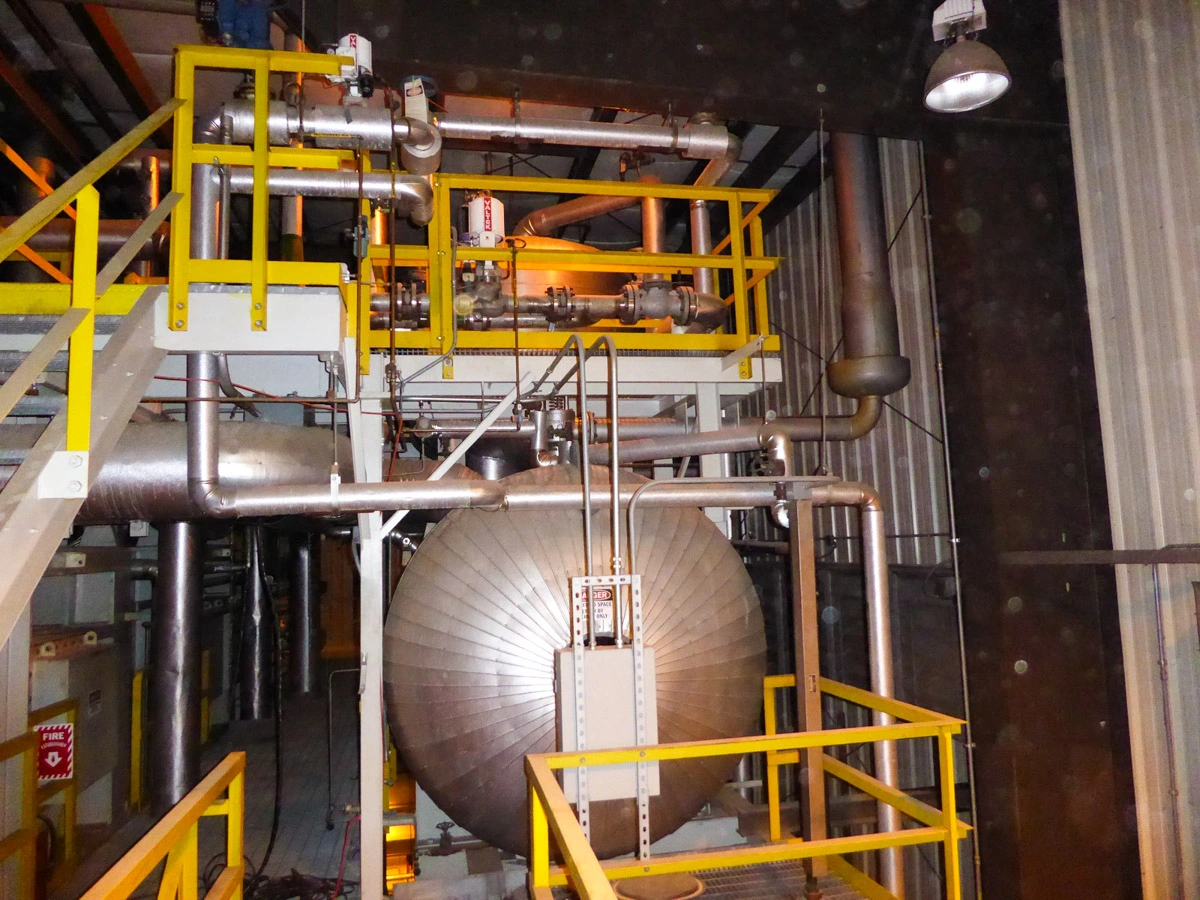

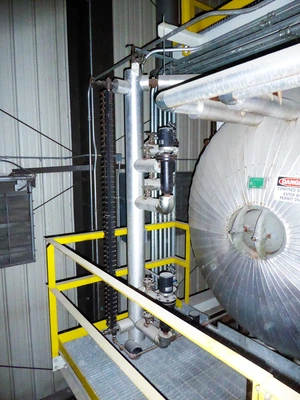

Deaerator was being actively used and maintained until it was mothballed about 2020. It is still installed, stored inside and dry. Price includes removal and loading of DA only. Structure and piping will be extra if wanted.
Quantity: 1
Capacity: 210,900 #/hr
Width/Dia: 8 Feet
Length: 18.5 Feet
Height: 16 Feet
Pressure: 100 psig
Material: carbon steel
