NEW 2020 HOWDEN ROOTS HBXRG-20/675 EXVEL

### Howden High Heat Blower - Never Used ###

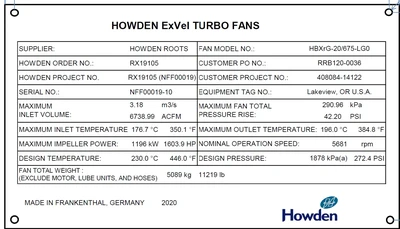

**Howden High Heat Blower ExVel Turbo Fan**. Model HBXrG-20/675. Serial # NFF00019-10. Includes Siemens 1500 Series PLC, Bentley Nevada 3500 Series monitor system. This is NEW, old stock. Never used, still in protected crates.
- Design Pressure 272.4 psi and Temperature 446F
- Inlet Volume 6738.99 ACFM

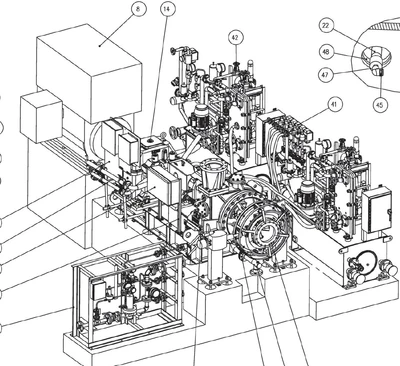

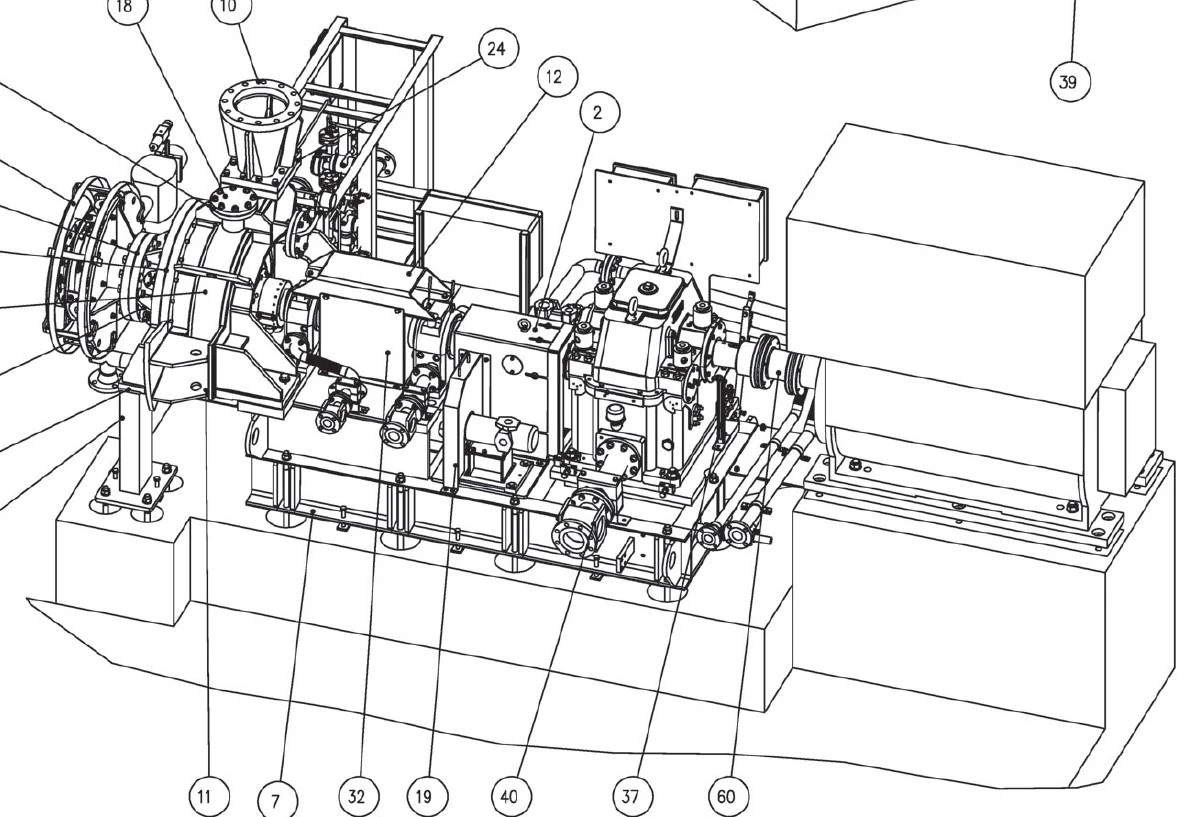

- Main skid plus (1) nitrogen skid and (2) lube unit skids for fan and gear

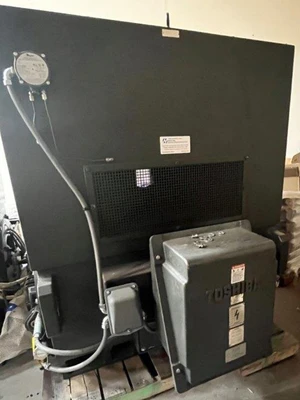

**Driven by Toshiba 1800HP induction motor**

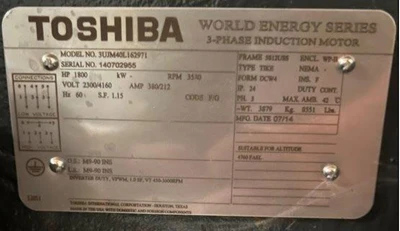

- Toshiba World Energy Series 3 phase induction motor, Serial # 140702955
- Model # 3VJM400LI6297I
- 1800 HP 3540 rpm 4160v 60 Hz 3 phase
ExVel™ turbo fans have unique, industry leading impeller and bearing technologies delivering the highest differential pressures available in the fan industry. They can replace more costly centrifugal compressors or multiple blowers with a single unit. This Howden Blower was to be part of the gasification system to move the hot syngas exiting the pyrolysis vessel in a biomass conversion system. It was never installed or used.

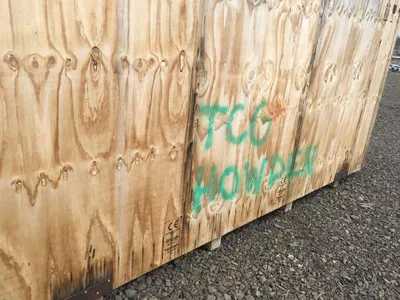

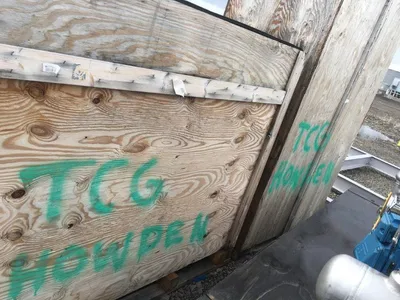

**Condition** - Still in crates. The crates are sealed against weather, protected, and in long term storage inside a third party protected warehouse. No known refurbishment required - assets are sold As Is Where Is.

Quantity: 1
Capacity: 6,739 acfm
Weight: 19,770 Pounds
Pressure: 272 psig
Motor HP: 1800
