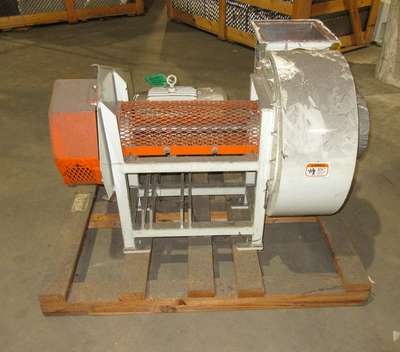

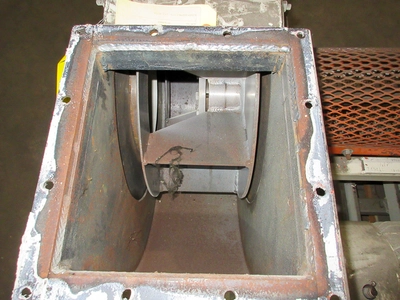

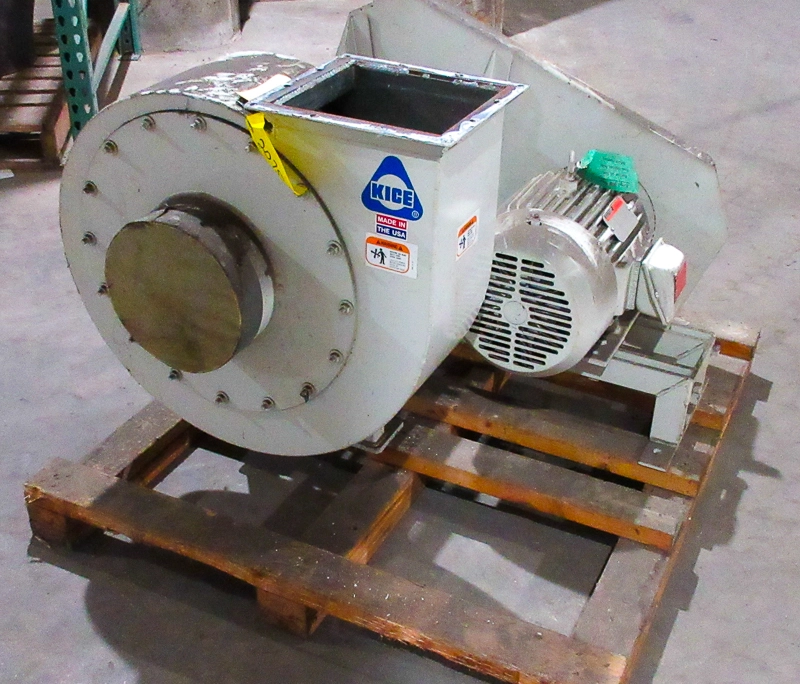

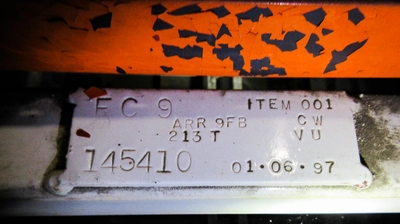

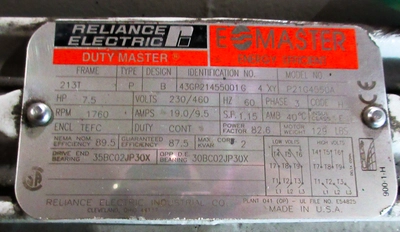

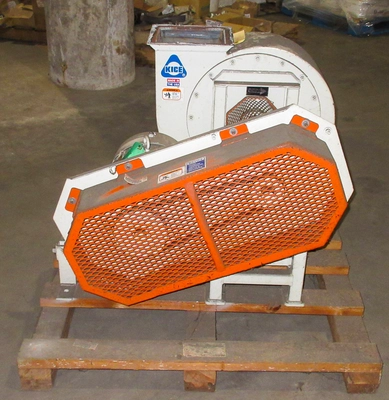

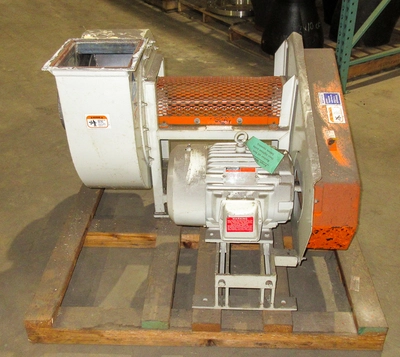

Kice Blower, Model FC9, clockwise Arrgt 9FB. SN: 145410. Physical size is 38\" x 34\" x 27\" tall. Inlet diameter 9\" OD, wheel diameter 15 5/8\", wheel circumference 4.09\', fan outlet area 0.5205 sq ft inside. Flow depends on static pressure - range with this 7.5 HP motor on it is from 600 cfm at 3\" SP to 1800 cfm at 16\" SP. Driven by 7.5 HP Reliance Electric Motor 480/3/60. See links for dimensions and performance charts. Aprox size for shipping 39\" x 40\" x 27\" high. Removed, ready to ship
Quantity: 1
Capacity: 1,800 acfm
Width/Dia: 15 Inches
Weight: 411 Pounds
Size: 38" x 34" x 27" tall
Motor HP: 7.5
