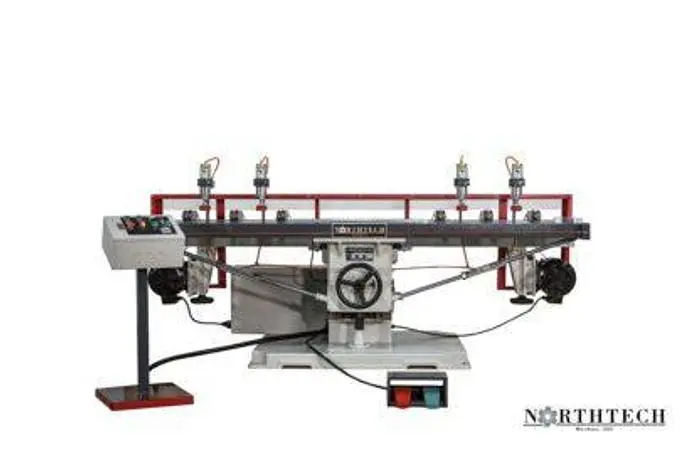

NT-HBSS280 BORING MACHINE HORIZONTAL

NT-HBSS280 BORING MACHINE HORIZONTAL
The NT HBSS-280 is a heavy duty horizontal boring machine. The multiple boring head configuration is adjustable for varying hole layouts for customer flexibility. Rugged cast iron base for a solid footing and decades of performance. Pneumatic hold downs and drill cycle. Ideal for panel, softwood, hardwood and plastic products
NT-HBSS280 BORING MACHINE HORIZONTAL
The NT HBSS-280 is a heavy duty horizontal boring machine. The multiple boring head configuration is adjustable for varying hole layouts for customer flexibility. Rugged cast iron base for a solid footing and decades of performance. Pneumatic hold downs and drill cycle. Ideal for panel, softwood, hardwood and plastic products

Machine hp: (2) 2 HP
Voltage, frequency: 230/460 Volt 60HZ
Phase: 3 Phase
Amp requirement: 6/3 Amps
Spindle arrangement: (6) Inline Spindles
Spindle diameter: 1/2'' Chuck
Spindle rpm: 4200 RPM
Elevation style: Manual Wheel Adjustment
Approved electrical parts: CE Approved Parts
Dual voltage motors: 230/460 Volt
Control voltage: 24 Volt
Adjustable operator panel: Movable Pedestal
Max. working length: 90''
Max. working thickness: 4-1/2''
Hold down style: Pneumatic Clamps
