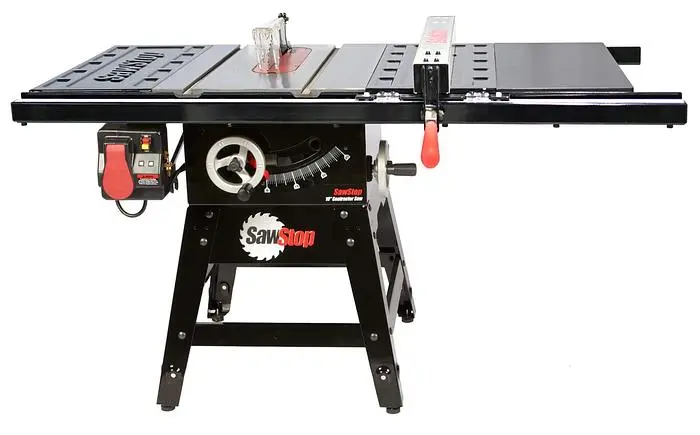

Contractor Saw CNS™ (30" Premium Fence)

30” Premium Fence System provides smooth operation, precision measurement and sure lockdown without deflection.
SawStop Safety System stops on contact with skin.
Includes Two Steel Extension Wings
The most configurable saw in the SawStop lineup
Precision, performance and safety all come together to make this the right choice for experts looking for a reliable saw at an affordable price.
(2) Steel Extension Wings
(1) Miter Gauge
(1) Micro Blade Guard
(1) Riving Knife
(2) Blade Wrenches
(1) Push Stick
(1) 10” Blade
(1) Standard Lockdown Insert
(1) Standard Brake Cartridge
(1) Owner’s Manual
(1) Assembly Instructions
(2) Hardware Packs
(1) 3mm Hex Key
(1) 5mm Hex Key
(1) 8mm hex Key
(1) Blade Spacing Adjustment Gauge

30" Rip Capacity: CNS175-PFA30: 30" Premium Fence Assembly
Motor Option(s) (60Hz TEFC): 1.75 HP available
Overall saw dimensions 30 in: 61 3/4" w, 40 1/2" d, 34 3/4 h
Motor Configuration(s): CNS175: 1.75 HP, 120v, 14 A (user config. to 220v w/optional kit available for purchase).
Saw body footprint: 25 3/4" W x 27" D (w/stand installed)
Cast iron table: 20″ W x 27″ D
Cast iron table (w/ extension wings): 44″ W x 27″ D
Extension wings: 12″ W x 27″ D Stamped Steel (optional cast iron for purchase)
Extension table 30 in: 12" W x 27" D
Shipping weights - w/ 30 in fence systems: 268 lbs (2 boxes)
Shipping dimensions (saw body only): 35" W x 30" D x 20" H
Shipping weight (approx.): 240 lbs (table saw only)
Assembled weights - w/ 30 in fence systems: 256 lbs
Weights - table saw only: 225 lbs
Weights - (optional cast iron wings): 35 lbs each
Blade: 40-tooth, prof. grade, 5/8″ arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118″ (3mm)
Blade plate thickness: 0.078″ (2mm)
Max. depth of cut, blade at 0º: 3 1/8″
Max. depth of cut, blade at 45º: 2 1/4″
Max. rip, right of blade (w/30” Premium Fence): 30"
Max. rip, left of blade (w/30” Premium Fence): 12"
Dado diameter: 8" (requires dado brake cartridge & insert)
Dado max. width: 29/32”
Arbor diameter at blade: 5/8"
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10 5/8"
Table behind blade (max. elevation): 7 1/8
Arbor Runout: 0.001″ Maximum allowable runout
Table flatness measured diagonally: 0.016″ Maximum gap
Blade alignment with miter slot: 0.010″ Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25º
Alignment between splitter and blade: 0.010″ Maximum difference
Miter slots T-shaped: 3/4″ at top, 1″ at bottom, 3/8″ deep
Miter slots center: 11 1/8″ center-to-center
Miter slots info: 5 1/2″ (arbor flange to center of right slot)
Dust collection port diameter: 4"
Riving knife / splitter thickness: 0.090" (2.3 mm)
Blade guard: Standard polycarbonate, extends 1″ right of blade (opt dust guard for purchase)
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 6″ diameter, cast alum. w/ ABS handle
Belts: V-ribbed belt – static dissipative
Dimensions: 61 3/4" w, 40 1/2" d, 34 3/4 h
