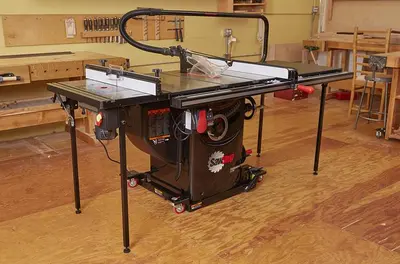

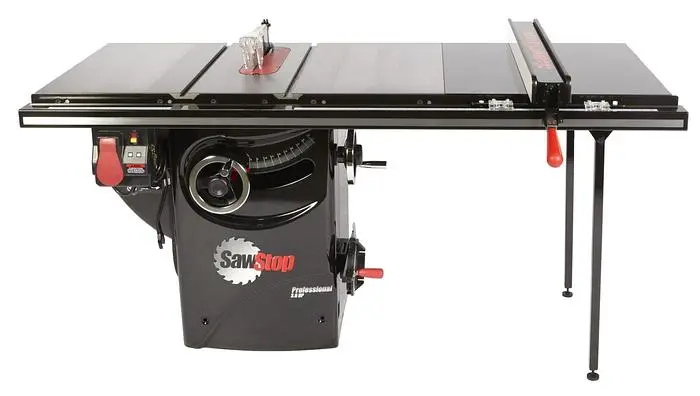

Professional Cabinet SawPCS™ (1.75 HP, 1 PH, 36" T-Glide Fence Assembly)

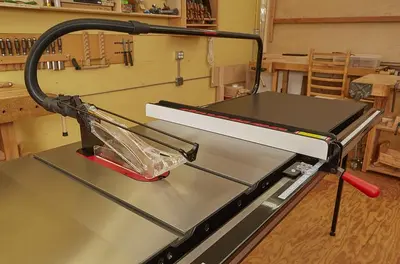

36" Professional T-Glide Fence System provides smooth operation, precision measurement and sure lockdown without deflection.
Unmatched fit and finish with a keen attention to detail make the Professional Cabinet Saw SawStop's most popular saw.
SawStop Safety System stops on contact with skin.
ASSEMBLY: 1.75HP Professional Cabinet Saw with 36” Professional T-Glide fence system, rails & extension table
(2) Cast Iron Extension Wings
(1) Miter Gauge
(1) Micro Blade Guard (1.75HP Models)
(1) Dust Collection Blade Guard (3HP Models)
(1) Riving Knife
(2) Blade Wrenches
(1) Push Stick
(1) 10” Blade
(1) Standard Lockdown Insert
(1) Standard Brake Cartridge
(1) Owner’s Manual
(2) Hardware Packs
(1) 3mm Hex Key
(1) 5mm Hex Key
(1) 8mm Hex Key
(1) Blade Spacing Adjustment Gauge

36" Rip Capacity: PCS175 or PCS31230 -TGP236: 36" T-Glide Fence Assembly
Motor Option(s) (60Hz TEFC): 1.75 or 3 HP available
Overall saw dimensions 36 in: 69 1/8" W x 33" D x 34" H
Motor Configuration 1: PCS175: 1.75 HP, 120v, 14 A (user config. to 220v w/optional kit available for purchase).
Saw body footprint: 19 3/8" W x 19 3/8" D (Cabinet)
Cast iron table: 20" W x 27" D
Extension wings: 12" W x 27" D each
Cast iron table (w/ extension wings): 44" W x 27" D
Extension table 36 in: 23 ¾” W x 27” D
Shipping weights - w/ 36 in fence systems: 480 lbs
Shipping dimensions (saw body only): 42”W x 31”D x 30”H
Shipping weight (approx.): (table saw only) 375 lbs
Assembled weights - w/ 36 in fence systems: 408 lbs
Weights - table saw only: 317 lbs
Blade: 40-tooth, prof. grade, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0º: 3 1/8"
Max. depth of cut, blade at 45º: 2 1/4"
Max. rip, left of blade (w/36” or 52” T-Glide Fence): 12 1/2"
Max. rip, right of blade (w/36” Fence): 36 1/2" (w/optional 36" rails)
Dado diameter: 8" (requires dado brake cartridge & insert)
Dado max. width: 29/32”
Arbor diameter at blade: 5/8"
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10 1/4"
Table behind blade (max. elevation): 7 1/2"
Arbor Runout: 0.001" Maximum allowable runout
Table flatness measured diagonally: 0.010" Maximum gap
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25º
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11 1/8" center-to-center
Miter slots info: 5 1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Riving knife / splitter thickness: 0.090" (2.3 mm)
Dust collection blade guard (optional on 1.75 HP saws): polycarbonate, extends 1-3/16" right of blade
Blade guard: (dust collection) port diameter 1-1/2" Outside, 1-1/4" Inside
Insert: zero clearance, phenolic core, melamine surfaces
Micro blade guard (standard on 1.75 HP saws): polycarbonate, extends 1" right of blade
Hand wheels: 7" diameter, cast iron w/ chrome handle
Belts: 2 V-ribbed belts - arbor b. static dissipative
Dimension: 69 1/8" w, 33" d, 34" h
