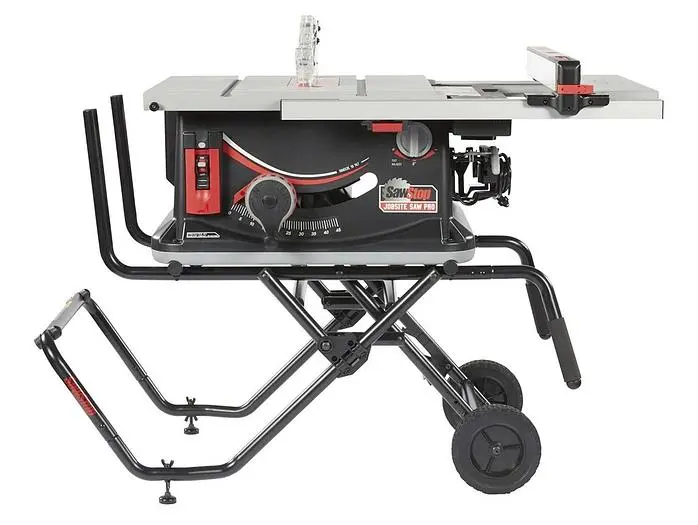

NEW SAWSTOP 10" JOBSITE SAW PRO W/MOBILE CART & HIGH/LOW FENCE SYSTEM

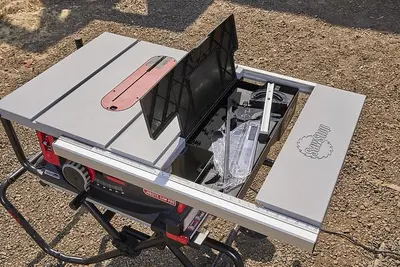

Class-Leading Table Depth: 24 5/8” table depth allows a larger surface to make safe and accurate cuts from
Solid Hi-Low T-Style Fence with Ergolock: Slides easily and locks firm with the push of the innovative Ergolock. 25 1/2” rip capacity
Active Dust Collection Blade Guard: Captures above table dust, helping to ensure a safer and cleaner workspace
Internal Dust Collection Shroud: Designed to provide superior dust collection capabilities.

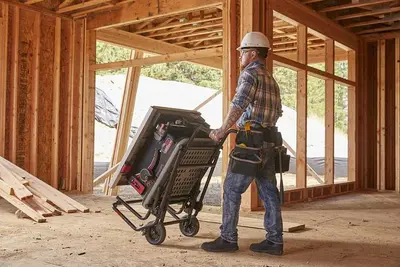

Easy Mobility: Simple, intuitive action extends the Mobile Cart for use and collapse the cart for transport
1 year warranty
Jobsite Saw PRO with Mobile Cart Assembly -15A,120V,60Hz
(1) Collapsible Rolling Cart
(1) High/Low T-Style Fence w/Ergolock
(1) Miter Gauge
(1) JSS Active Dust Collection Blade Guard
(1) Riving Knife
(2) Blade Wrenches
(1) Push Stick
(1) 10” Blade
(1) Zero Clearance Insert
(1) Standard Brake Cartridge
(1) User’s Guide
(1) Assembly Instructions Poster
(1) Hardware Pack
(1) 3mm Hex Key
(1) 4mm Hex Key
(1) 5mm Hex Key

Model Option: 10" Jobsite Saw PRO w/mobile cart & high/low fence system
Motor Configuration: 120 VAC 60 Hz, Universal
Amperage: 15A
Cord Length: 116"
Sold and Shipped as Full Set Only with Cart: (no Cartless Option Available)
Motor Continuous HP: 1.5 HP
Motor Peak HP: 4 HP
Saw Dimensions without Cart (Body only): 31-3/4" W x 28-3/4" D x 15-1/2" H
Saw Dimensions with Open Cart (ready to use): 48" W x 29" D x 36" H
Saw Dimensions with Closed Cart (on End/stored position): 26-1/2" W x 29" D x 45" H
Table Dimensions (Retracted): 31-1/4" W x 24-5/8" D
Table Dimensions (Extended): 43-3/8" W x 24-5/8" D
Shipping Dimensions: 32" W x 43" D x 26" H
Shipping Weight (with Cart): 137 lbs
Weight (Saw Only): 84 lbs
Weight (with Cart): 113 lbs
Blade Diameter: 10"
Dado Diameter: 8"
Dado Max. Width: 29/32”
Bevel Angle Range: -1 to 46
Max. Depth of Cut, Blade at 0º: 3-1/8"
Max. Depth of Cut, Blade at 45º: 2-1/8"
Max. Rip Right of Blade (Extended): 25-1/2"
Max. Rip Left of Blade: 9-3/4"
Blade Tilt: Left
Arbor Diameter at Blade: 5/8"
Table in Front of Blade (Max Elev): 7-7/8"
Table Behind Blade (Max Elev): 7-3/8"
Miter Slots T-shaped Dimensions: .754" W x .413" D; "T" .956" W x .157" THK
Main Bearing Size: 62mm OD x 30mm ID x 16mm W
Second Bearing Size: 52mm OD x 25mm ID x 15mm W
Riving Knife/Splitter Thickness: 2.3mm (.090")
Hand Wheel: Effective diameter 6.3"
Belts: Poly-V static dissipative belt
Table Flatness Measured Diagonally: 0.033" Inches
Dust Collection Port Diameter: 2-9/16" Outside, 2-1/4" Inside
Active Dust Collection Blade Guard: polycarbonate, extends 1" right of blade
Blade Guard (Dust Collection) Port Diameter: 1-11/16" Outside, 1-3/8" Inside
Stowed dimensions: 26 1/2" L x 29" W x 45" H
One-turn elevation: Raise and lower the blade in just one turn on the handwheel
