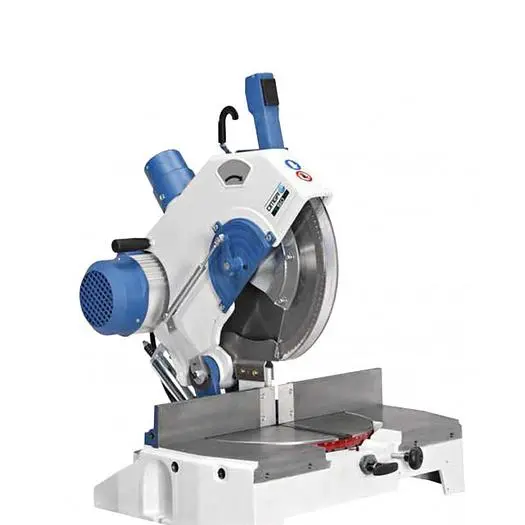

OMGA- T50 350 14'' Mitre Chop Saw

The heaviest duty of all model of OMGA's Precision Mitre Chop Saws (along with the T 53 370). It features a solid cast iron base and head construction. The rotating table rides on roller bearings for maximum smoothness and accuracy. Positive stops at 45, 30, 22 1/2, 15 and 10 degrees on both sides of the rotation and an independently fine tunable one at 90 degrees. A manual locking device for all the intermediate angles provides a great flexibility to this unit. The belt driven transmission and a powerful 3 HP induction motor make of the T 50 350 the ideal tool for heavy duty industrial usage. This machine is designed to be fitted with a wide variety of optional accessories to make it perfect for any application. This precision saw is a multi purpose machine suitable for use in general carpentry, for cutting moulding, picture frames, furniture components and any application requiring precision cutting.
DATA SHEET
ACCESSORIES

Cross cut capacity 90 Deg.: 6 3/4" 6 3/4"
Cross cut capacity 45 Deg.: 4 3/4" 4 3/4"
Max. Depth of Cut: 4 5/16" 4 5/16"
Max. Depth of cut 45 Deg.: 2" N /A
Motor power: 4 3
Max. Beveled Cross Cut: 6 3/4" N /A
Saw bore: 1" 1"
Saw blade diameter: 14" 14"
Arbor Speed RPM: 3200 3200
Dust Chute Diameter: 3 1/8" 3 1/8"
Table Size: 23 5/8" X 17 1/8" 23 5/8" X 17 1/8"
Shipping Weight Lbs.: 255 222
Crated Dimensions: 28" X 28" X 33" 26" X 25" X 30"
Cabinet for Mitre Chop Saws: $1,107.00
Dust Collecting Cabinet: $2,190.00
Table Extension with Scale 4': $1,067.00
Support for scaled table extension: $206.00
Flip over stop Plexiglass at 45 degrees: $156.00
Automatic Descent of the Head (T 50 350): $3,144.00
Pneumatic Horizontal Clamp RH (T 50-T 53): $617.00
Pneumatic Horizontal Clamp LH (T 50-T 53): $617.00
Pneumatic Hold-Down Clamp (T 50-T 53): $726.00
