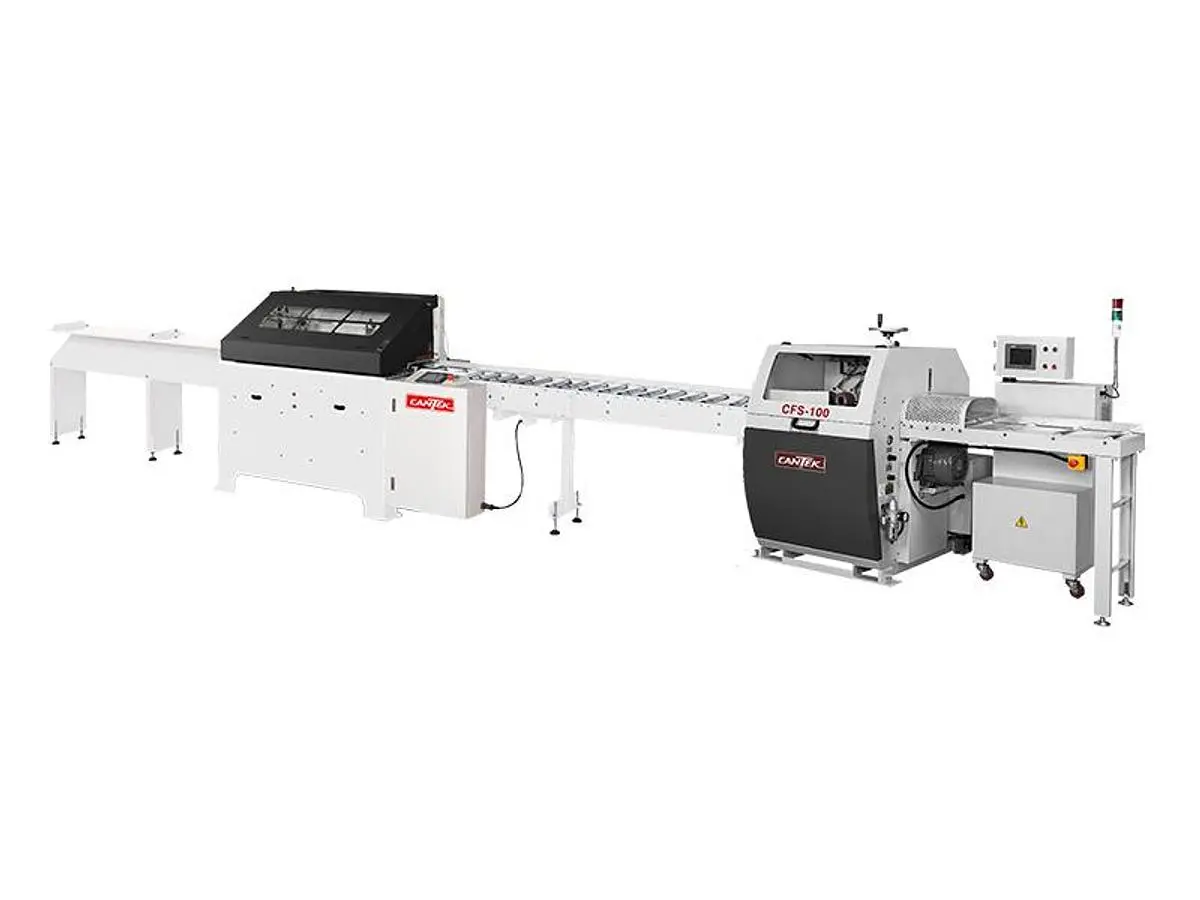

The Cantek CFS100 Automatic Defect Cutoff Chop Saw is the perfect upgrade from your manual cutoff saw with 3 to 5 times higher production output. It is designed to scan for defects in your material which are indicated by a florescent crayon mark. The saw will cut on the crayon mark allowing for fast defect removal. Equipped with several cutting modes like fixed, sequential, defect cutting modes the operator can select the program most suited to their needs. The powerful 10HP motor and 18” blade provide for effortless cutting from 11.8” (w) x 2.75” (t) or 5.9” (w) x 3.9” (t). An optional feature is available for cutting thin material down to 0.078” (2mm) which is ideal for lamellas for engineered flooring.
For flooring companies, the CFS100 can be combined in-line with our EM12 End Matcher for a highly efficient defecting & end matching solution.
Ideal for the defect cutting wood mouldings, wood flooring, finger joint blocks, wood paneling and more!

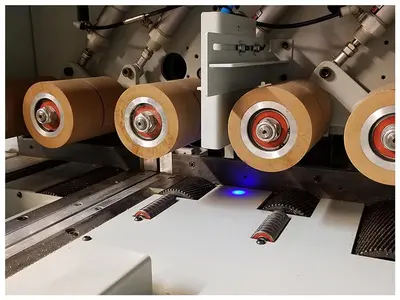

Machine scans for defects marked with a florescent crayon allowing for high-speed defecting
Provides 3 to 5 times higher production rate than manual cut-off saws.
5% increase in material yield over manual cutting operations
+/- 1mm (0.0393”) accuracy
Safe operation with automatic feeding and comprehensive safety guards
Partial optimization with sequential and fixed part cutting functions or simply cut out defects
Key Advantages
User friendly touch screen control with on board synoptics, cutting counter, and menu based cutting modes

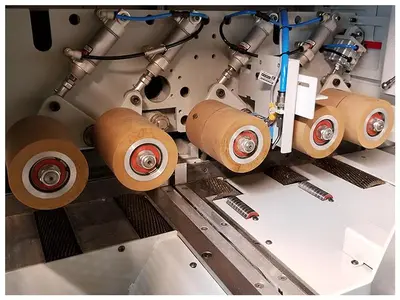

Servo driven feed motor for fast accurate motion and position control
Compact design requires less space than manual cutting setups
18” diameter blade provides a large cross cutting capacity
Powerful 10HP motor running at 3200PRM
Adjustable automatic trim of front and tail of the workpiece
48″ (1.2 meter) long infeed table (Longer available on request)

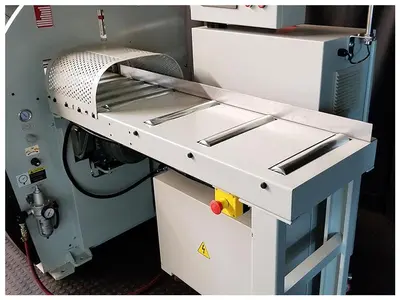

40″ (1 meter) long flat outfeed table
Defect blowing system combined with computerized logic control permits the blowing time and the length of defect to be set as desired
Specifications
Cutting Range
Max. Cutting Range (WxH) – 11.8” x 2.75” (300x70mm) OR 5.9” x 3.9” (150x100mm) with 18” Blade – Inches = mm x .03937)
Min. Thickness = 0.4” (10mm) (Optional Thin Hold Down Device available to min thickness .078” (2mm)
