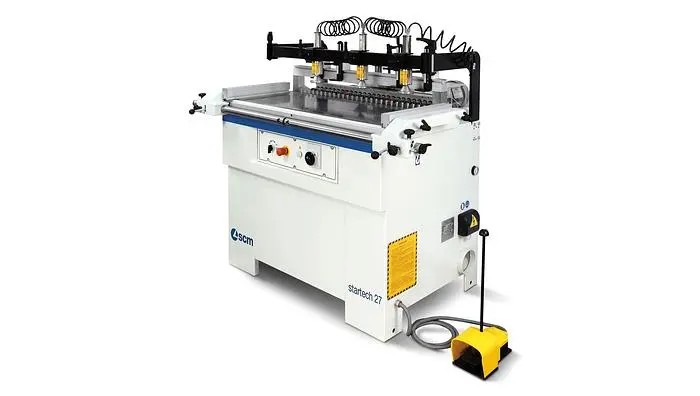

MiniMax Startech 27- 3 Phase 27 Hole In-Line Boring Machine

Ideal for boring operations on panel.
New models with 27 and 21 spindles.
Rich basic equipment: it is complete with all accessories such as pnematic head adjustment, spindles with quick attachment, lateral guides L=3mm with reference stops for panel positioning.
Advantages
Convenient selector, as standard, for the 0°- 45°- 90° automatic pneumatic head rotation.

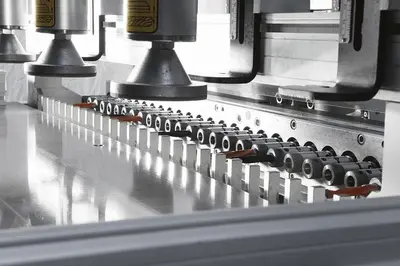

Rapid set up due to the 21/27 spindles with quick-release fittings.
Precise and practical with the nonius decimal scale and micrometric guides travel.
5 position revolving turret for always setting the correct depth.

Startech: 27 - 27 - ; 21 - 21 -
Number of spindles: 27 - 27 - n.; 21 - 21 - n.
Centre distance between spindles: 27 - 32 - mm; 21 - 32 - mm
Spindles rotating speed: 27 - 3000 - rpm; 21 - 2800 - rpm
Spindles motor power: 27 - 2 - Hp; 21 - 2.4 - Hp
