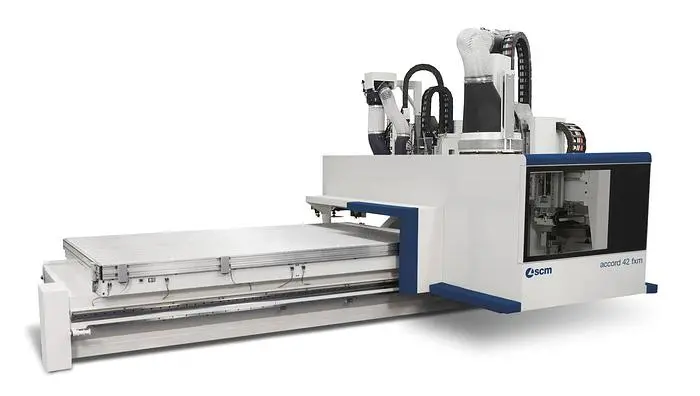

NEW SCM ACCORD 42 FXM
Overview
CNC machining centre with mobile gantry structure and fixed worktable designed for process solid wood elements. It consistently guarantees the best performance in terms of quality and finish, even during the most demanding machinings.
VERY HIGH PRODUCTIVITY
Combined machining head with 3 and 5 independent axes.
The alternate use of the two routing units reduces the cycle time: while one unit is working, the other performs the tool change in masked time.
HEAVY DUTY PROFILING
The PRISMA machining heads with 5 interpolating axes are designed for the processing of solid wood. The ideal solution for windows, doors and stairs.
RELIABLE TECHNOLOGY
Multi-function worktable suitable for any need of referencing and locking.
INTELLIGENT PROGRAMMING
Simple and intuitive programming, thanks to the MAESTRO software that includes modules for different applications.
Specs
Working areas (X-Y-Z axes dimensions): 4970x1600x350 mm; 6170x1600x350 mm; 4970x2120x350 mm; 6170x2120x350 mm
Axes (X-Y-Z axes max. speed): 95-90-30 m/min
Machining head (5 axes electrospindle motor power (max.)): 12 kW
Machining head (3/4 axes electrospindle motor power (max.)): 21 kW
Machining head (5 axes electrospindle rotation speed (max.)): 24000 rpm
Machining head (3/4 axes electrospindle rotation speed (max.)): 24000 rpm
Tool stores (Tool store on machining head): 12 positions
Tool stores (Rear tool store): 48 positions
Tool stores (Front tool store): 16 positions
Drilling unit (Vertical and horizontal spindles (max.)): 26 n.
Drilling unit (Rotation speed (max.)): 8000 rpm
