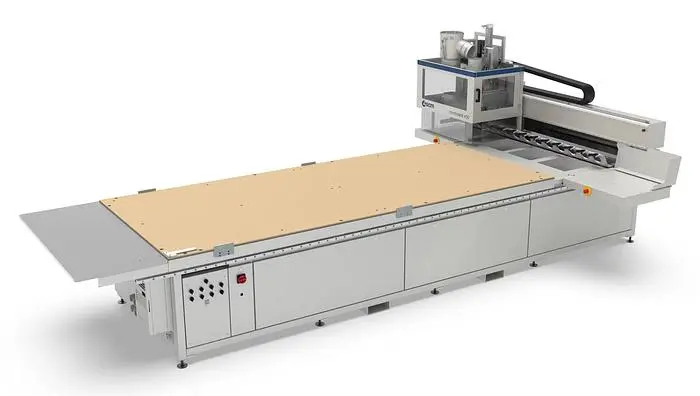

NEW SCM MORBIDELLI X50
Overview
morbidelli x50 is an entry level CNC Nesting Machining Centre with wide equipment of routing and drilling tools, satisfying any requirement in the woodworking industry.
HIGH GRIP VACUUM
New worktable that among its features has one that sets it apart from all others: a deflector capable of evenly distributing the vacuum across the entire surface for maximum efficiency.
S.A.F.E. – SAFE, ADVANCED, FIXED EQUIPMENT
Unique system on the market able to guarantee safety and the operator protection. It allows to have all moving parts lighter, thus allowing greater dynamism.
SMS – SPOILBOARD MANAGEMENT SYSTEM
Providing the customer with always up-to-date information on the status of their spoilboard, notifying when it needs to be rectified and when it should be replaced.
XS DEVICE
Small pieces that do not reach the stops? Not a problem anymore with the removable XD Device to reference all pieces on the spoilboard.
Specs
Working areas (X-Y axes dimensions): 2556x1296 (100x51) mm (inches); 3756x1596 (147x62,8) mm (inches); 3756x1896 (147x74,6) mm (inches); 3156x2216 (124x87) mm (inches); 4356x2216 (171x87) mm (inches)
Axes (Vectorial speed X-Y axes “PRO-SPEED” version): 35 (115) m/min (ft/min)
Axes (Z-axis panel passage): 140 (5,5) mm (inches)
Routing unit (3 axis motor power (up to)): 9,5 (12,2) kW (hp)
Routing unit (Rotation speed (up to)): 24000 rpm
Routing unit (Available tools on tool changer (up to)): 12 positions
Drilling unit (Independent vertical spindles (up to)): 12 n.
Drilling unit (Independent horizontal spindles (up to)): 6 n.
Drilling unit (Rotation speed (up to)): 8000 rpm
Drilling unit (Integrated blades (up to)): 1 n.
Drilling unit (Integrated blade in X, diameter): 125 (4,9) mm (inches)
