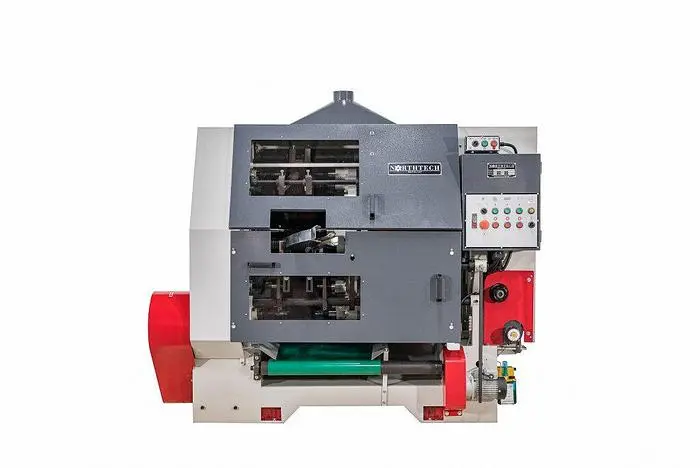

NT-ATS600 AUTOMATIC TURNING SANDER

The ATS600 is a high production capacity sander for varying shaped parts, often produced by a lathe. This model has a capacity of up to 24″ with larger models available.
The ATS600 is a high production capacity sander for varying shaped parts, often produced by a lathe. This model has a capacity of up to 24″ with larger models available.

Machine hp: 8.625 HP
Voltage, frequency: 230/460 Volt 60HZ
Phase: 3 Phase
Amp requirement: 31/15.5 Amps
1st head: 1/2 HP Brush Sander
2nd head: 1/2 HP Brush Sander
3rd head: 1/2 HP Brush Sander
Brush motor hp: 5 HP Spindle Turning Motor
Feed hp: 1/2 HP
Drive system: Rotating Turret
Feed speed range: 9-34 Parts Per Minute
Variable feed speed: Mechanical
Elevation hp: 1/2 HP Open Close Turret Motor
Total machine hp: 8.625 HP
Approved electrical parts: CE Approved Parts
