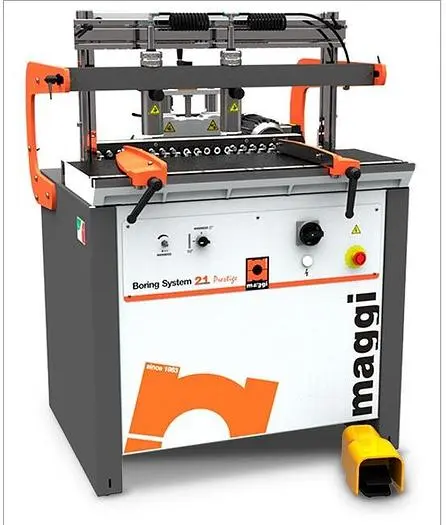

MAGGI System 21 Prestige Construction/Line Borer

USD $7,650.00
1 available
Overview
Description

The Maggi System 21 Prestige Boring Machine provides a 21 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set up at any angle
Accurate positioning of the boring unit with digital readout
0 to 2.5'' adjustable drilling depth with patented spiral setting device.
(2) patented quick release material clamps with auto-setting to firmly hold material to table; powerful 2HP motor, 34'' x 15'' cast iron table
Cast iron side fences with ruler and magnifying glass.
Mirror imaging device to ensure quick and accurate set-up of the side fences.
120'' line boring fence with (2) stops; foot actuated pneumatic clamps and drill cycle.
Includes magnetic starter with overload protection and (21) quick change chucks.
Made in Italy
3-Phase Option. Single Phase also available-- add $600.
$349 Flat Rate Shipping

Specifications

Dust outlet: 3''
Net weight: 605 lbs.
Dimensions: 40.5'' x 40.5'' x 50'' Tall
Crated dimensions: 42.2'' x 37.4'' x 40.5'' Tall
Crated weight: 685 lbs.
Shipping: 349
