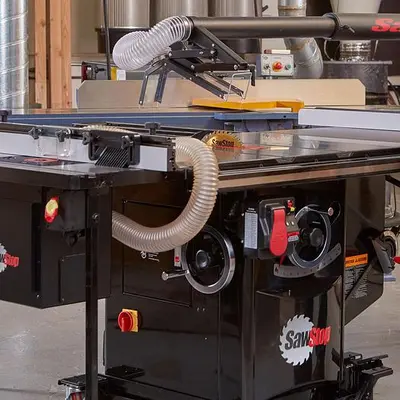

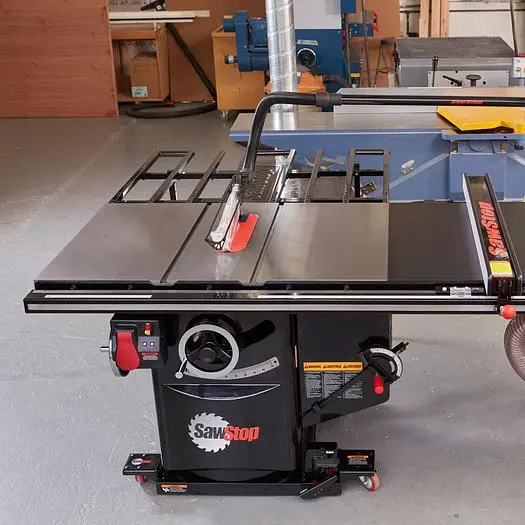

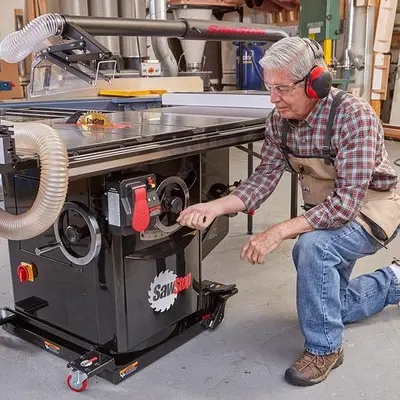

SawStop Industrial Cabinet Saw- 5HP 1ph (52'' T-Glide)

FEATURES

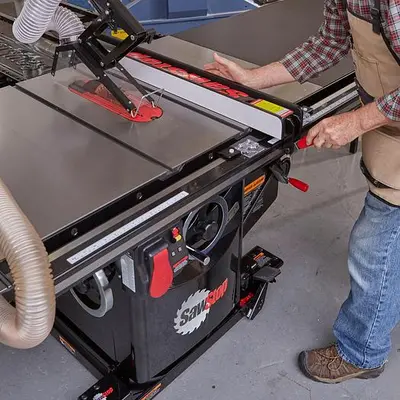

52" Industrial T-Glide Fence System provides smooth operation, an expansive work surface, precision measurement and sure lockdown without deflection.
Durable craftmanship and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments.

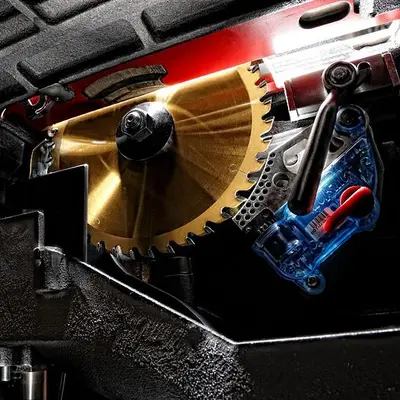

SawStop Safety System stops on contact with skin.
ASSEMBLY: 5HP, 1ph, 230v 60Hz. Industrial Cabinet Saw with 52” Industrial T-Glide fence system, rails & extension table
Included Items
(2) Cast Iron Extension Wings
(1) Miter Gauge
(1) Dust Collection Blade Guard
(1) Riving Knife
(2) Blade Wrenches
(1) Push Stick
(1) 10” Blade
(1) Table Insert
(1) Standard Brake Cartridge
(1) Owner’s Manual
(2) Hardware Packs
(1) 3mm Hex Key
(1) 5mm Hex Key
(1) 8mm Hex Key
(1) Blade Spacing Adjustment Gauge
SPECIFICATIONS
52" Rip Capacity:ICS51230: 52" T-Glide Fence Assembly
Motor configuration 2:ICS51230: 5 HP, 1 phase, 230v, 19.7 A, 60Hz, TEFC
Assembled weights - w/ 52 in fence systems:685 lbs. (approx weight, actual weight varies by motor size)
Weights - table saw only:530 lbs. (approx weight, actual weight varies by motor size)
Arbor Runout0.001" Maximum allowable runout
Dust collection blade guard:polycarbonate, extends only 1-3/16" to right of blade
$425 Flat Rate Shipping (excludes Alaska & Hawaii)

Horsepower: 5HP
Dimension: 85 1/4" w, 36 1/2" d, 34" h
Motor option(s) (60hz tefc): 3, 5, 7.5 HP available
Overall saw dimensions 52 in: 85 1/4" W x 36 1/2" D x 34" H
Saw body footprint: 20" W x 25" D (Cabinet)
Cast iron table: 24" W x 30" D
Cast iron table (w/ extension wings): 44" W x 30" D
Extension wings: 10" W x 30" D each
Extension table 52 in: 40" W x 30" D
Shipping weights - w/ 52 in fence systems: 787 lbs (4 boxes)
Shipping dimensions (saw body only): 40" W x 40" D x 40" H
Shipping weight (approx.): 640 lbs (table saw only)
Blade: 40-tooth Titanium, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0º: 3 1/8″
Max. depth of cut, blade at 45º: 2 1/4"
Max. rip, right of blade - 52 in: 52 1/2" (w/ optional 52" rails)
Max. rip, left of blade: 12 1/2"
Dado diameter: 8" (requires dado brake cartridge & insert)
Dado max. width: 13/16
Arbor diameter at blade: 5/8"
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10 3/4"
Table behind blade (max. elevation): 10"
Arbor runout: 0.001" Maximum allowable runout
Table flatness measured diagonally: 0.010" Maximum gap
Belts: 2 V-ribbed belts - arbor b. static dissipative
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25º
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots t-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11 1/8" center-to-center
Miter slots info: 5 1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Blade guard: (dust collection) port diameter 1-1/2" Outside, 1-1/4" Inside
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 8" diameter, cast iron w/ chrome handle
Riving knife / splitter thickness: 0.090" (2.3 mm)
