Cantek MX330 Edgebander

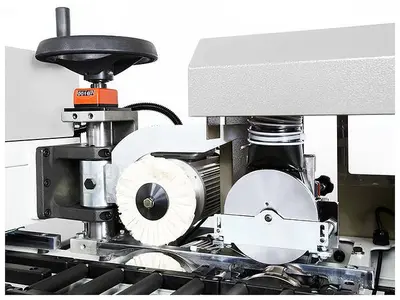

The Cantek MX330 Automatic Edgebander is a compact entry-level edgebander with the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX330 can output high-quality edges on cabinet parts and more. This machine is equipped with end trimming, flush trimming, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.

Compact design makes it the ideal edgebanding solution for small workshops.
Precise adjustments for optimum edge quality.
Castor wheel adding mobility to your edgebander.
Available in 230V 1 phase.

KEY ADVANTAGES
PLC control system with LED display and keypad.

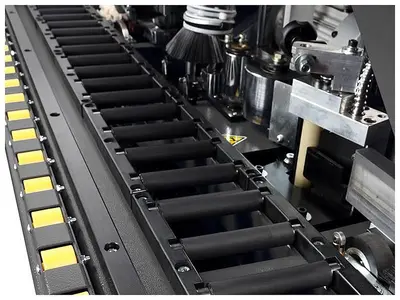

Workpiece is fed by upper conveyor belt & idle table rollers.
Edge coil support plate: Ø 800 mm (31.5″) for PVC/ABS.
Automatic edge feeding with a thickness capacity of 0.4-3 mm.
Coiled edge bands up to 2 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

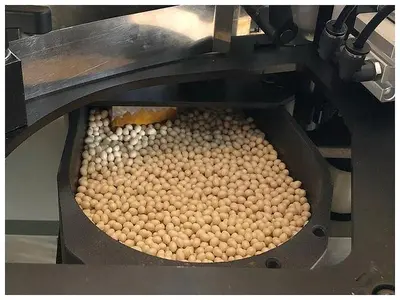

2 kg (2.6 lb) Teflon-coated hot-melt glue pot.

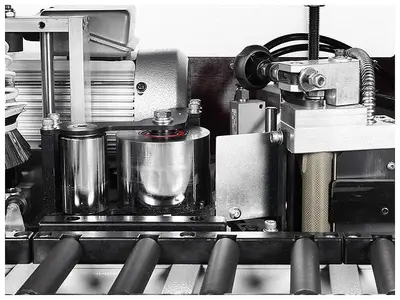

Spring-loaded pressure unit with (2) chrome pressure rollers.
Heavy-duty pressure beam with extendable workpiece support.
Heated infeed fence for pre-heating the panel for optimum glue penetration.
Mobility wheels allow you to move your edge bander in and out of position to save you work space.
Mechanical digital readouts for convenient and quick adjustment to the working units & thickness.

Shipping weight: 1021 lbs.
Shipping dimensions (LxWxH): 89'' x 29'' x 52''
Machine weight: 766 lbs.
Max. machine dimensions (LxWxH): 110'' x 61'' x 49.4''
Air: 6 CFM / 85 - 100 PSI
Total connected power: 4.5 HP
Dust Collection outlet dia.: 2 x 4'' = 800 CFM
Working table height: 33.7''
Min. panel length: 9.45''
Min. panel width: 4.73''
Edge thickness: 0.0158''~0.0787''
Panel thickness: 0.472~1.77''
Feeding Speed: 16.4 FPM
Electrical requirements: 230/1/60 = 30 amps
