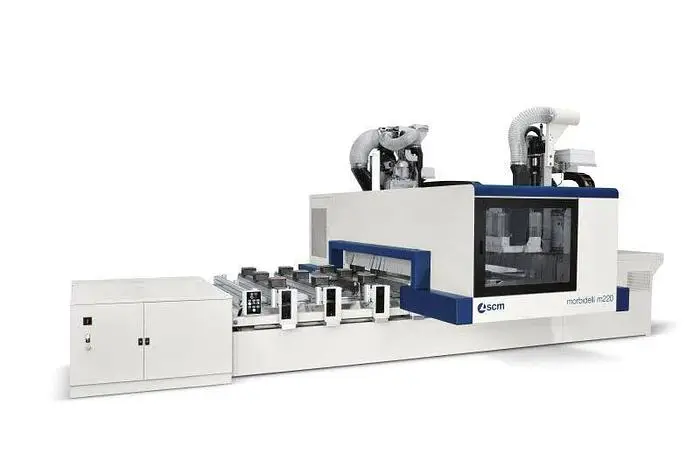

NEW SCM MORBIDELLI M220
Overview
The machining center with double drilling head reduces drilling cycles by 70%, compared to other machining centres on the market.
Just few clicks to design and manufacture pieces of any shape, the machine is run by Maestro cnc software which has specific modules for every production cycle.
70% FASTER ON DRILLING CYCLES: TOP QUALITY
Double drilling heads with independent Y-axis studied for simultaneous machining on an single panel or on 2 different panels.
FREEDOM AT 360°:
ALL FREEDOM
Optimizing the space within your factory thanks to the Pro-Space solution.
Maximum ergonomic load, the absence of perimetral protections allows the access to the work table from all sides of the machine.
TOTAL CUSTOMIZATION:
ALL FLEXIBLE
The TV FLEXMATIC automatic work table allows the management of a variable number of pods on the bar, according to the dimensions and shape of the work piece to be machined, in order to always have the best holding without risks of collision.
WORK SIMPLE. WORK DIGITAL: MAESTRO CONNECT
morbidelli m220 is integrated with Maestro connect, the highly innovative "IoT" (Internet of Things) tools platform, enabling to collect, monitor and analyze the data of the machine, improving the services available to the customer. The software Maestro cnc offers the easiest programming system to program in a fast and intuitive way.
Specs
Working areas (X-Y axes dimensions): 3110x1620 mm; 3710x1620 mm; 5510x1620 mm
Axes (Vectorial speed): 56 (Pro-Space), 78 (Pro-Speed) m/min
Axes (Z axis panel passage): 180 mm
Routing unit (Motor power (max.)): 15 (20,5) kW (hp)
Routing unit (Rotation speed): 24000 rpm
Routing unit (Available tools on tool changer (max.)): 60 places
Drilling unit (Independent vertical spindles (max.)): 34 n.
Drilling unit (Independent horizontal spindles (max.)): 22 n.
Drilling unit (Rotation speed (max.)): 8000 rpm
Drilling unit (Integrated blades in X): 2 n.
0-90° blade unit (Motor power (max.)): 2,2 (3) kW (hp)
0-90° blade unit (Rotation speed (max.)): 6000 rpm
Auxiliary routing unit (Motor power (max.)): 4,5 (6) kW (hp)
Auxiliary routing unit (Rotation speed (max.)): 18000 rpm
