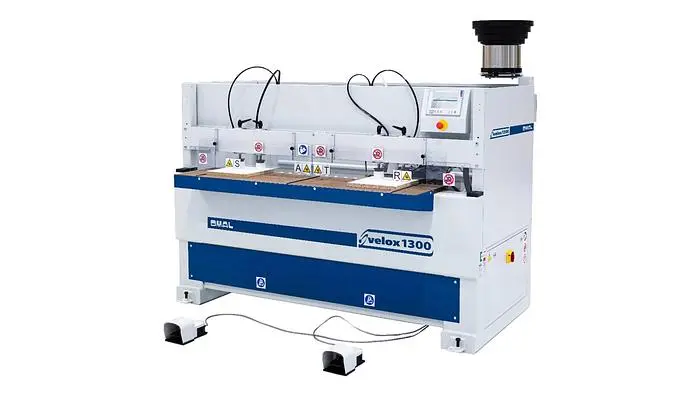

NEW SCM OMAL VELOX 1300
Overview
The OMAL Velox 1300 is a Horizontal Bore, Glue and Dowel and numerically controlled machines to drill, glue and insert dowels on horizontal pieces. The OMAL system of bore and dowel yields a cycle time of approximately ONE second for each bore, glue and dowel insertion when holes are on 32mm intervals.
The PLC Touch Screen Control is user friendly, versatile software for writing and storing programs which can be written parametrically and are generated using graphical icons
The dowel insertion revolver verifies a dowel is present via fiber optic sensor while a second dowel is inserted. The OMAL “SURE SHOT” revolver system guarantees a dowel is inserted every time.
Four clamps are standard on the machine. The clamps will hold panels horizontally for edge processing.
OMAL’s width Laser Sensor will automatically measure the part and populate the program list for the part width to determine dowel spacing based on program call.
Specs
Panel length: 20 mm (3/4”) – 1300 mm
Panel width: 40 mm (1.57”) – ∞
Panel thickness: 10 mm (3/8”) – 25.4 mm (1”)
Installed power: 10 Kw
Compressed air: 6 BAR
Dust extraction hood: 60 mm (2 3/8”)
Dust extraction: 250 cfm
Width “X” CNC: 1300 mm (51”)
Depth “Y” manual: 40 mm (1.57”)
Vertical “Z” manual: 40 mm (1.57”)
Voltage: 220V/60Hz/3~
Net weight: ~1000 kg (2200 lbs)
