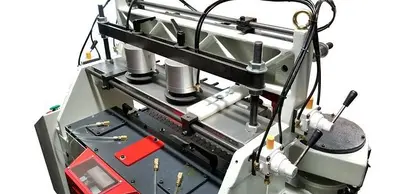

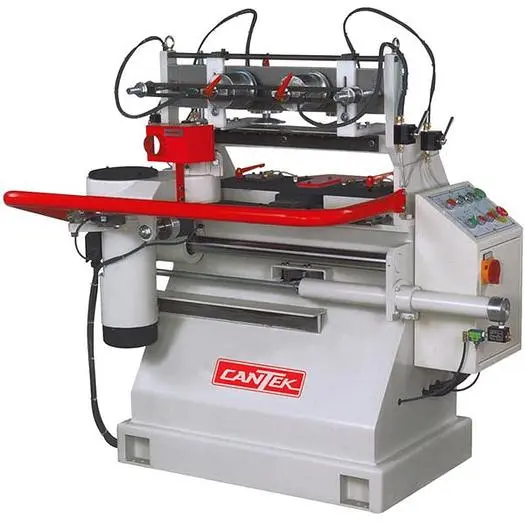

Cantek JDT75 Automatic Dovetailer- 3 PH 2 HP

Features
21500 RPM spindle rotation for an extremely fine finish on dovetail joints
High RPM spindle allows for precision machining of plywood & solid drawer sides
Independent adjustment of both the tenon & the mortise depth for precise fitting of dovetail joints
Dust hood for milling cutter
Safety rail in front of spindle motor
High quality pneumatics for smooth feeding, resulting in quality cutting
Cast iron base to ensure vibration free cutting
Automatic lubrication system to spindle stroke
3 cycle speeds for best finish results

Working length: min: 7.87″ max: 59″
Working width: min: 2.36″ max: 16.93″
Vertical material thickness: 0.275″ to 2.36″
Horizontal material thickness: 0.394″ to 1.18″
Fixed pitch: 25mm
Spindle speed: 21,500 RPM
Cutter shank diameter: 0.472″ (12mm)
Spindle motor: 2HP
Feed motor: 2HP>
Feed speeds (3): 16, 22, 31 cycles/min
