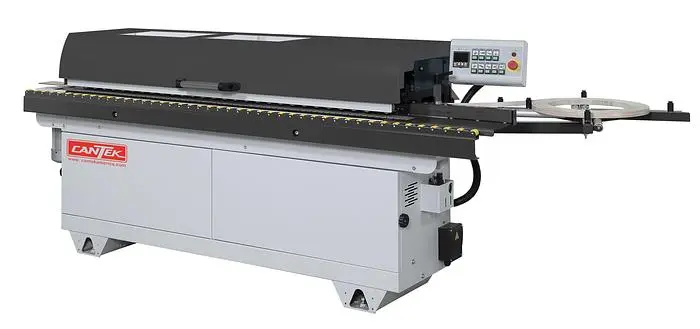

Cantek MX350M Automatic Edgebander with Pre-Milling

**Also available MX350 (230V 3PH) High Frequency ............. $33,700
The MX350M from Cantek is designed to be a compact & durable entry level edgebander with pre-milling function offered at an affordable price. This machine is equipped with pre-milling, end trimming, flush trimming, PVC scraping, and buffing.  User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm & wood strips up to 4mm.
PLC control system with LED display and keypad
Work-piece is fed by chain
Automatic edge feeding with a thickness capacity of 0.4–3 mm
Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

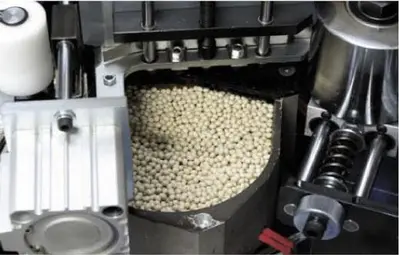

1.2 kg (2.64 lb) Teflon-coated hot-melt glue pot

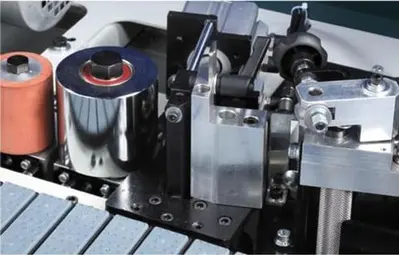

Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
Pre-milling unit with (2) counter rotating diamond cutterheads for precise edge quality.

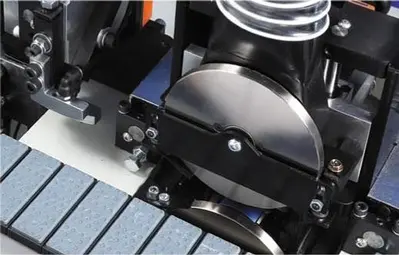

8800 RPM dual saw blade (80mm / 3.15”) end trimming unit

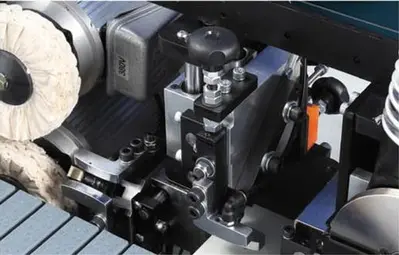

10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
Top & Bottom trimmers use copy tracing wheels for optimum finishing results without scratching the face of the workpiece
Radius scraper with 2mm radius

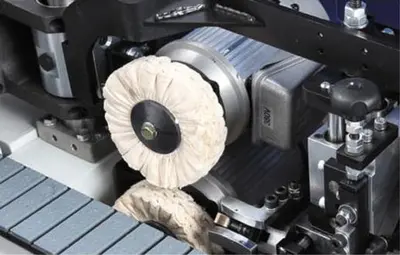

2800 RPM top & bottom buffing units
Heavy duty pressure beam with extendable work-piece support
Heated infeed fence for pre-heating the panel for optimum glue penetration
Mechanical digital readouts for convenient and quick adjustment to the working units & thickness

Feeding speed: 7 m/min. 23 FPM
Panel thickness: 12~45 mm 0.472~1.77”
Edge thickness: 0.4 ~ 3 mm 0.0158”~0.118”
Minimum panel width: 90mm 3.54”
Minimum panel length: 90mm 3.54”
Working table height: 856mm 33.7”

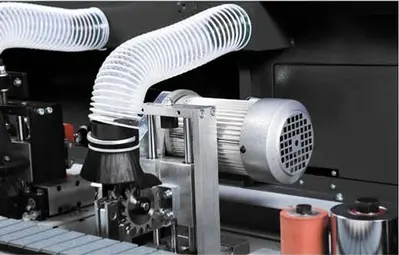

Extraction connection: 100mm 4”
Premilling spindle speed: 9000 RPM
Top & bottom trimmer RPM: 10500 RPM
Max. machine dimensions (LxWXH): 3200 x 1200 x 1200mm 126” x 47 ¼” x 47 ¼”
Machine weight: 528 kgs 1162 lbs
Shipping dimensions (LxWxH): 2820 x 720 x 1320mm 111” x 28.4” x 52”
Shipping weight: 660 kgs 1452 lbs
Edge coil support plate: Ø 800 mm (31.5”), for PVC/ABS
