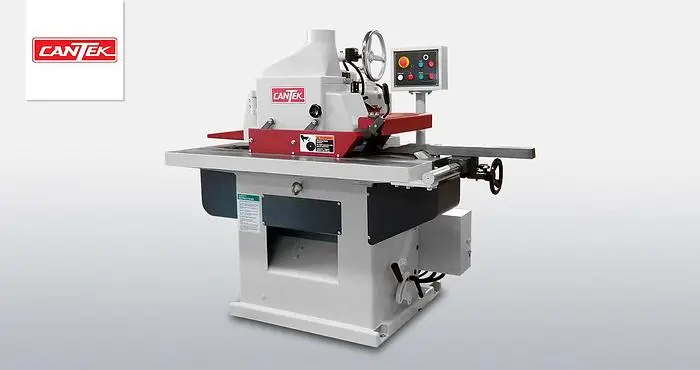

Cantek 10'' Straight Line Rip Saw 303S

Save time and speed up production in your ripping operations.
The Cantek 303S single blade ripsaw is a straight line ripsaw that is the ideal ripping upgrade for those looking to prepare material for a moulder or for producing face frame material.  The 303S automatically feeds the material for consistent rip results. The cast iron feed chain runs on double V guide rails and holds the material firmly for precision straight cutting.  A powerful 10 HP motor with maximum 12” blade provides a cutting depth up to 3.35”.  A micro adjustable infeed fence allows for quick setups to ensure precise rip widths with fast adjustments.
Why Cantek 303S Single Blade Ripsaw?
Rigid machine body consists of a thick welded steel frame with an integral table which is fitted with a sturdy cast column.
Precision built saw arbor constructed to ensure precision cutting without vibration.
Cast iron upper assembly & cast iron table with superior vibration damping for optimum results
Micro adjustable fence by rack and pinion for fast setups with precise results

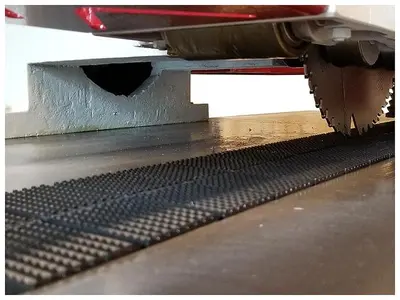

Cast iron chain and track assembly is precision machined and hardened for maximum wear resistance with superior cut quality
Key Advantages

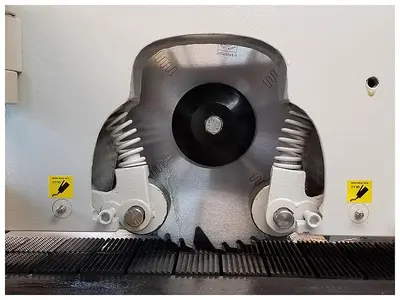

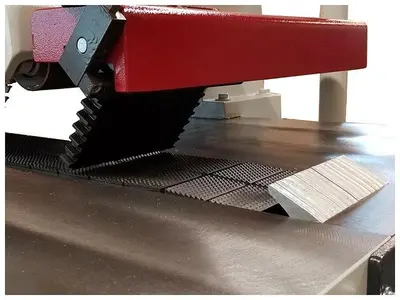

Two rows of anti-kickback fingers for safe operation
Swing down rear table prevents short workpieces and thin edgings from jamming in the machine
Electronic chain lubricator provides consistent lubrication to the chain track for optimum wear resistance
Powerful 10HP motor
Three feed speeds can be externally adjusted for operator convenience
Mechanical digital readout for setting the workpiece thickness
12” blade is included

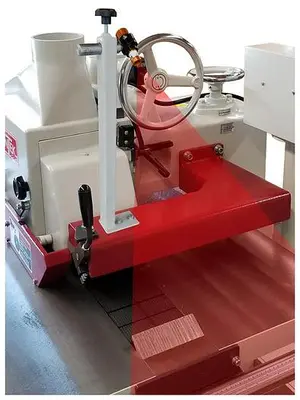

Optional laser light for projecting the cutting line
Specifications

Saw arbor diameter: 1″
Saw blade diameter: 8 – 12″
Saw arbor speed: 4500 RPM
Feed speeds: 3 (50, 65, 85 FPM)
Maximum workpiece thickness: 3.35″
Minimum workpiece length: 8″
Pressure rollers: 4 rows (6 rollers)
Distance between saw and column: 13 ¾”
Arbor motor: 10 HP
Feed motor: 1 HP
Table size: 30″ x 50″
Table height: 31-7/8″
Net weight: 1870 Lbs
Shipping weight: 2310 Lbs
Machine dimensions: 61″ x 38″ x 53″
Shipping dimensions: 59″ x 46″ x 59″
