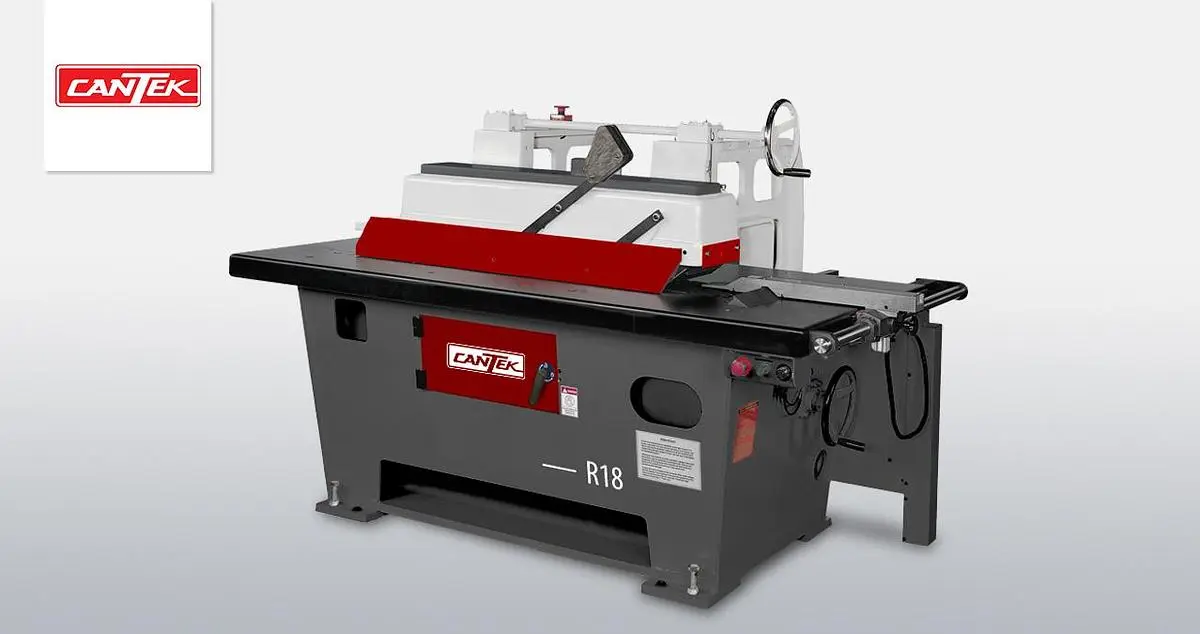

CANTEK R18 BOTTOM CUTTING STRAIGHT LINE RIPSAW

The Cantek R18 bottom cutting straight line ripsaw is designed with performance and added safety in mind. Cutting from below forces the workpiece down on to the feed chain for superior hold down. In addition, the blade can project up above the workpiece to allow the gullet to clear the chips which leads to less heat buildup resulting in longer blade life and improved cut quality. The R18 is capable of producing a glue joint cut up to 12 feet.    The powerful 20HP direct drive ensures optimum feed rates no matter what material or thickness you are cutting.

Key Advantages
Extra heavy-duty machine frame made of thick welded steel and cast iron

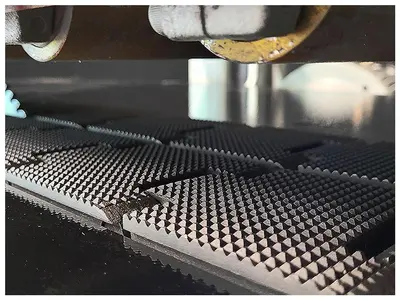

Split chain, double feed track with HRC60 Rockwell Hardened Guideways
Massive steel table with 26” maximum rip capacity

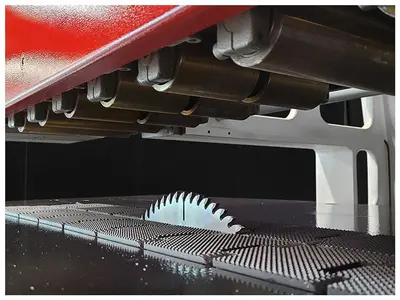

(11) hold down rolls and 41” long chain above the table ensures precision straight-line ripping

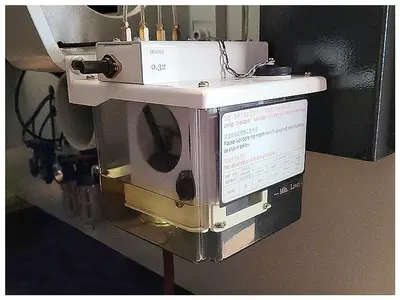

Automatic chain and track lubrication system ensures long life of the chain & track assembly
Saw arbor height is adjusted manually

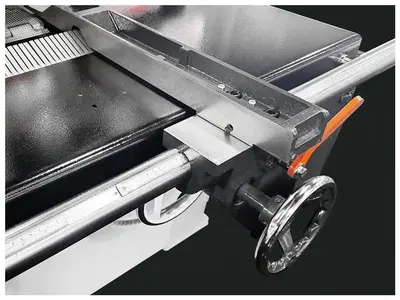

Manual rip fence adjustment by handwheel and rack & pinion with dual inch/metric scale
Manual thickness adjustment with linear scale
Saw arbor brake included

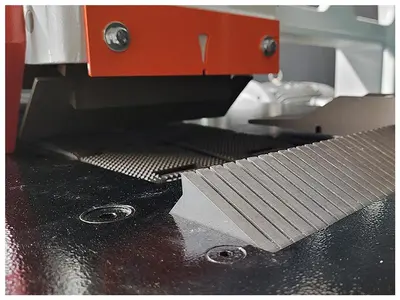

Anti-kickback fingers top and bottom for safe operation
Safety interlock on access door
Comes with 14” rip saw blade: 14mm pin holes on 65mm centers
Laser light to project the cutting line to help with cutting yield. Add $570

Specifications
