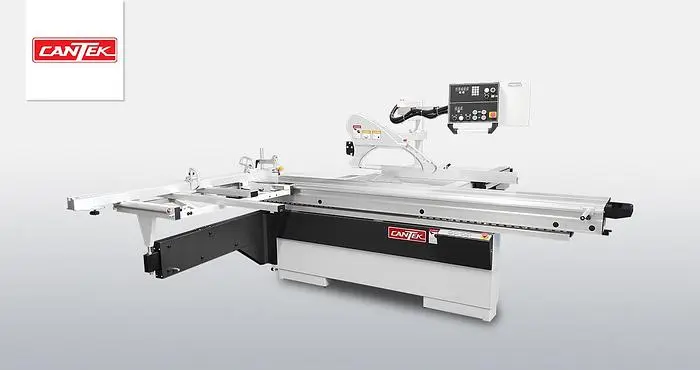

Cantek D405 ANC 1 Axis Sliding Table Saw

Stop walking around your saw with the programmable rip fence.
The Cantek D405ANC 1-Axis Sliding Table Saw is the ideal sliding panel saw for high accuracy cutting of sheet materials for the production of kitchen cabinetry, furniture, millwork operations, and more.  The NC rip fence provides the operator with the added convenience of setting the rip width automatically through an eye level control.  This saves time while providing a high level of accuracy and repeatability.  The 10’ sliding table is made from a precision aluminum extrusion and runs on precision linear guide rails.
Why Cantek D405ANC 1-Axis Sliding Table Saw?
Programmable rip fence saves time & provides high level of accuracy and repeatability
Precision sliding table runs on hardened linear guides for extremely smooth and effortless movement
Powerful 7.5 HP main motor and separate 1HP scoring motor
Ergonomic eye level control panel for setting the rip width, blade height, and blade angle along with on/off switches for the main and scoring motors
Accurate crosscut miter fence for fast length and angle setting
Key Advantages
Programmable rip fence with maximum cutting width of 51″ by means of a precision ball screw
Motorized blade rise/fall
Motorized blade tilting with electronic angle display on control panel
Overhead control panel can be adjusted for operator convenience
Convenient external manual scoring adjustment
7.5 HP main motor with 1HP scoring motor
(3) saw blade speeds for optimum cutting results in various materials

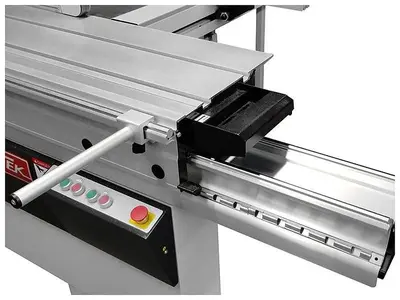

Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides
Aluminum extruded crosscut fence with (2) flip stops with convenient angle adjustment for mitre cuts
Solid cast iron main table which is ground and polished
Heavy-duty outrigger for strong support of workpiece during cutting operations
Overhead CE blade guard with dust port
Complete with eccentric clamp and wedge for solid wood cutting
Specifications
Options
Optional crosscut fence with digital readouts for precise length setting $1,980
Optional digital display for angle of crosscut fence for accurate miter cuts $830

Sliding table dimensions: 126 x 15.5″ 3200 x 395mm
Cast iron table dimensions: 21.6″ x 35.3″ 548 x 896mm
Extension table (rear): 38.7″ x 35.25″ 952 x 896mm
Extension table (front): 32.7″ x 12.6″ 830 x 320mm
Table size: 59″ x 68″ 1500 x 1726mm
Main saw blade (Max.): 16″ 400mm
Main saw bore dia.: 30mm
Max. cutting height @ 90o (355mm): 4.13″ 105mm
Max. cutting height @ 90o (400mm): 5.12″ 130mm
Max. cutting height @ 45o (355mm): 2.75″ 70mm
Main motor power: 7.5 HP
Main blade speed: 3000 / 4000 / 5000 RPM
Scoring blade dia.: 120mm
Scoring blade bore dia.: 20mm
Scoring blade motor power: 1 HP
Scoring blade speed: 8000 RPM
Max. rip cutting width: 51″ 1300mm
Cutting width adjustment: Motorized
Saw blade tilting adjustment: 0~45o (Motorized)
Scoring saw adjustment: Manual
Dust collection outlets: 4.72″ x 4″ 120 / 100mm
Machine shipping dimensions: 83″ x 45.25″ x 44″ 2110 x 1150 x 1120mm
Machine NW / GW: 1228 / 1428 lbs 558 / 649 kgs
Sliding table shipping dimensions: 137″ x 19.3″ x 14.6″ 3480 x 490 x 370mm
Sliding table NW / GW: 310 / 381 lbs 141 / 173 kgs
Rip fence shipping dimensions: 73.25″ x 12.6″ x 13″ 1860 x 320 x 330mm
Rip Fence NW / GW: 90 / 115 lbs 41 / 52 kgs
Machine total weight NW / GW: 1628 / 1923 lbs 740 / 874 kgs
Electrics: 230/3/60 =26.20 Full total Amps
