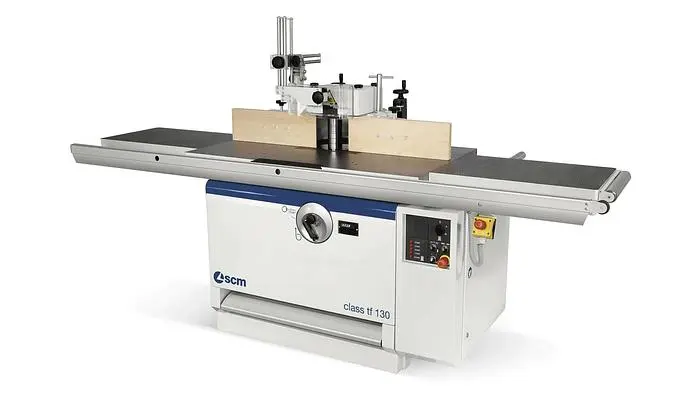

SCM Group CLASS TF 130 Fixed Spindle Shaper

The best solution for every application.
Essential and professional the manual version.
Technological devices in the electronic version that guarantee reduced machine set up times, greater safety and ease-of-use.
Advantages
Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The shaper spindle is surrounded by a cast iron “cup” to protect the internal mechanical components from shavings and sawdust
Set up precision and reliability. The operator easily adjusts every movement thanks to the handwheel with mechanical readout positioned on the machine front.
Maximum set-up speed and ease-of-use. The spindle moulder fence with mechanical programming and digital readouts ensures accuracy to a tenth of a millimetre in positioning the tables so that no more test runs are required to get the desired result

Max. useful spindle length: 180 / 7 mm / inches
Spindle speed: 3000/4500/6000/7000/10000 rpm
Max. diameter of the profiling tool: 250 / 9.8 mm / inches
Max. tool diameter retractable under the table at 90°: 300 / 11.8 mm / inches
Max. diameter of the tenoning tool: 300 / 11.8 mm / inches
Three-phase motor: 11 Hp
