The "flexible" par excellence. Designed to manage tenoning and moulding operations very easily.
Advantages
With the front sliding carriage integrated in the table, the table, the tilting telescopic fence and the protection hood with dedicated armguard, the operator can easily and safely carry out tenoning and profiling operations.

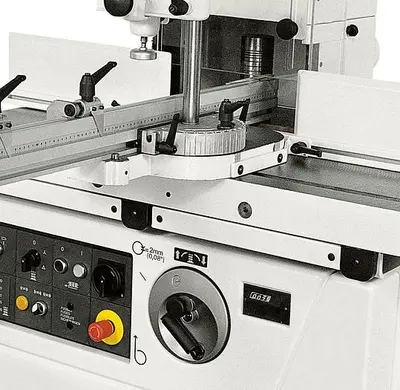

Set up precision and reliability. The operator easily adjusts every movement thanks to the handwheel with mechanical readout positioned on the machine front.
Spindle moulder fence with mechanical programming: maximum set up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.
Max. useful spindle length: 180 / 7 mm / inches
Spindle speed: 3000/4500/6000/7000/10000 rpm
Max. diameter of the profiling tool: 250 / 9.8 mm / inches
Max. tool diameter retractable under the table at 90°: 320 / 12.6 mm / inches
Max. diameter of the tenoning tool: 300 (350) 11.8/13.78 mm / inches
Three-phase motor power: 11 Hp
Max. squaring stroke of sliding table saw: 1000/39.25 mm / inches
