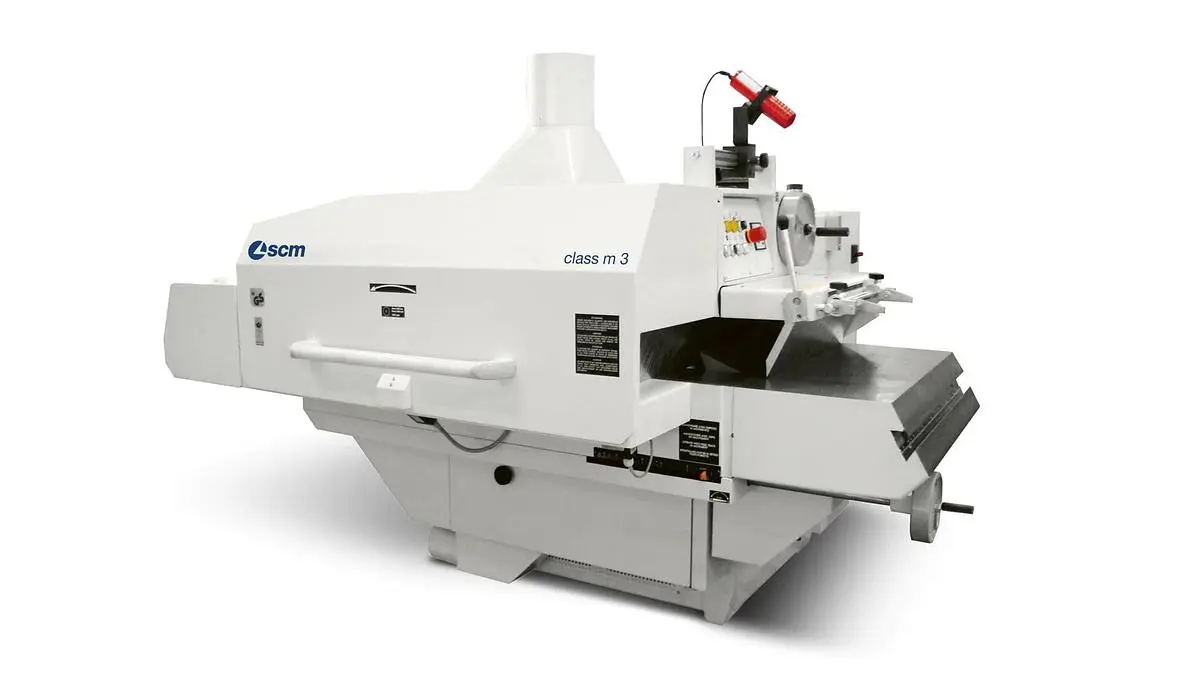

SCM CLASS M 3 Multi-Blade Gang Rip Saw

Compactness and simplicity of construction for a high performance multiblade.

Advantages
Anti-kickback finger barriers
The SCM multiblade rip saw is equipped with 4 anti-kickback finger barriers: three top and one bottom and a chip deflector screen between the three top barriers.

Customisation for any requirement

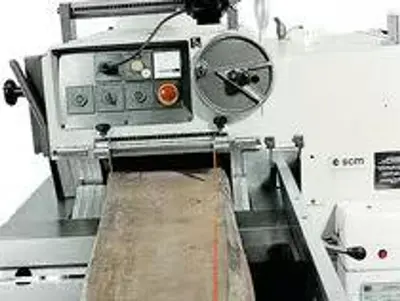

Laser beam cuttin line reference. Some typical uses:
- extraction of irregular planks, without using fences
- selection of clear parts of planks with knots and fissures using rapid movement fence with single blade

Programmable turret fence
6 stop-turret programmable fence with pneumatic pedal positioning. It enables the speedy reference movement when different cutting programs are fitted on same shaft sleeve.

Extra saw blade shaft sleeve
With the possibility of having the blades always pre-set for repetitive cutting programs.

Feed track width (mm): 300
Maximum blade diameter (mm): 350
Minimum cutting length (mm): 390
Continuously adjustable feed track speed (m/min): 6-48
Motors power (kW (HP)): 18,5/25,5/37 (25/35/50)
