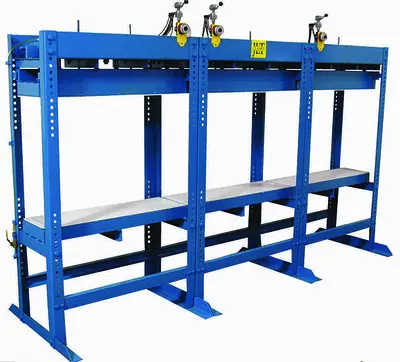

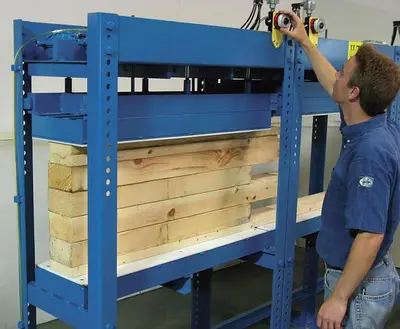

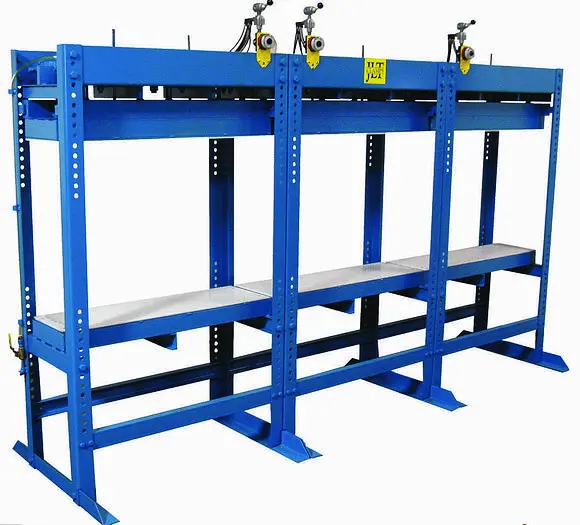

JLT- Mini Pod Press #78H-12W-84L-40H-M2

Face Glue A variety of Solid Wood Components up to 12”Wide
Space Saving Design, Easy to Use and Precise Straight Line Clamping
Features & Specs:
Material Capacities:
12″ Wide x 84″ Long
Pod Press is powered by a total of (18) 30 Square Inch Diaphragm Cylinders
Versatile Easy to use Operation for a Variety of Material Sizes
Face Glue Short 40” Block or Press Long Entry Door Stiles up to 10’
Dial Regulators for Fine and Consistent Control of Clamping Pressure
Longer Machines have Multiple Dials for even more Control
Pyramid Different Size Glue Ups
Modular Design

Adjustable opening: 0″ – 40″ of Stackable Depth
Maximum pressure: 10 Tons Per 3-1/2′ Section @ 110 psi
Machine footprint (10′ long model): 128”L x 36”W x 76”H
