Function and technology optimally combined
1-person operation and smooth finished cut thanks to panel lowering device. There is no need to turn the panel and the cut strips can be directly divided vertically.

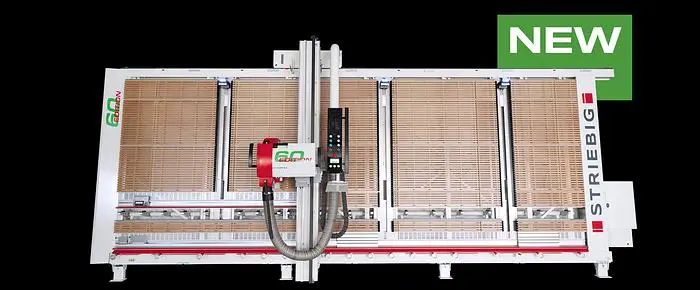

STRIEBIG EDITION 60 PAV

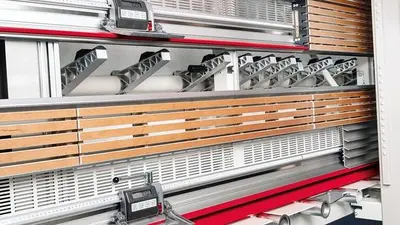

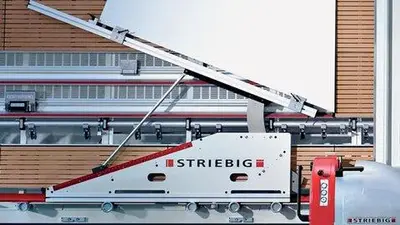

Strong and compact panel lowering device (PAV)
The integrated panel lowering device of the EDITION 60 comprises two panel lowering units. It can be used for panel materials up to 3000 × 2150 mm and up to 160 kg (80 kg/PA unit).
With an additional panel lowering unit (optional), panels up to 5000x2150mm and weight up to 240kg (80kg/PA unit) can be processed.
Extensive equipment package
The comprehensive equipment package of the EDITION 60 ensures efficient cutting.

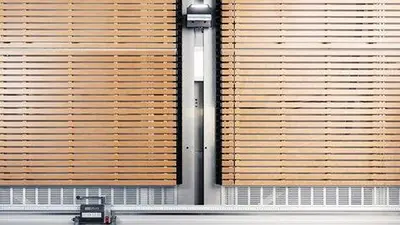

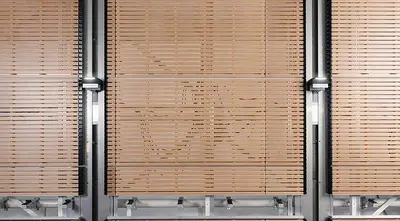

Wooden support wall TRK1 with integrated small parts support made of wood

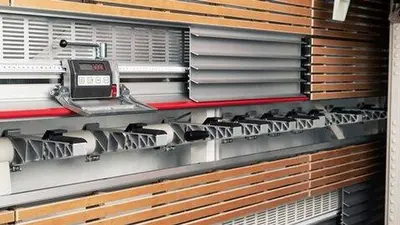

Panel lowering device (PAV) with two panel lowering units
Pneumatic clamping of the motor carriage
Pneumatically braked support rollers
Digital measuring system DMS-Y, incl. fine adjustment
Digital measuring system DMS-X, incl. fine adjustment
Laser-supported display of the horizontal cut

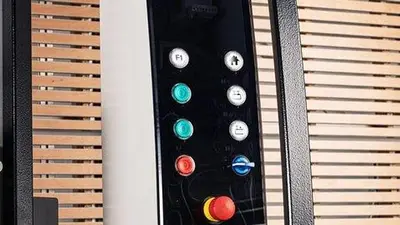

Clear push-button control for easy operation

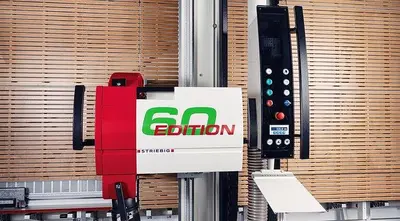

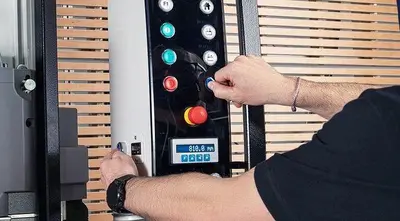

The EDITION 60 is operated by means of a clear push-button control. The panel lowering device can be moved quickly and precisely by means of 2-hand control.
The LED lights on the panel lowering units guide the operator safely through the sawing process.
Weight of the saw: ca 1.300 kg
Cutting depth: 80 mm
Saw motor power: 5,5 kW (7,5 HP)
Saw blade diameter: 300 mm
Saw blade bore: 30 mm *1
Emission sound pressure level at the workplace lpa: 83 dB *2
Saw blade speed: 4800 U/min
Panel lowering device (pav): 2 PA units (opt. 3rd PA unit)
Max. panel weight per pa unit: 80 kg
Max. panel thickness in clamping unit: 60 mm
Feed rate of pav under load: 5 m/min
Feed rate of pav without load: 10 m/min
1 extraction connection: ø 140 mm
Compressed air connection: 6-10 bar
Wattage: 8,8 kW
Mains connection: 3 x 400 V / 50 Hz
