Large precision ground table provides a stable work surface.
Cast iron base offers a steady platform.

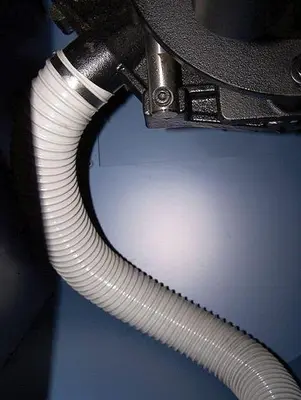

Fully enclosed cabinet and blade dust shroud for better dust management.
Precision ground 1” arbor.
Wide stance trunnion features a left tilt blade.
Poly V-belt drive smoothly transfers power to the blade.
Hydraulic assisted blade lift mechanism for easy movement.
Large chrome hand wheels allow easy movement./
Includes digital readout of blade tilt.
Riving knife splitter for added safety against kick-back.

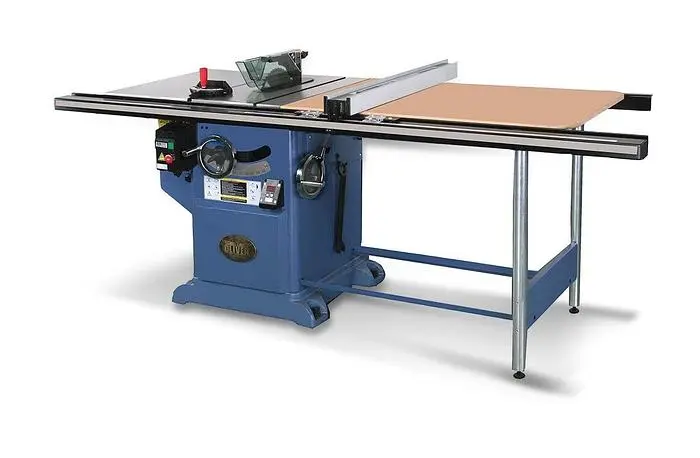

Optimus T-square fence available in 52” rip capacity.
52” rail includes wood side table and (1) cast iron extension wing.
Optional rear support table available (pictured)
Magnetic controls with emergency off switch.

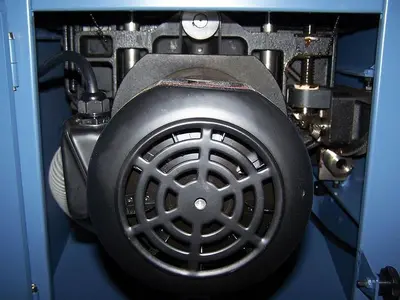

Powerful TEFC motor available in single phase.

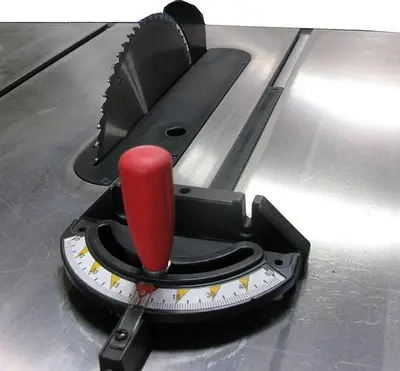

Miter gauge included.
Blade not included.
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.
Model Number: 4045.003
Ph: 1Ph
Rail Length: w/Side Table w/52" Rail
Stock No. (5HP, 1Ph): 4045.003.A001
Blade Diameter: 12"
Arbor Diameter: 1”
Blade Tilt: Left
Arbor Speed: 3,450 RPM
Maximum Depth of Cut at 90°: 4"
Maximum Depth of Cut at 45°: 2-2/3"
Maximum Width of Dado: 13/16"
Maximum Cut to Right of Blade: 52” Rail
Maximum Cut to Left of Blade: 12"
Dust Port Diameter: 4"
Table Dimensions w/o Extensions: 30-3/4”D x 24”W
Wing Size: 30-3/4” x 12”
Table Height: 36"
Motor 1Ph: 5HP, 1Ph, 220V Only (18 Amp)
Overall Dimensions: 75”L x 45”W x 41”H
Net Weight: 550 lbs.
Gross Weight: 750 lbs.
