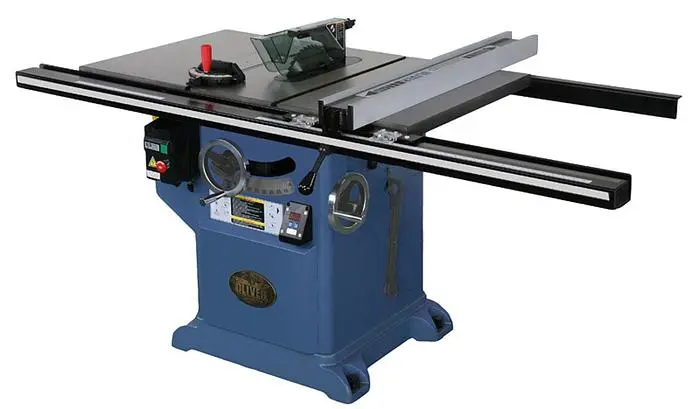

NEW OLIVER 4016.004

Large precision ground table provides a stable work surface.
Cast iron base offers a steady platform.

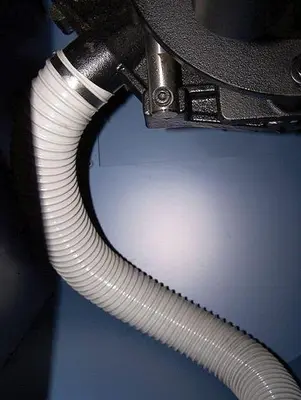

Fully enclosed cabinet and blade dust shroud for better dust management.
Precision ground 5/8” arbor.
Wide stance trunnion features a left tilt blade.
Poly V-belt drive smoothly transfers power to the blade.
Hydraulic assisted blade lift mechanism for easy movement.
Large chrome hand wheels allow easy adjustments.
Includes digital readout of blade tilt.
Riving knife splitter for added safety against kick-back.
Optimus T-square fence available in 36” rip capacity.
36” rail includes (2) cast iron extension wings.
Optional rear support table available.
Magnetic controls with emergency off switch.

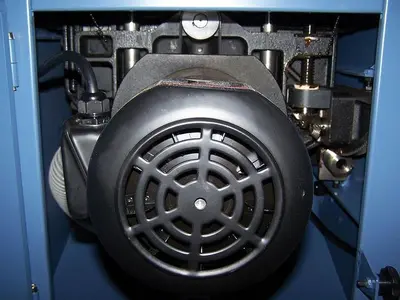

Powerful TEFC motor available in three phase.

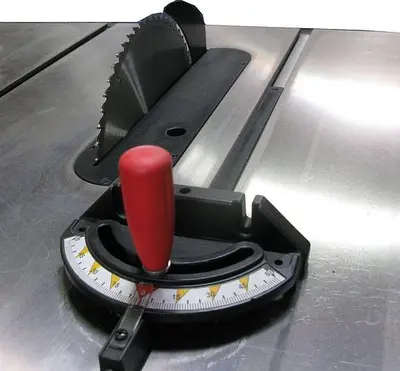

Miter gauge included.
Blade not included.
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.

Model Number: 4016.004
Ph: 3Ph
Rail Length: w/36' Rail
Stock No. (5HP, 3Ph): 4016.004
Blade Diameter: 10"
Arbor Diameter: 5/8"
Blade Tilt: Left
Arbor Speed: 3,450 RPM
Maximum Depth of Cut at 90°: 3"
Maximum Depth of Cut at 45°: 2-1/4"
Maximum Width of Dado: 13/16"
Maximum Cut to Right of Blade: 36”
Maximum Cut to Left of Blade: 12"
Dust Port Diameter: 4"
Table Dimensions w/o Extensions: 27”D x 21-1/4”W
Wing Size: 27” x 12”
Table Height: 36"
Motor 3Ph: 5HP, 3Ph, 220V/440V* Prewired 220V (15/7.5 Amp)
Overall Dimensions: 74”L x 32-½”W x 40”H
Net Weight: 480 lbs.
Gross Weight: 720 lbs.
