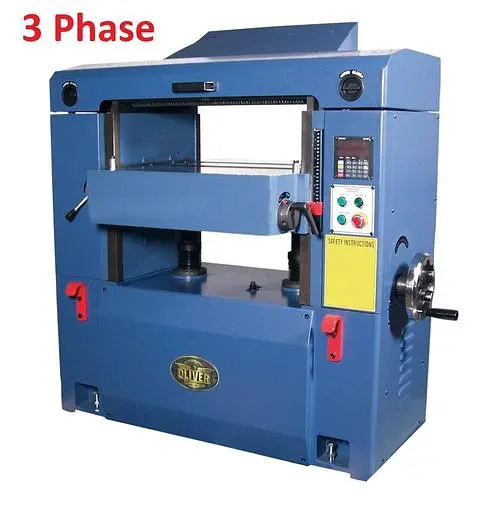

NEW OLIVER 4470.102B

Helical carbide inserts are indexed for quick changing.
Massive cast iron construction throughout allows up to a 1/4” cut.
Polished built-in table roller assists movement of rough stock.

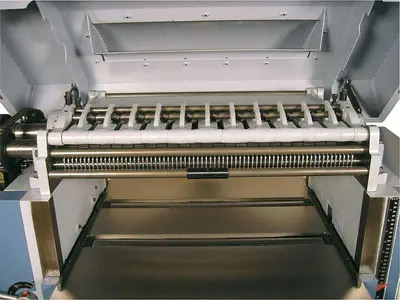

Segmented infeed roller and sectional chip breaker easily handle rough stock.
Dual outfeed rollers assist with heavy stock.
3-speed gear box provides the perfect feed rate.
Magnetic controls with emergency off switch for safer operation.

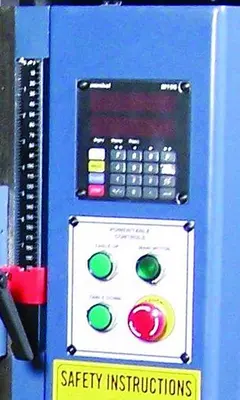

Control panel with digital readout allows precise thickness settings.
Power assisted table makes for quick, accurate, adjustments.
Hinged access to cutter head and feed rollers for quick set-up.
5” dust chute easily handles chip removal.

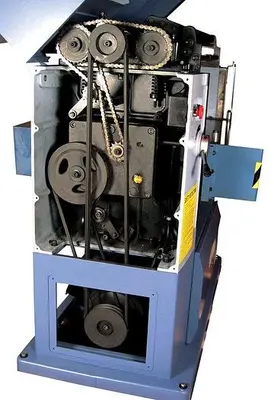

Easy access to motor, drive train, and gearbox assist in maintenance and adjustment.
Powerful TEFC motor available in three phase.
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.

Model Number: 4470.102B
CutterHead: Byrd Shelix
Ph: 3Ph
Stock No. (15HP, 3Ph, Byrd): 4470.102B
Maximum Stock Width: 25”
Maximum Depth of Cut: 1/4” for 0” – 11-3/4” and 1/8” for 11-3/4” – 25"
Maximum Stock Thickness: 9-1/4”
Minimum Stock Thickness: 1/8” Manual 15/64” Automatic
Minimum Stock Length: 10"
Dust Port Diameter: 5"
Minimum CFM Required: 900 CFM
Infeed Roller Diameter: 3"
Steel Outfeed Roller Diameter: 3" (x2)
Feed Speeds: 20, 25 and 30 FPM
Bed Rollers: 2, Adjustable
Table Size: 26” x 32”
Cutterhead Diameter: 3-3/8”
Cutterhead Speed: 4,800 RPM
Number of Knives Byrd: 125
Footprint: 47-1/2” L x 21” W
Table Support: 2-Column
Motor 3Ph: 15HP, 240V/440V* Prewired 220V (38/19 Amps)
Overall Dimensions: 46”L x 23”W x 56”H
Net Weight: 1,732 lbs.
Gross Weight: 1,850 lbs
