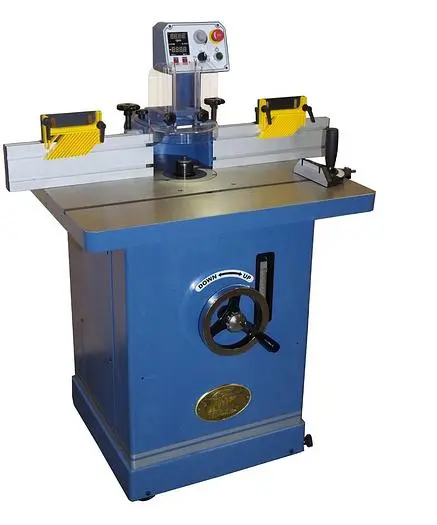

NEW OLIVER 10047VS

Variable Frequency Drive provides 5,000 to 10,000 Spindle RPM.

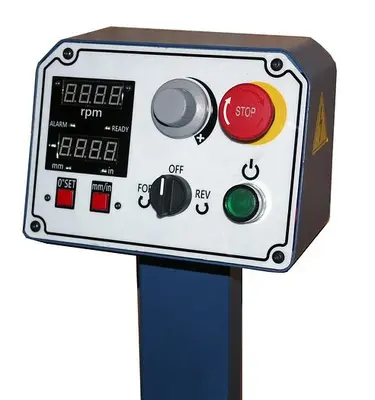

Elevated control panel with DRO, emergency stop, and speed control.
DRO measures spindle RPM and spindle height.
Large cast iron table is precision ground to provide a solid work surface.
Table features pre-drilled and threaded holes for optional power feeder.
Full cabinet stand includes wheels and locks.
1-1/4” interchangeable spindle included, other optional sizes available.
Optional router bit collets available.
Poly V-belt drive for smoother operation.
Spindle reverses for more options with each set-up.
Four inches of spindle travel allows more set-up options.
Starting pin for irregular shapes included.

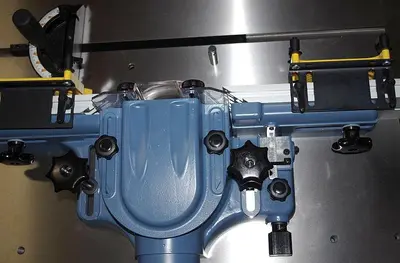

Fence is independent and includes micro adjustment.
Adjustable hold downs add to a safer operation.
Extra large handwheel for easy and quick height adjustment.
Miter gauge included.
Powerful TEFC motor to meet your needs.
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.

Model Number: 10047VS
Ph: 1Ph
Stock No. (3HP, 1Ph): 10047VS.001
Spindle Speeds: 5,000 to 10,000 RPM
Spindle Diameter: 1-1/4”
Verticle Spindle Travel: 4"
Spindle Direction: Reversible
Under Nut Capacity: 4" with 1-1/4" Spindle
Table Opening: 6-1/4”
Large Insert Opening: 4-5/16”
Small Insert Opening: 2-1/2”
Table Height: 34-3/8"
Table Size: 32” x 26”
T-Slot: 3/4" x 3/8"
Fence Size (2): 4-13/16” x 16”
Dust Port Diameter: 4"
Minimum CFM: 800
Motor 1Ph: 3HP, 220V only (8 Amp)
Net Weight: 396 lbs.
Gross Weight: 511 lbs.
