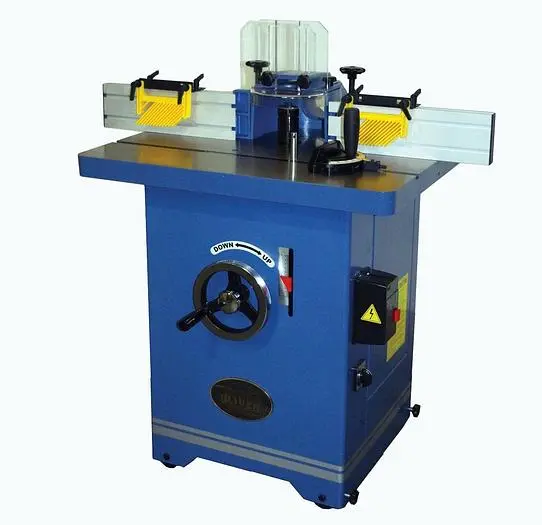

NEW OLIVER 10047.002

Large cast iron table is precision ground table to provide a solid work surface.
Table features pre-drilled and threaded holes for optional power feeder.
Full cabinet stand includes wheels and locks.
1-1/4” interchangeable spindle included, other optional sizes available.
Optional router bit collets available.
Four spindle speeds for versatility
Belt changes are quick and convenient with unique tensioner.
Poly V-belt drive for smoother operation.
Spindle reverses for more options with each set-up.
Four inches of spindle travel allows more set-up options.
Starting pin for irregular shapes included.

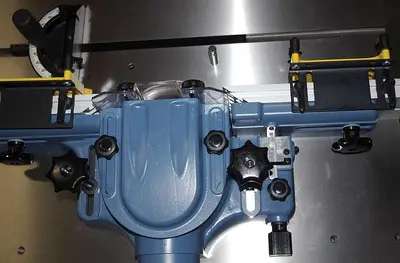

Fence is independent and includes micro adjustments.
Adjustable hold downs add to a safer operation.
Extra large handwheel for easy and quick height adjustment.
Miter gauge included.
Magnetic controls for added safety.
Powerful TEFC motor in 5HP to meet your needs. (1Ph Only)
Shipping will be calculated at checkout
*Shipping amount applies to contiguous US only. Shipments to AK, HI, and/or any special shipping needs will require additional charges which will be quoted separately after your order is placed. Please call (800) 559-5065 for additional information.

Model Number: 10047.002
Ph: 1Ph
Stock No. (5HP, 1Ph): 10047.002
Spindle Speeds: 4,000, 6,000, 8,000, 10,000 RPM
Spindle Diameter: 1-1/4”
Verticle Spindle Travel: 4"
Spindle Direction: Reversible
Under Nut Capacity: 4” with 1-1/4” Spindle
Table Opening: 6-1/4"
Large Insert Opening: 4-5/16”
Small Insert Opening: 2-1/2”
Table Height: 34-3/8”
Table Size: 32” x 26”
T-Slot: 3/4” x 3/8”
Fence Size (2): 4-13/16” x 16”
Dust Port Diameter: 4"
Minimum CFM: 800
Table Dimensions: 40” x 27”
Motor 1Ph: 5HP, 220V only (18 Amp) 1Ph Only
Net Weight: 473 lbs.
Gross Weight: 550 lbs.
